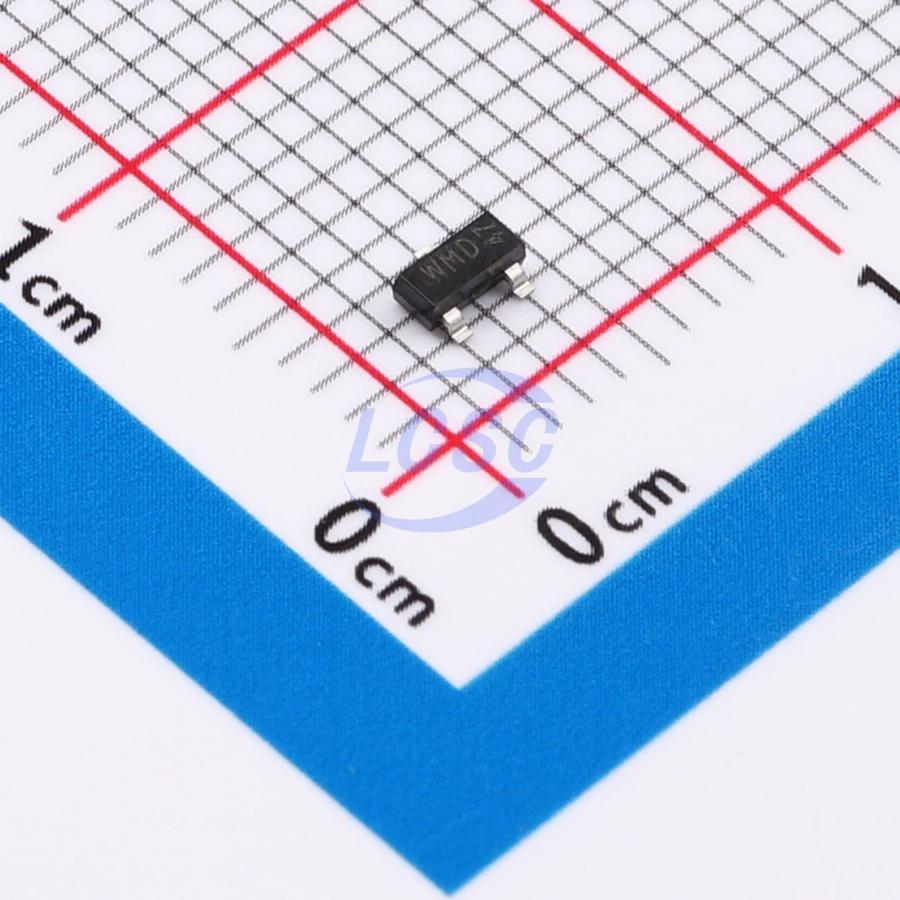

MMBZ20VCL-QR
28V 1.4A@10/1000us 40W@10/1000us 20V Unidirectional 17V TO-236AB TVS Diodes RoHS
TO-236ABROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- MMBZ20VCL-QR
- Store part #
- C20235680
- Package / case
- TO-236AB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C20235680
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.84 | ₹48.40 |
| 100+ | ₹4.72 | ₹472.00 |
| 300+ | ₹4.66 | ₹1,398.00 |
| 1,000+ | ₹4.58 | ₹4,580.00 |
10 × ₹4.84
₹48.40
excl. GST
₹57.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ20VCL-QR
₹48.40 for 10 + GST
Specifications
- Clamping Voltage
- 28V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1.4A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 40W@10/1000us
- Number of Channels
- 2
- Voltage - Breakdown
- 20V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100pA
- Reverse Stand-Off Voltage (Vrwm)
- 17V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
Unidirectional double ElectroStatic Discharge (ESD) protection diode in a common cathode configuration, encapsulated in a SOT23 (TO-236AB) small Surface-Mounted Device (SMD) plastic package. The device is designed for ESD and transient overvoltage protection of up to two signal lines.
Applications
- Computers and peripherals
- Audio and video equipment
- Cellular handsets and accessories
- Automotive electronic control units
- Portable electronics
Key features
- Unidirectional ESD protection of two lines
- Bidirectional ESD protection of one line
- Low diode capacitance: Cd ≤ 80 pF
- Rated peak pulse power: PP P M ≤ 40 W
- Ultra low leakage current: I R M ≤ 5 nA
- ESD protection up to 30 kV (contact discharge)
- IEC 61000-4-2; level 4 (ESD)
- IEC 61643-321
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMMBZ20VALT1G#C463902onsemi · SOT-23 | onsemi | SOT-23 | 170 | ₹8.36 · 170 in stock | View |
 | MMBZ20VCL,215#C551540Nexperia · TO-236AB | Nexperia | TO-236AB | 2,890 | ₹9.71 · 2,890 in stock | View |
 | MMBZ20VAL,215#C150976Nexperia · SOT-23 | Nexperia | SOT-23 | On request | ₹19.65 · 0 in stock | View |
| SZMMBZ20VALT3G#C896974onsemi · SOT-23 | onsemi | SOT-23 | On request | ₹4.52 · 0 in stock | View | |
