DIODESDatasheet (PDF)

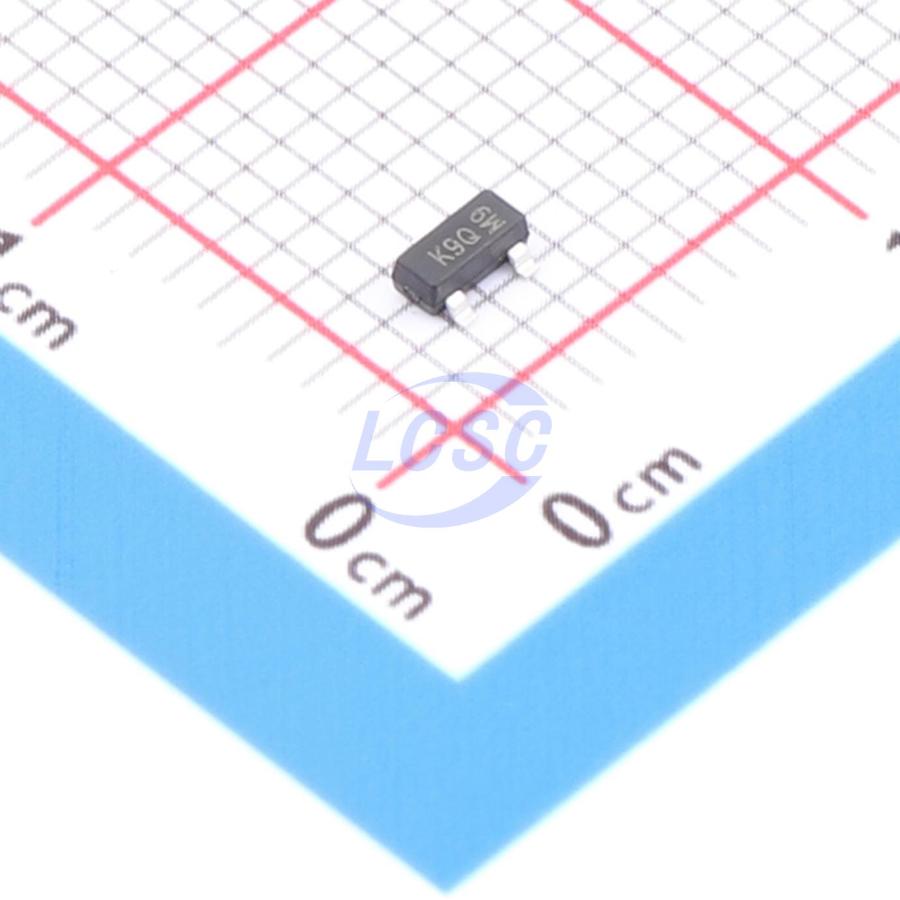

MMBZ27VALQ-13-F
40V 40W Unidirectional 22V SOT-23 TVS Diodes RoHS
SOT-23ROHS CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ27VALQ-13-F
- Store part #
- C5244568
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5244568
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.86 | ₹104.30 |
| 50+ | ₹20.37 | ₹1,018.50 |
| 150+ | ₹20.04 | ₹3,006.00 |
| 500+ | ₹19.71 | ₹9,855.00 |
5 × ₹20.86
₹104.30
excl. GST
₹123.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ27VALQ-13-F
₹104.30 for 5 + GST
Specifications
- Clamping Voltage
- 40V
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Number of Channels
- 2
- type
- TVS
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.086 g
Overview
Key features
- Dual TVS in common anode configuration
- Peak power dissipation rating of 40W (unidirectional) at 1.0ms
- Power dissipation of 225mW
- Ideal for automatic insertion
- Low leakage
- Fully lead-free and fully RoHS compliant
- Halogen and antimony free, "green" device
- MMBZ27VALQ-7-F and MMBZ27VALQ-13-F for automotive applications requiring specific change control; these parts are AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMBZ27VALFHT116#C1974077ROHM · SOT-23 | ROHM | SOT-23 | 10 | ₹39.64 · 10 in stock | View |
 | MMBZ27VALT1G#C2931141UMW · SOT-23 | UMW | SOT-23 | 1,460 | ₹4.22 · 1,460 in stock | View |
 | MMBZ27VALYFHT116#C3708423ROHM · SOT-23 | ROHM | SOT-23 | 45 | ₹114.19 · 45 in stock | View |
 | MMBZ27VALT1G#C41376onsemi · SOT-23 | onsemi | SOT-23 | 13,970 | ₹6.05 · 13,970 in stock | View |
 | MMBZ27VAL-7-F#C508226DIODES · SOT-23 | DIODES | SOT-23 | 465 | ₹14.54 · 465 in stock | View |
