TECH PUBLICDatasheet (PDF)

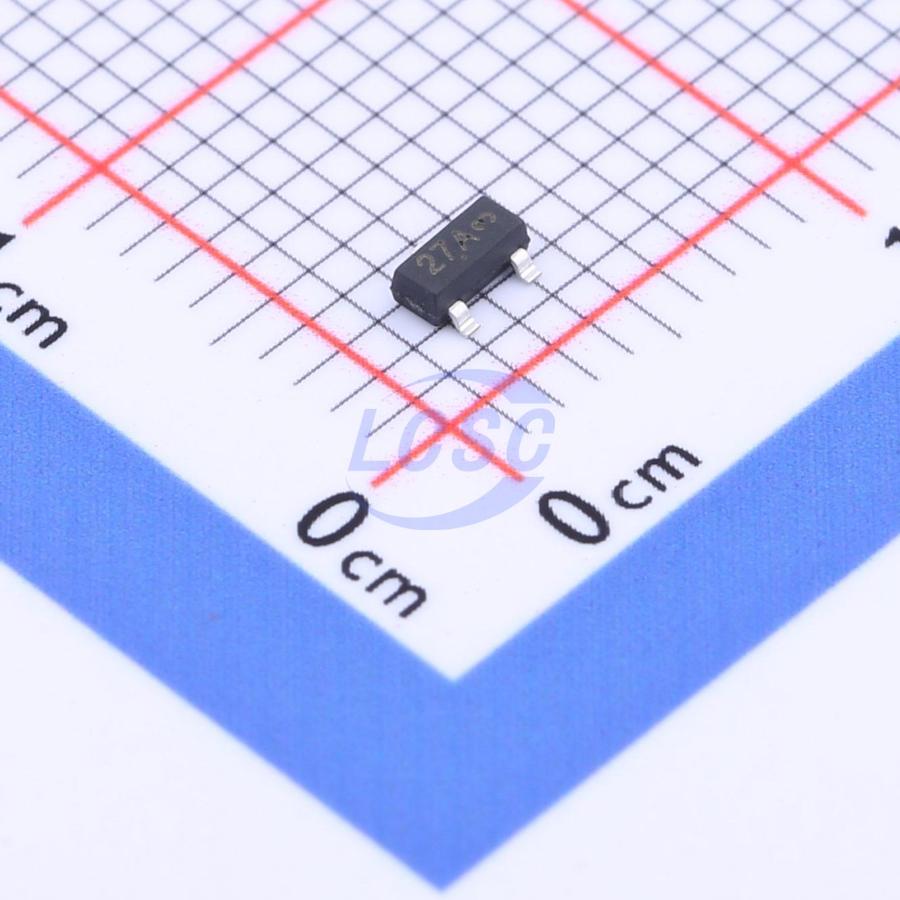

MMBZ27VALT1G
60VC Clamp 3A@8/20us Ipp SOT-23
SOT-23RoHSActive
24VWM 60VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MMBZ27VALT1G
- Store part #
- C2936999
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C2936999
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.78 | ₹75.60 |
| 200+ | ₹3.00 | ₹600.00 |
| 600+ | ₹2.58 | ₹1,548.00 |
| 3,000+ | ₹1.98 | ₹5,940.00 |
| 9,000+ | ₹1.76 | ₹15,840.00 |
| 21,000+ | ₹1.64 | ₹34,440.00 |
20 × ₹3.78
₹75.60
excl. GST
₹89.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ27VALT1G
₹75.60 for 20 + GST
Specifications
- Clamping Voltage
- 60V
- Peak Pulse Current (Ipp)
- 3A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 150W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26.7V
- type
- ESD
- Reverse Leakage Current (Ir)
- 10nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.032 g
Overview
Applications
- USB Power & Data Line Protection
- Monitors and Flat Panel Displays
- I²C Bus Protection
- Portable Instrumentation
- Set Top Box
Key features
- 150 Watts peak pulse power (tp=8/20μs)
- Transient protection for high speed data lines to IEC 61000-4-2 (ESD) ±30kV (air), ±30kV (contact) IEC61000-4-4(EFT)40A(5/50ns)
- Working voltages: 24V
- Protects one bidirectional line or two unidirectional lines
- Low operating and clamping voltages
- Solid-state silicon avalanche technology
