DIODESDatasheet (PDF)

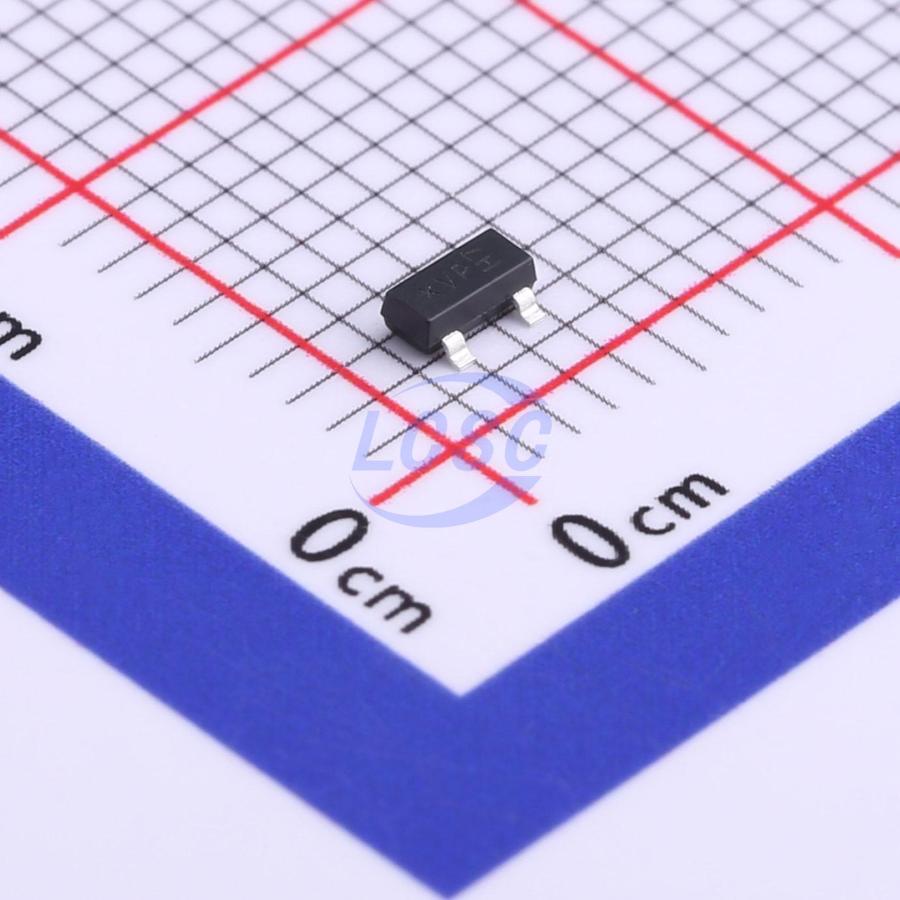

MMBZ27VCL-7-F
38VC Clamp 1A Ipp ESD DIODE SOT-23
SOT-23ROHS3 CompliantActive
ESD DIODE 22VWM 38VC SOT-23
- Manufacturer
- DIODES
- Manufacturer part #
- MMBZ27VCL-7-F
- Store part #
- C698227
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
290 in stock
#C698227
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.60 | ₹106.00 |
| 100+ | ₹8.81 | ₹881.00 |
| 300+ | ₹7.92 | ₹2,376.00 |
| 3,000+ | ₹7.25 | ₹21,750.00 |
| 6,000+ | ₹6.72 | ₹40,320.00 |
| 9,000+ | ₹6.44 | ₹57,960.00 |
10 × ₹10.60
₹106.00
excl. GST
₹125.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMBZ27VCL-7-F
₹106.00 for 10 + GST
Specifications
- Clamping Voltage
- 38V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 1A
- Peak Pulse Power Dissipation (Ppp)
- 40W
- Number of Channels
- 2
- Voltage - Breakdown
- 25.65V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 50nA
- Reverse Stand-Off Voltage (Vrwm)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Dual TVS in Common Cathode Configuration for ESD Protection
- 40 Watt Peak Power Dissipation @1.0ms (Unidirectional)
- 225mW Power Dissipation
- Ideally Suited for Automated Insertion
- Low Leakage
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- The MMBZ27VCLQ-7-F is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
