VISHAYDatasheet (PDF)

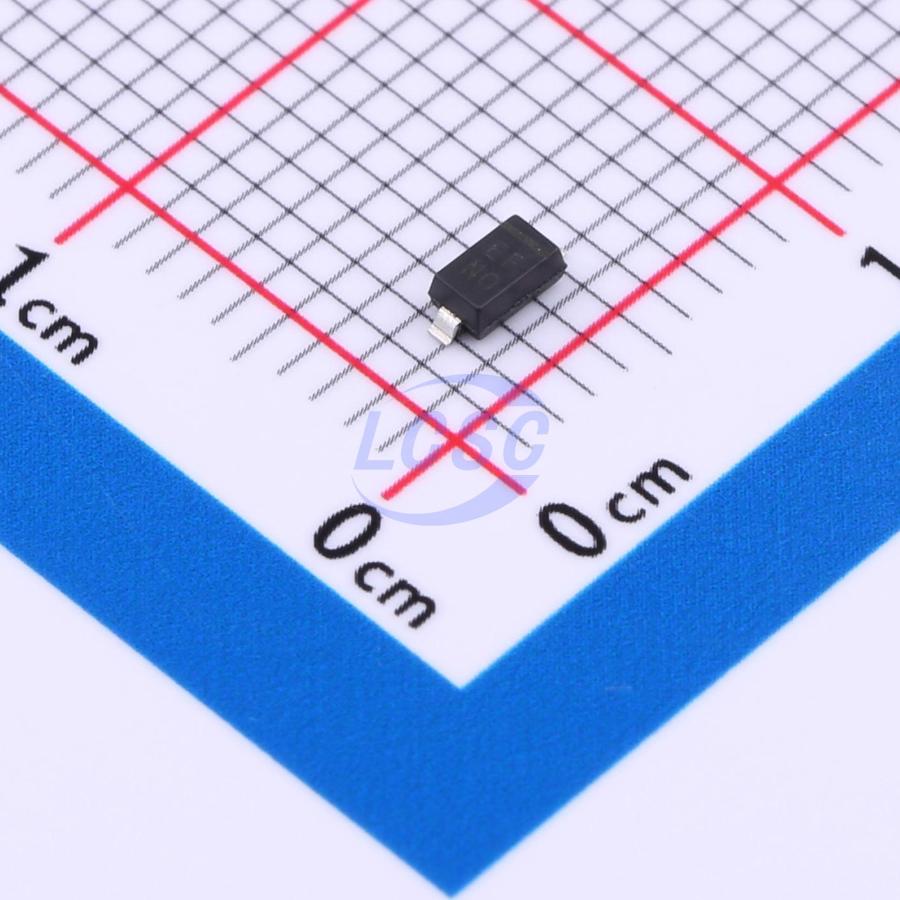

MMSZ4715-E3-08
Zener Diode Independent 36V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 500mW SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- MMSZ4715-E3-08
- Store part #
- C511511
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,260 in stock
#C511511
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.39 | ₹83.90 |
| 100+ | ₹6.54 | ₹654.00 |
| 300+ | ₹5.62 | ₹1,686.00 |
| 3,000+ | ₹4.92 | ₹14,760.00 |
| 6,000+ | ₹4.38 | ₹26,280.00 |
| 9,000+ | ₹4.10 | ₹36,900.00 |
10 × ₹8.39
₹83.90
excl. GST
₹99.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4715-E3-08
₹83.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10nA
- Zener Voltage(Range)
- 34.2V~37.8V
- Zener Voltage(Nom)
- 36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon planar Zener diodes
- Standard Zener voltage tolerance is ± 5%
- AEC-Q101 qualified available
- ESD capability according to AEC-Q101: Human body model >8 kV, Machine model >800 V
- RoHS-compliant, commercial grade
- RoHS-compliant, AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5258BT1G#C193869onsemi · SOD-123 | onsemi | SOD-123 | 12,240 | ₹6.02 · 12,240 in stock | View |
 | MMSZ36T1G#C236212onsemi · SOD-123 | onsemi | SOD-123 | 80 | ₹4.64 · 80 in stock | View |
 | BZT52C36Q#C2857099JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 500 | ₹2.42 · 500 in stock | View |
 | LMSZ5258BT1G#C417306LRC · SOD-123 | LRC | SOD-123 | 150 | ₹2.86 · 150 in stock | View |
 | MMSZ4715T1G#C464220onsemi · SOD-123 | onsemi | SOD-123 | 1,210 | ₹7.95 · 1,210 in stock | View |
