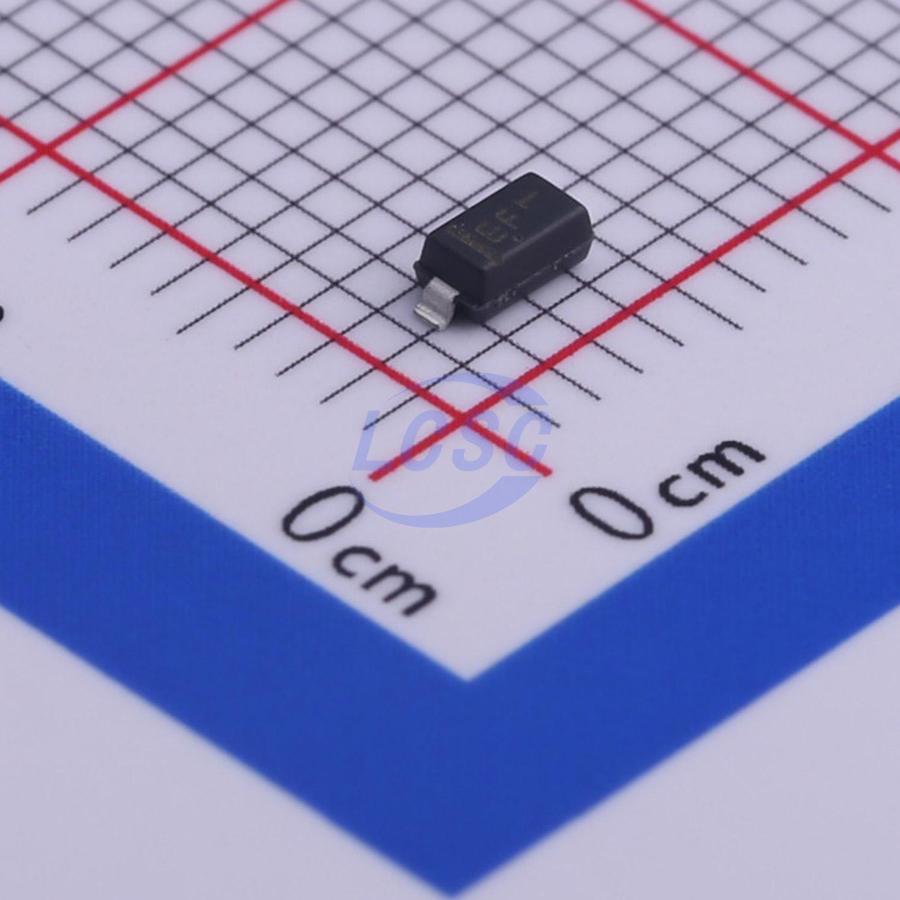

MMSZ4715T1G
Zener Diode Independent 36V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 36V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ4715T1G
- Store part #
- C464220
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C464220
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.95 | ₹79.50 |
| 100+ | ₹6.36 | ₹636.00 |
| 300+ | ₹5.57 | ₹1,671.00 |
| 3,000+ | ₹4.97 | ₹14,910.00 |
| 6,000+ | ₹4.50 | ₹27,000.00 |
| 9,000+ | ₹4.26 | ₹38,340.00 |
10 × ₹7.95
₹79.50
excl. GST
₹93.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ4715T1G
₹79.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 10nA@27.3V
- Impedance(Zzt)
- 40Ω
- Zener Voltage(Range)
- 34.2V~37.8V
- Zener Voltage(Nom)
- 36V
- Impedance(Zzk)
- 376Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ4715#C3031934JSCJ · SOD-123 | JSCJ | SOD-123 | 2,980 | ₹4.31 · 2,980 in stock | View |
 | MMSZ4715-E3-08#C511511VISHAY · SOD-123 | VISHAY | SOD-123 | 1,260 | ₹8.39 · 1,260 in stock | View |
 | MM1Z36BW#C2856912JSMSEMI · SOD-123W | JSMSEMI | SOD-123W | 600 | ₹2.32 · 600 in stock | View |
 | MM1Z36B#C438319Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 1,050 | ₹2.28 · 1,050 in stock | View |
 | MM1Z36BW#C4749073Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 250 | ₹2.46 · 250 in stock | View |
