DIODESDatasheet (PDF)

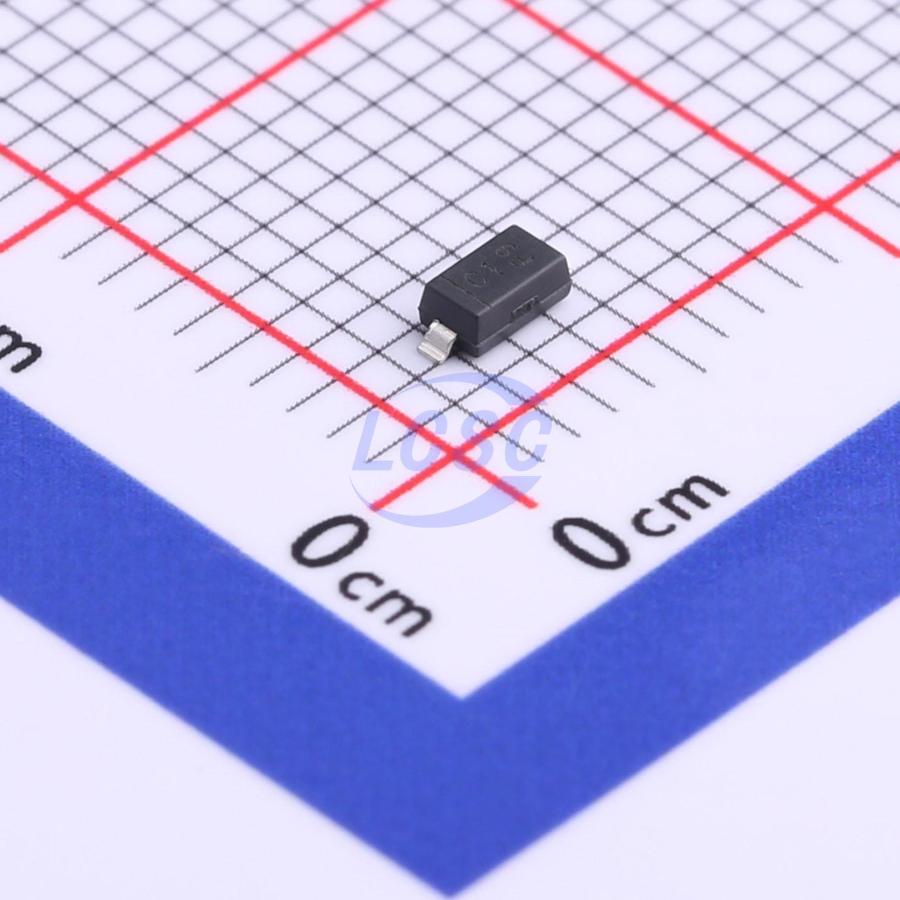

MMSZ5221B-7-F
Zener Diode 2.4V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 2.4V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5221B-7-F
- Store part #
- C780865
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C780865
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.83 | ₹116.60 |
| 200+ | ₹4.78 | ₹956.00 |
| 600+ | ₹4.19 | ₹2,514.00 |
| 3,000+ | ₹3.84 | ₹11,520.00 |
| 9,000+ | ₹3.53 | ₹31,770.00 |
| 21,000+ | ₹3.37 | ₹70,770.00 |
20 × ₹5.83
₹116.60
excl. GST
₹137.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5221B-7-F
₹116.60 for 20 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 100uA@1V
- Impedance(Zzt)
- 30Ω
- Zener Voltage(Range)
- 2.28V~2.52V
- Zener Voltage(Nom)
- 2.4V
- Impedance(Zzk)
- 1.2kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.039 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5221B#C5244944DIODES · SOD-123 | DIODES | SOD-123 | 30 | ₹5.98 · 30 in stock | View |
 | MMSZ5221BQ-7-F#C6674046DIODES · SOD-123 | DIODES | SOD-123 | 70 | ₹6.81 · 70 in stock | View |
 | LMSZ5221BT1G#C131757LRC · SOD-123 | LRC | SOD-123 | 2,680 | ₹5.31 · 2,680 in stock | View |
 | MMSZ5221B_R1_00001#C268588PANJIT · SOD-123 | PANJIT | SOD-123 | 3,320 | ₹4.29 · 3,320 in stock | View |
 | MMSZ5221BW#C7528242Jingdao Microelectronics · SOD-123W | Jingdao Microelectronics | SOD-123W | 2,450 | ₹2.13 · 2,450 in stock | View |
