DIODESDatasheet (PDF)

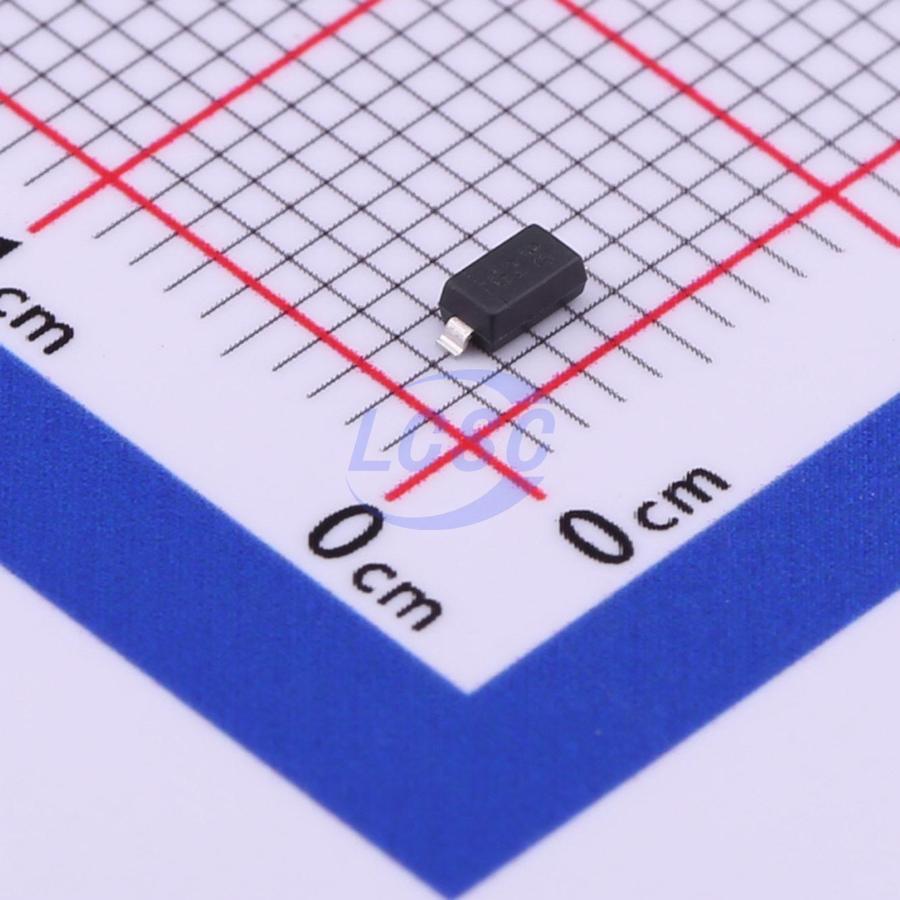

MMSZ5227B-7-F
Zener Diode Independent 3.6V 370mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 3.6V 370mW SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- MMSZ5227B-7-F
- Store part #
- C560274
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,460 in stock
#C560274
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.75 | ₹67.50 |
| 100+ | ₹5.54 | ₹554.00 |
| 300+ | ₹4.93 | ₹1,479.00 |
| 3,000+ | ₹4.48 | ₹13,440.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.94 | ₹35,460.00 |
10 × ₹6.75
₹67.50
excl. GST
₹79.65 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ5227B-7-F
₹67.50 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 370mW
- Reverse Leakage Current (Ir)
- 15uA@1V
- Impedance(Zzt)
- 24Ω
- Zener Voltage(Range)
- 3.42V~3.78V
- Zener Voltage(Nom)
- 3.6V
- Impedance(Zzk)
- 1.7kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
Key features
- 500mW Power Dissipation
- General Purpose, Medium Current
- Ideally Suited for Automated Assembly Processes
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MMSZ5227B#C21550JSCJ · SOD-123 | JSCJ | SOD-123 | 3,200 | ₹3.39 · 3,200 in stock | View |
 | LMSZ5227BT1G#C131753LRC · SOD-123 | LRC | SOD-123 | 380 | ₹2.71 · 380 in stock | View |
 | MMSZ5227B_R1_00001#C268589PANJIT · SOD-123 | PANJIT | SOD-123 | 3,660 | ₹5.68 · 3,660 in stock | View |
 | MMSZ5227BT1G-TP#C46472939TECH PUBLIC · SOD-123 | TECH PUBLIC | SOD-123 | 2,900 | ₹1.20 · 2,900 in stock | View |
 | SZMMSZ5227BT1G#C513072onsemi · SOD-123 | onsemi | SOD-123 | 80 | ₹19.82 · 80 in stock | View |
