MMSZ56T1G

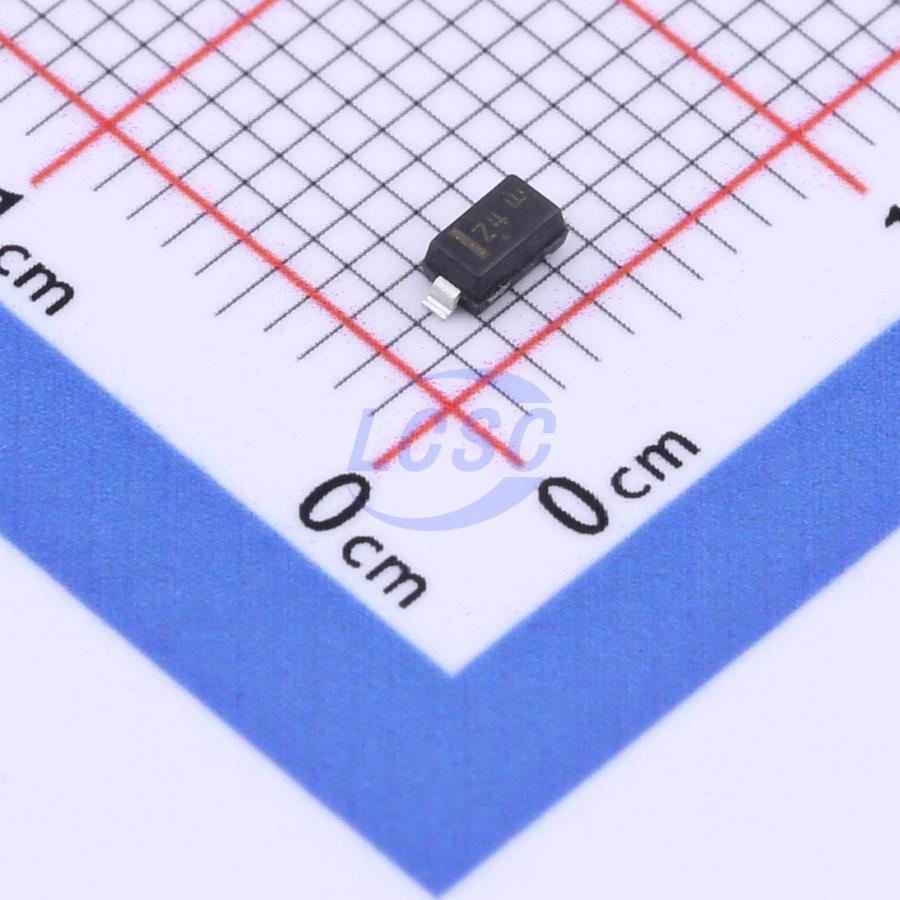

Zener Diode 56V 500mW Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE ZENER 56V 500mW SOD-123
- Manufacturer
- onsemi
- Manufacturer part #
- MMSZ56T1G
- Store part #
- C463823
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
460 in stock
#C463823
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.10 | ₹61.00 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 3,000+ | ₹3.81 | ₹11,430.00 |
| 6,000+ | ₹3.45 | ₹20,700.00 |
| 9,000+ | ₹3.27 | ₹29,430.00 |
10 × ₹6.10
₹61.00
excl. GST
₹71.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MMSZ56T1G
₹61.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@39.2V
- Impedance(Zzt)
- 200Ω
- Zener Voltage(Range)
- 53.2V~58.8V
- Zener Voltage(Nom)
- 56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD- 123 package. These devices provide a convenient alternative to the leadless 34- package style.
Key features
- 500 mW Rating on FR- 4 or FR- 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC- Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZMMSZ56T1G#C894707onsemi · SOD-123 | onsemi | SOD-123 | 660 | ₹33.26 · 660 in stock | View |
 | BZT52C56#C7427986NH · SOD-123 | NH | SOD-123 | 250 | ₹2.25 · 250 in stock | View |
 | LMSZ5263BT1G#C2936720LRC · SOD-123 | LRC | SOD-123 | 2,990 | ₹5.79 · 2,990 in stock | View |
 | MM1Z56#C169490Jingdao Microelectronics · SOD-123 | Jingdao Microelectronics | SOD-123 | 550 | ₹1.92 · 550 in stock | View |
| MM1Z56#C22376104Wild Goose · SOD-123 | Wild Goose | SOD-123 | 2,050 | ₹1.47 · 2,050 in stock | View | |
