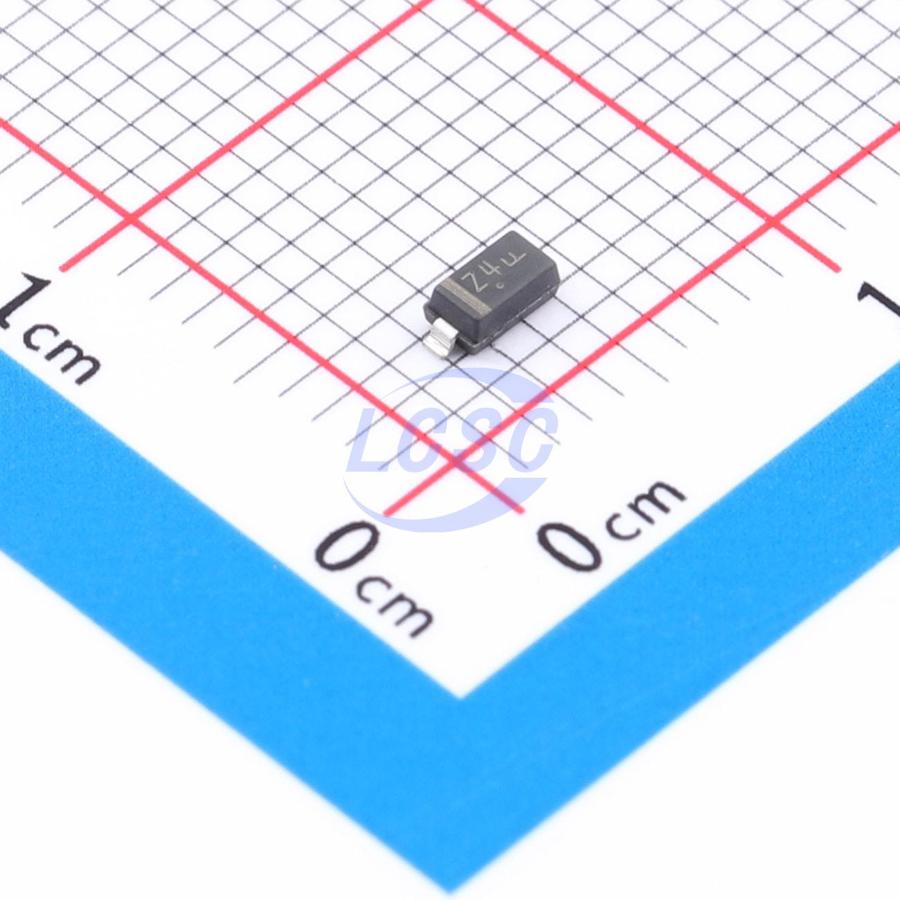

SZMMSZ56T1G
1 Independent 53.2V~58.8V 56V SOD-123 Single Zener Diodes RoHS
SOD-123ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- SZMMSZ56T1G
- Store part #
- C894707
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
660 in stock
#C894707
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.26 | ₹166.30 |
| 50+ | ₹26.29 | ₹1,314.50 |
| 150+ | ₹23.31 | ₹3,496.50 |
| 500+ | ₹19.59 | ₹9,795.00 |
| 3,000+ | ₹17.93 | ₹53,790.00 |
| 6,000+ | ₹16.93 | ₹1,01,580.00 |
5 × ₹33.26
₹166.30
excl. GST
₹196.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SZMMSZ56T1G
₹166.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA@39.2V
- Impedance(Zzt)
- 200Ω
- Zener Voltage(Range)
- 53.2V~58.8V
- Zener Voltage(Nom)
- 56V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Three complete series of Zener diodes are offered in the convenient, surface mount plastic SOD - 123 package. These devices provide a convenient alternative to the leadless 34 - package style.
Key features
- 500 mW Rating on FR - 4 or FR - 5 Board
- Wide Zener Reverse Voltage Range - 2.4 V to 56 V
- Package Designed for Optimal Automated Board Assembly
- Small Package Size for High Density Applications
- ESD Rating of Class 3 (> 16 kV) per Human Body Model
- AEC - Q101 Qualified and PPAP Capable
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- Pb - Free Packages are Available
