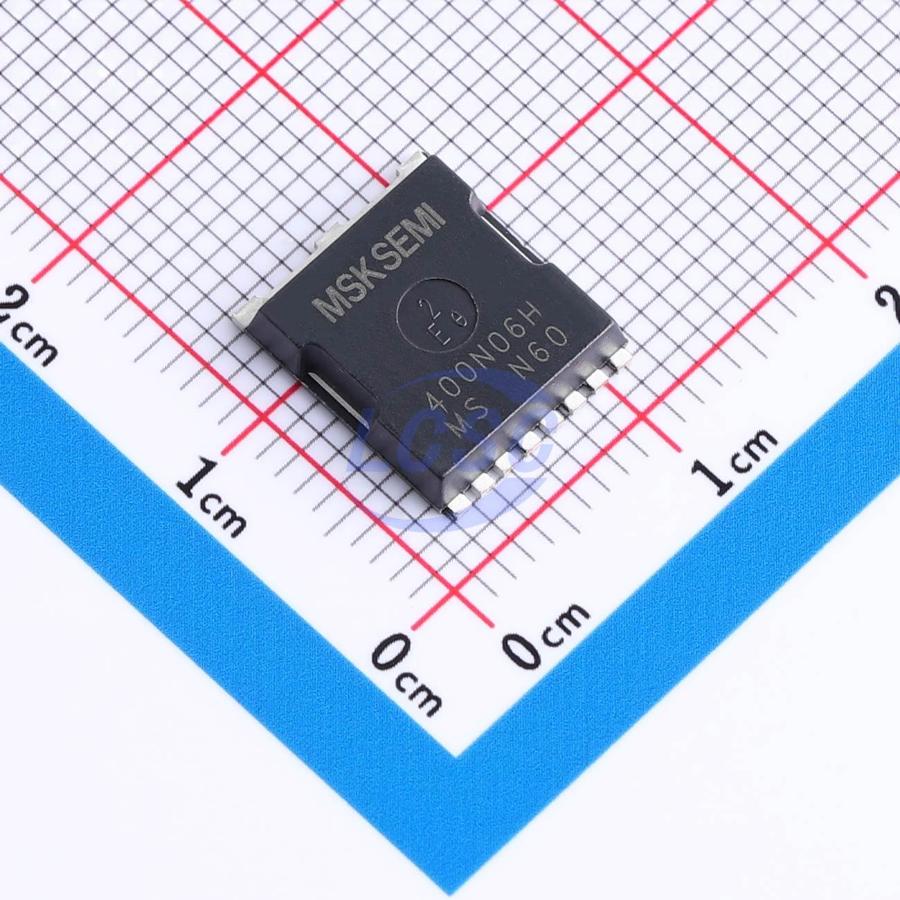

MSKSEMI

MS400N06HTL

455W 60V 400A 1.2mΩ@10V 1 N-channel N-Channel TOLL-8 Single FETs, MOSFETs

TOLL-8RoHSActive

Manufacturer: MSKSEMI
Manufacturer part #: MS400N06HTL
Store part #: C51927915
Package / case: TOLL-8
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,498 in stock

#C51927915

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹162.33	₹162.33
10+	₹135.08	₹1,350.80
30+	₹120.21	₹3,606.30
100+	₹103.47	₹10,347.00
500+	₹95.84	₹47,920.00
1,000+	₹92.53	₹92,530.00

Quantity (min 1)

1 × ₹162.33

₹162.33

excl. GST

₹191.55 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 8,000 per reel

MS400N06HTL

₹162.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 2.24nF
Ciss-Input Capacitance: 5.93nF
Pd - Power Dissipation: 455W
Drain to Source Voltage: 60V
Configuration: Standalone
Operating Temperature: -55℃~+150℃
Current - Continuous Drain(Id): 400A
Reverse Transfer Capacitance (Crss): 85pF
RDS(on): 1.2mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 98nC
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.9V
Type: N-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 8,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.093 g

Overview

These N-channel enhancement-mode power MOSFETs utilize trench SGT technology. This advanced technology is specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideal for high-efficiency, fast-switching applications.
