MICROCHIPDatasheet (PDF)

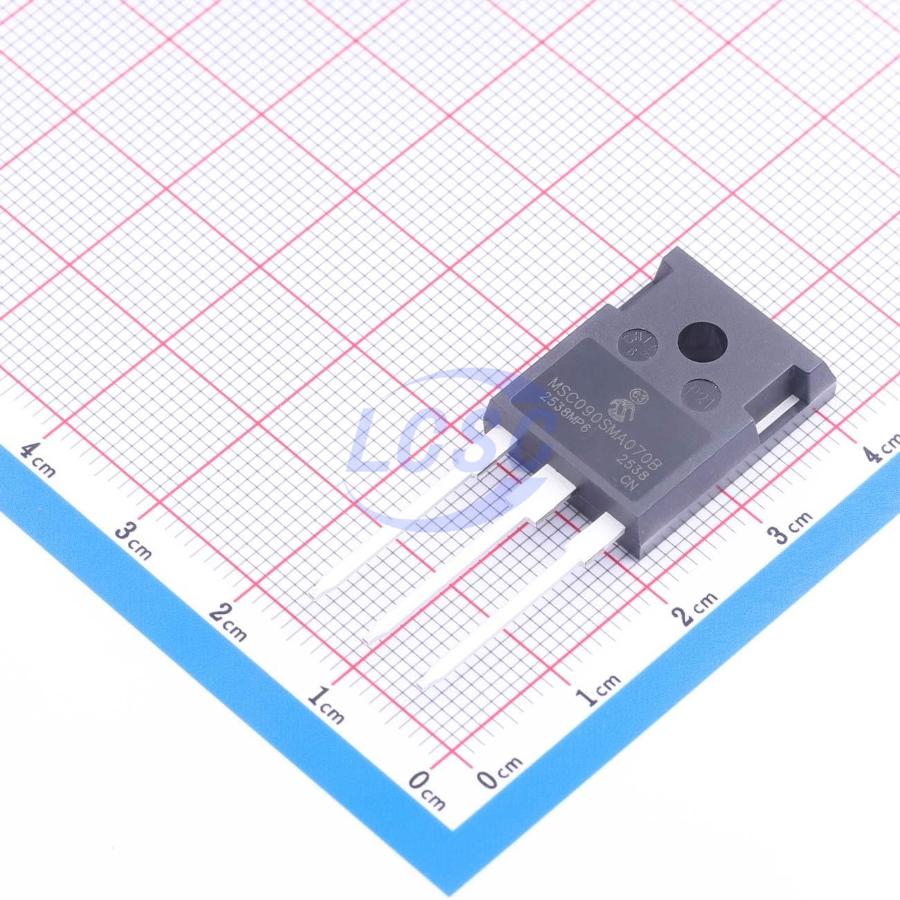

MSC090SMA070B
700V 28A 90W 108mΩ 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MSC090SMA070B
- Store part #
- C3290733
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3290733
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,054.50 | ₹1,054.50 |
| 10+ | ₹1,029.53 | ₹10,295.30 |
| 30+ | ₹1,012.95 | ₹30,388.50 |
| 90+ | ₹996.18 | ₹89,656.20 |
1 × ₹1,054.50
₹1,054.50
excl. GST
₹1,244.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
MSC090SMA070B
₹1,054.50 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 700V
- Current - Continuous Drain(Id)
- 28A
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 785pF
- Pd - Power Dissipation
- 90W
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 108mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 38nC
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.84 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCES090P100T#C54425841NCE · TO-247-3L | NCE | TO-247-3L | 333 | ₹143.32 · 333 in stock | View |
 | SP25N120CTF#C22466832Siliup · TO-247 | Siliup | TO-247 | 111 | ₹381.37 · 111 in stock | View |
 | GC3M0065090D#C7435034SUPSiC · TO247-3 | SUPSiC | TO247-3 | 119 | ₹707.29 · 119 in stock | View |
 | G3R60MT07D#C25836777Navitas · TO-247-3 | Navitas | TO-247-3 | 19 | ₹1,097.42 · 19 in stock | View |
 | BCW120N40M2#C51346558Bestirpower · TO-247 | Bestirpower | TO-247 | 65 | ₹346.69 · 65 in stock | View |
