MSKSEMIDatasheet (PDF)

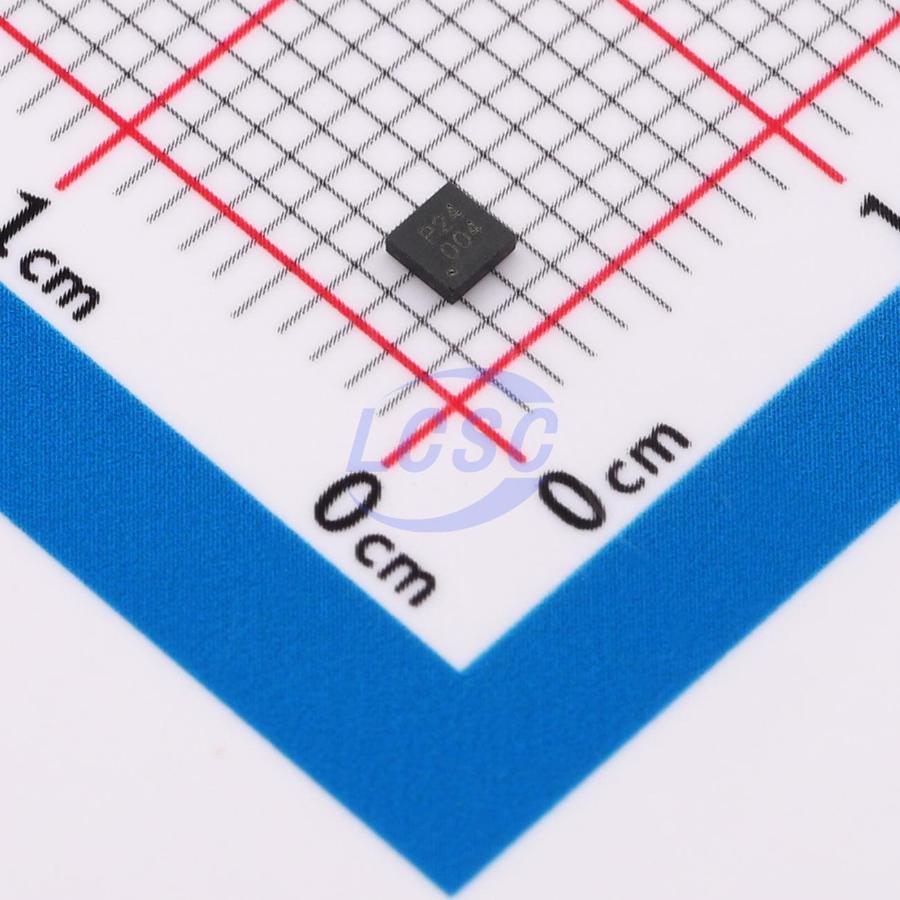

MSESD56161D24
45V 200A@8/20us 9kW@8/20us 30V 24V DFN2020-3L TVS Diodes
DFN2020-3LRoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSESD56161D24
- Store part #
- C51927933
- Package / case
- DFN2020-3L
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C51927933
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹12.16 | ₹121.60 |
| 100+ | ₹10.08 | ₹1,008.00 |
| 300+ | ₹9.04 | ₹2,712.00 |
| 3,000+ | ₹6.17 | ₹18,510.00 |
| 6,000+ | ₹5.54 | ₹33,240.00 |
| 9,000+ | ₹5.23 | ₹47,070.00 |
10 × ₹12.16
₹121.60
excl. GST
₹143.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSESD56161D24
₹121.60 for 10 + GST
Specifications
- Clamping Voltage
- 45V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 200A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 9kW@8/20us
- Voltage - Breakdown
- 30V
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
Applications
- Power Management - Industrial Applications - Power Protection
Key features
- 3-pin leadless package
- Junction capacitance (max: 1400pF)
- Peak pulse current (8/20μs) max: 200A
- IEC61000-4-2 (ESD) ±30kV (air), ±30kV (contact)
- Low clamping voltage
- Low leakage current
- Operating voltage: 24V
- RoHS compliant
