MSKSEMIDatasheet (PDF)

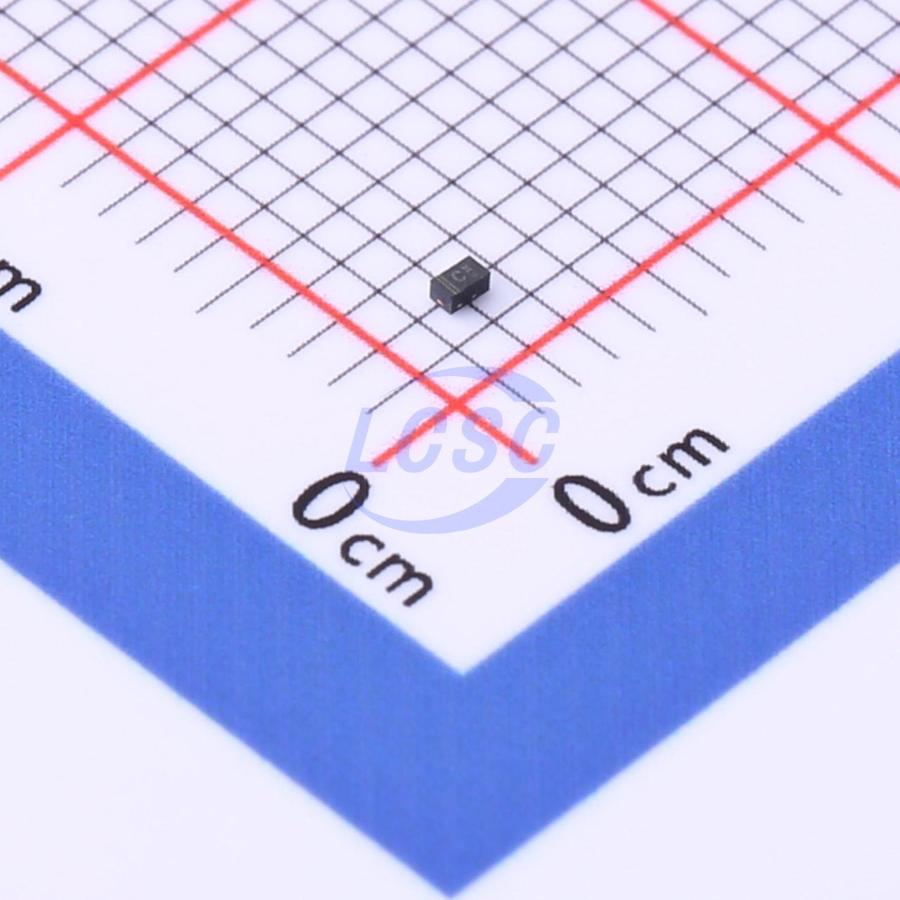

MSESDAVLC6V1-1BM2
12.5VC Clamp 5.5A Ipp ESD DIODE SOD-882
SOD-882RoHSActive
ESD DIODE 6VWM 12.5VC SOD-882
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSESDAVLC6V1-1BM2
- Store part #
- C2847044
- Package / case
- SOD-882
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,260 in stock
#C2847044
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹11.70 | ₹117.00 |
| 100+ | ₹9.60 | ₹960.00 |
| 300+ | ₹8.56 | ₹2,568.00 |
| 1,000+ | ₹7.78 | ₹7,780.00 |
| 5,000+ | ₹5.56 | ₹27,800.00 |
| 10,000+ | ₹5.24 | ₹52,400.00 |
10 × ₹11.70
₹117.00
excl. GST
₹138.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MSESDAVLC6V1-1BM2
₹117.00 for 10 + GST
Specifications
- Clamping Voltage
- 12.5V
- Peak Pulse Current (Ipp)
- 5.5A
- Peak Pulse Power Dissipation (Ppp)
- 300mW
- Voltage - Breakdown
- 8V
- type
- ESD
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.01 g
Overview
Applications
- Cellular Handsets & Accessories
- Personal Digital Assistants (PDAs)
- Notebooks & Handhelds
- Portable Instrumentation
- Digital Cameras
- Peripherals
- MP3 Players
Key features
- Small Body Outline Dimensions: nom 0.039"×0.024" (1.0×0.6 mm)
- Low Body Height: nom 0.019" (0.5 mm)
- Low Capacitance 8 pF
- Low Clamping Voltage
- Reverse Working (Stand-off) Voltage: 6 V
- Low Leakage
- Response Time is Typically < 1 ns
- IEC61000-4-2 Level 4 ESD Protection
- This is a Pb-Free Device
