MSKSEMIDatasheet (PDF)

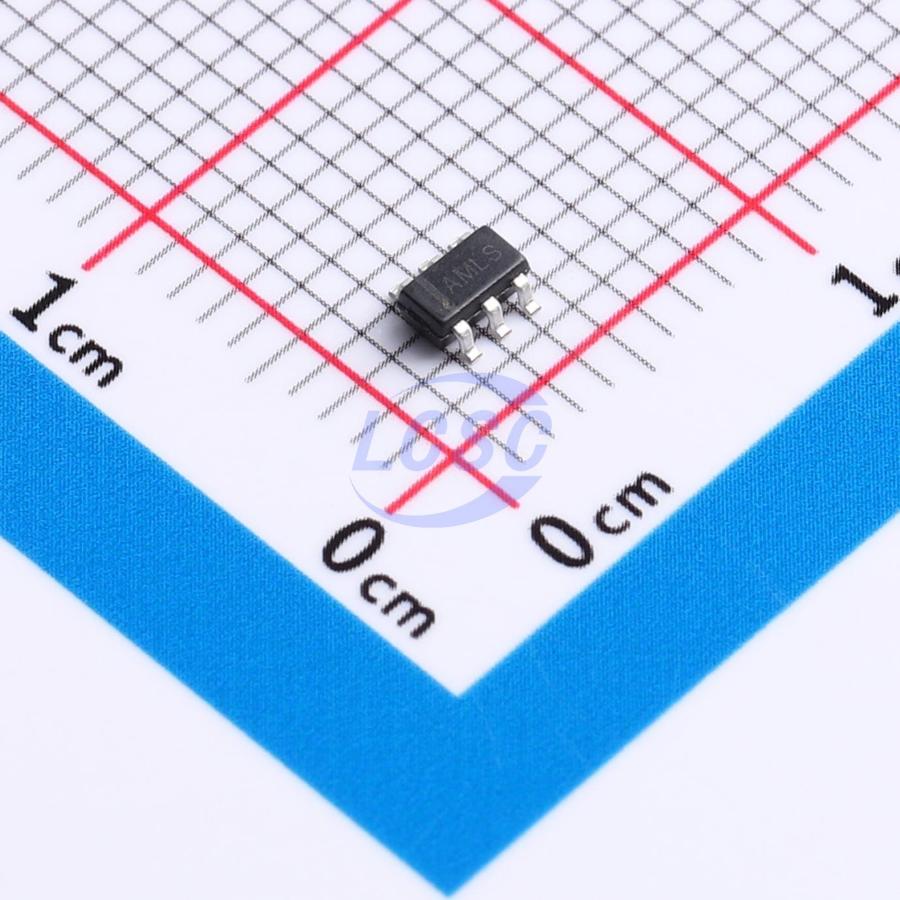

MSMP2451DJ-LF-Z
2MHz Step-down type Adjustable 600mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSMP2451DJ-LF-Z
- Store part #
- C49375219
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
720 in stock
#C49375219
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.99 | ₹174.95 |
| 50+ | ₹27.68 | ₹1,384.00 |
| 150+ | ₹24.40 | ₹3,660.00 |
| 500+ | ₹20.48 | ₹10,240.00 |
| 3,000+ | ₹18.73 | ₹56,190.00 |
| 6,000+ | ₹17.69 | ₹1,06,140.00 |
5 × ₹34.99
₹174.95
excl. GST
₹206.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSMP2451DJ-LF-Z
₹174.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 2MHz
- Number of Outputs
- 1
- Function
- Step-down type
- Features
- Cycle-by-cycle current limiting;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 600mA
- Quiescent Current
- 700uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
MSMP2451DJ-LF-Z is a monolithic step-down switching mode converter with an integrated power MOSFET. The device delivers up to 600mA output current over a wide input supply voltage range, with excellent load and line regulation. Under light load conditions, the regulator operates at reduced frequency to maintain high efficiency and minimize output ripple. The minimum input voltage is as low as 4.5V and the maximum is 60V, with the ability to withstand higher transient voltages. Fault protection features include cycle-by-cycle current limiting and thermal shutdown. The MSMP2451DJ-LF-Z requires very few common external components and is available in a SOT23-6 package.
Applications
- Energy meters
- Distributed power systems
- Battery chargers
- Pre-regulators for linear regulators
- WLED drivers
Key features
- 4.5V to 60V wide input voltage range
- 600mA continuous output current
- 2MHz switching frequency
- Built-in overcurrent limiting
- Internal soft-start
- 900mΩ low RDS(ON) internal power MOSFET
- Output voltage adjustable from 0.795V
- Integrated internal compensation
- Thermal shutdown protection
- Short-circuit protection
- SOT-23-6 package
- -40°C to +85°C operating temperature range
