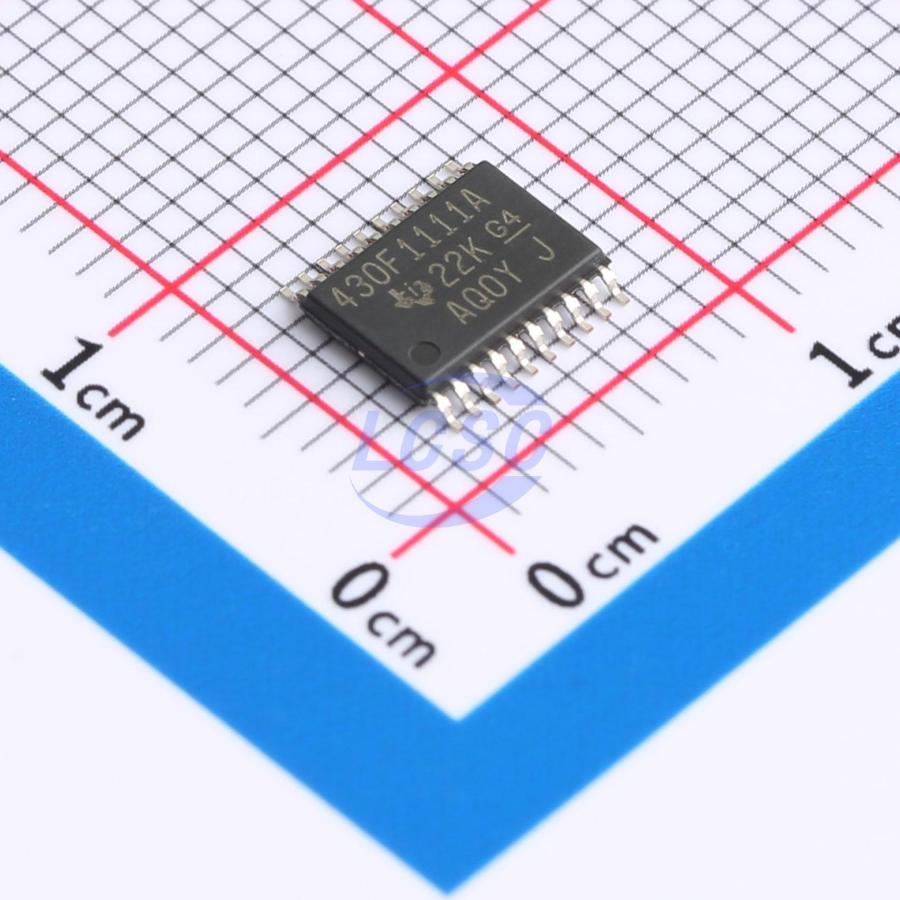

MSP430F1111AIPWR

The MSP430 family of ultralow-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs. The MSP430x11x1(A) series is an ultralow-power mixed signal microcontroller with a built-in 16-bit timer, versatile analog comparator and fourteen I/O pins. Typical applications include sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system. Stand alone radio frequency (RF) sensor front end is another area of application. The I/O port inputs provide single slope A/D conversion capability on resistive sensors.

Applications

• Sensor systems that capture analog signals, convert them to digital values, and then process the data for display or for transmission to a host system
• Stand alone radio frequency (RF) sensor front end

Key features

• Low Supply Voltage Range 1.8 V to 3.6 V
• Ultralow Power Consumption:
• Active Mode: 160 μA at 1 MHz, 2.2 V
• Standby Mode: 0.7 μA
• Off Mode (RAM Retention): 0.1 μA
• Wake-Up From Standby Mode in Less Than 6 μs
• 16-Bit RISC Architecture, 125 ns Instruction Cycle Time
• Basic Clock Module Configurations:
• Various Internal Resistors
• Single External Resistor
• 32-kHz Crystal
• High-Frequency Crystal
• Resonator
• External Clock Source
• 16-Bit Timer_A With Three Capture/Compare Registers
• On-Chip Comparator for Analog Signal Compare Function or Slope Analog-to-Digital (A/D) Conversion
• Serial Onboard Programming, No External Programming Voltage Needed
• Programmable Code Protection by Security Fuse
