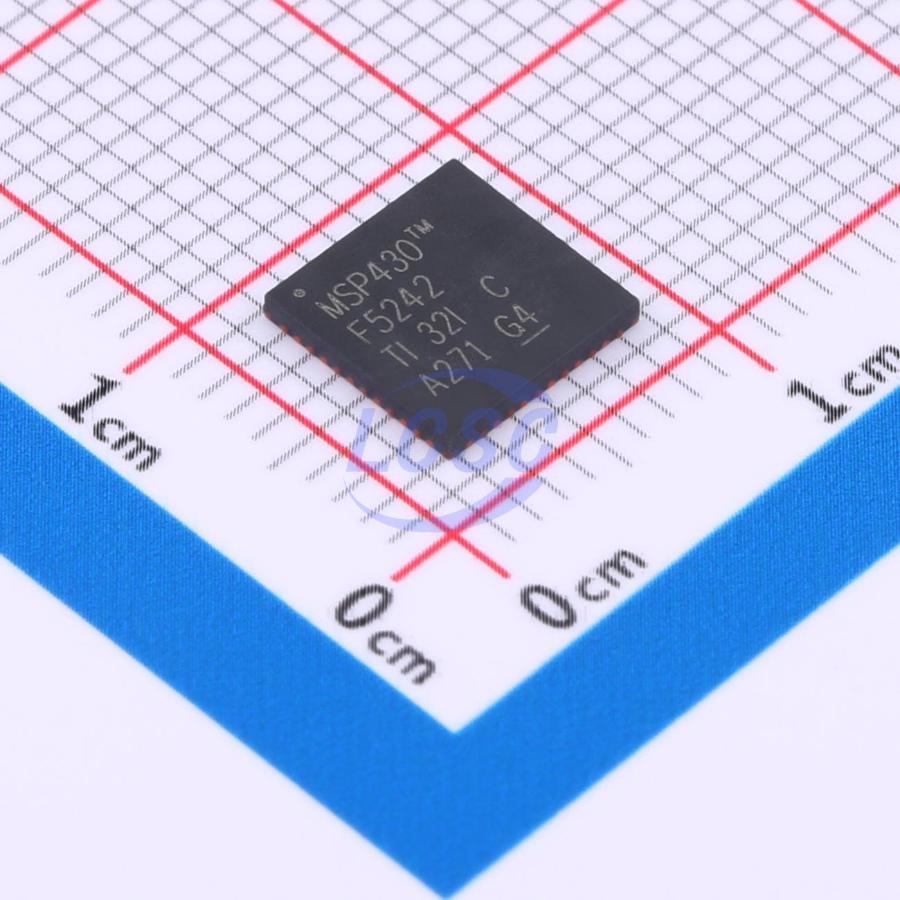

MSP430F5242IRGZR

TI's MSP series of ultra-low-power microcontrollers comes in a wide variety. Each member device is equipped with different peripheral sets to meet the needs of various applications. This architecture, when used in conjunction with multiple low-power modes, is the optimal choice for extending the battery life of portable measurement applications. The device features a powerful 16-bit RISC CPU that uses 16-bit registers and a constant generator to achieve the highest coding efficiency. This digitally controlled oscillator (DCO) enables the device to wake up from a low-power mode to an active mode within 3.5µs (typical). The MSP430F524x series belongs to microcontrollers and is equipped with four 16-bit timers, a high-performance 10-bit ADC, two USCI, a hardware multiplier, DMA, a comparator, and an RTC module with an alarm function. The MSP430F523x series of microcontrollers includes all the peripherals of the MSP430F524x series except the ADC.

Applications

• Analog sensor systems
• Digital sensor systems
• Data loggers
• General-purpose applications

Key features

• Supply voltage range: 3.6V to 1.8V
• Ultra-low power consumption
• Active Mode (AM): All system clocks active at 8MHz, 3.0V — 290µA/MHz (typical) for Flash program execution; 150µA/MHz (typical) for RAM program execution at 8MHz, 3.0V
• Standby Mode (LPM3): RTC with crystal, watchdog, and power monitor available; full RAM retention, fast wake-up: 1.9µA at 2.2V, 2.1µA at 3.0V (typical)
• VLO, general-purpose counter, watchdog, and power monitor available; full RAM retention, fast wake-up: 1.4µA at 3.0V (typical)
• Off Mode (LPM4): Full RAM retention, power monitor available, fast wake-up: 1.1µA at 3.0V (typical)
• Shutdown Mode (LPM4.5): 0.18µA at 3.0V (typical)
• Wake-up from standby mode in 3.5µs (typical)
• 16-bit RISC architecture with extended memory, system clock up to 25MHz
• Flexible power management system
• Integrated programmable LDO
• Supply voltage supervisory, monitoring, and brownout
• Unified clock system
• FLL control loop for frequency stabilization
• Low-power low-frequency internal clock source (VLO)
• Low-frequency trimmed internal reference source (REFO)
• 32kHz watch crystal (XT1)
• High-frequency crystal up to 32MHz (XT2)
• 16-bit Timer_A (TA0) with 5 capture/compare registers
• 16-bit Timer_A (TA1) with 3 capture/compare registers
• 16-bit Timer_A (TA2) with 3 capture/compare registers
• 16-bit Timer_B (TB0) with 7 capture/compare shadow registers
• Two USCI modules
• USCI_A0 and USCI_A1 each support:
• Enhanced UART with automatic baud rate detection
• IrDA encoder and decoder
• SPI
• USCI_B0 and USCI_B1 each support:
• I2C
• SPI
• 10-bit ADC with internal reference, sample-and-hold
• Comparator
• Hardware multiplier supporting 32-bit operations
• Serial on-board programming, no external programming voltage required
• 3-channel internal DMA
• Basic timer with RTC capability
