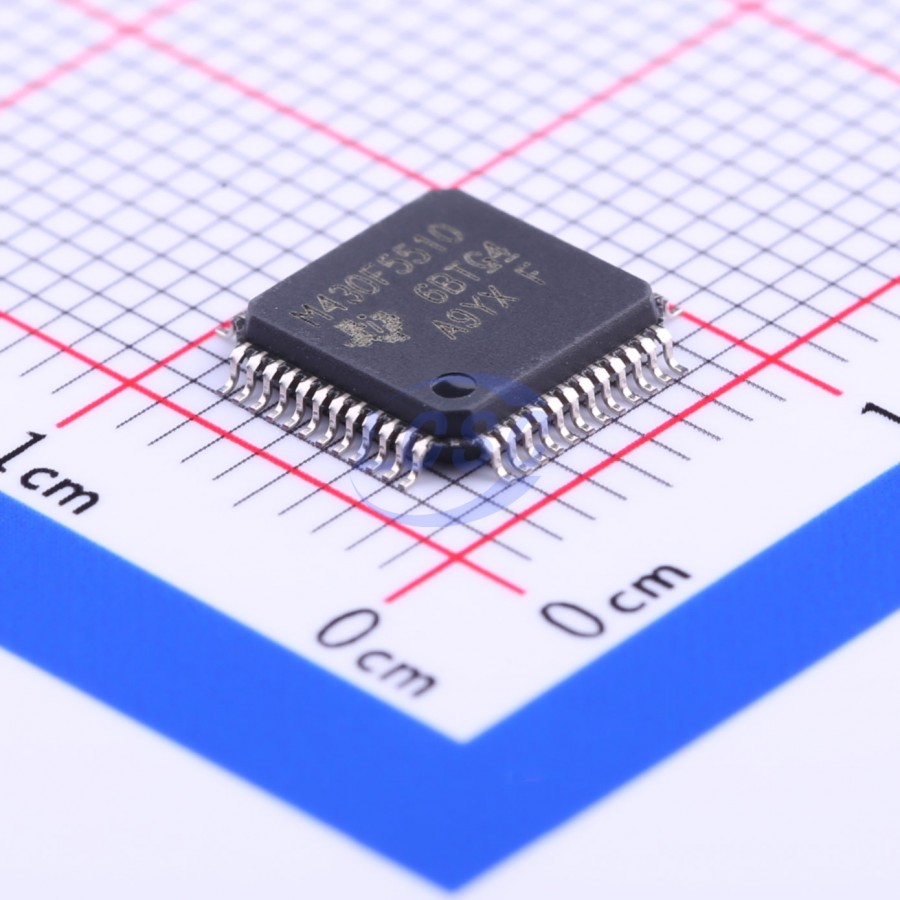

MSP430F5510IPTR

The MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with extensive low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows the device to wake up from low-power modes to active mode in less than 5 μs. The MSP430F5510, MSP430F5509, and MSP430F5508 devices are microcontroller configurations with integrated USB and PHY supporting USB 2.0, four 16-bit timers, a high-performance 10-bit analog-to-digital converter (ADC), two universal serial communication interfaces (USCIs), a hardware multiplier, DMA, a real-time clock (RTC) module with alarm capabilities, and 31 or 47 I/O pins. The MSP430F5507, MSP430F5506, MSP430F5505, and MSP430F5504 devices are microcontroller configurations with integrated USB and PHY supporting USB 2.0, four 16-bit timers, a high-performance 10-bit ADC, one USCI, a hardware multiplier, DMA, an RTC module with alarm capabilities, and 31 I/O pins. The MSP430F5503, MSP430F5502, MSP430F5501, and MSP430F5500 devices include all of the MSP430F5507, MSP430F5506, MSP430F5505, and MSP430F5504 peripherals, except that they have a comparator instead of the 10-bit ADC. Typical applications include analog and digital sensor systems and data loggers that require connectivity to various USB hosts.

Applications

• Analog and Digital Sensor Systems
• Data Loggers
• Connectivity to USB Hosts
• Wireless Headsets

Key features

• Low Supply-Voltage Range: 3.6 V Down to 1.8 V
• Ultra-Low-Power Consumption
• Active Mode (AM) All System Clocks Active 195 μA/MHz at 8 MHz, 3 V, Flash Program Execution (Typical)
• 115 μA/MHz at 8 MHz, 3 V, RAM Program Execution (Typical)
• Standby Mode (LPM3)
• Real-Time Clock (RTC) With Crystal, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup: 1.9 μA at 2.2 V, 2.1 μA at 3 V (Typical)
• Low-Power Oscillator (VLO), GeneralPurpose Counter, Watchdog, and Supply Supervisor Operational, Full RAM Retention, Fast Wakeup: 1.4 μA at 3 V (Typical)
• Off Mode (LPM4) Full RAM Retention, Supply Supervisor Operational, Fast Wakeup: 1.1 μA at 3 V (Typical)
• Shutdown Mode (LPM4.5) 0.18 μA at 3 V (Typical)
• Wakeup From Standby in Less Than 5 μs
• 16-Bit RISC Architecture, Extended Memory, up to 25-MHz System Clock
• Flexible Power-Management System
• Fully Integrated LDO With Programmable Regulated Core Supply Voltage
• Supply Voltage Supervision, Monitoring, and Brownout
• Unified Clock System
• FLL Control Loop for Frequency Stabilization
• Low-Power Low-Frequency Internal Clock Source (VLO)
• Low-Frequency Trimmed Internal Reference Source (REFO)
• 32-kHz Watch Crystals (XT1)
• High-Frequency Crystals up to 32 MHz (XT2)
• 16-Bit Timer TA0, Timer_A With Five Capture/Compare Registers
• 16-Bit Timer TA1, Timer_A With Three Capture/Compare Registers
• 16-Bit Timer TA2, Timer_A With Three Capture/Compare Registers
• 16-Bit Timer TB0, Timer_B With Seven Capture/Compare Shadow Registers
• Two Universal Serial Communication Interfaces (USCIs)
• USCI_A0 and USCI_A1 Each Support:
• Enhanced UART Supports Auto-Baudrate Detection IrDA Encoder and Decoder
• Synchronous SPI
• USCI_B0 and USCI_B1 Each Support:
• I2C
• Synchronous SPI
• Full-Speed Universal Serial Bus (USB)
• Integrated USB-PHY
• Integrated 3.3-V and 1.8-V USB Power System
• Integrated USB-PLL
• Eight Input and Eight Output Endpoints
• 10-Bit Analog-to-Digital Converter (ADC) With Window Comparator
• Comparator
• Hardware Multiplier Supports 32-Bit Operations
• Serial Onboard Programming, No External Programming Voltage Needed
• Three-Channel Internal DMA
• Basic Timer With RTC Feature
