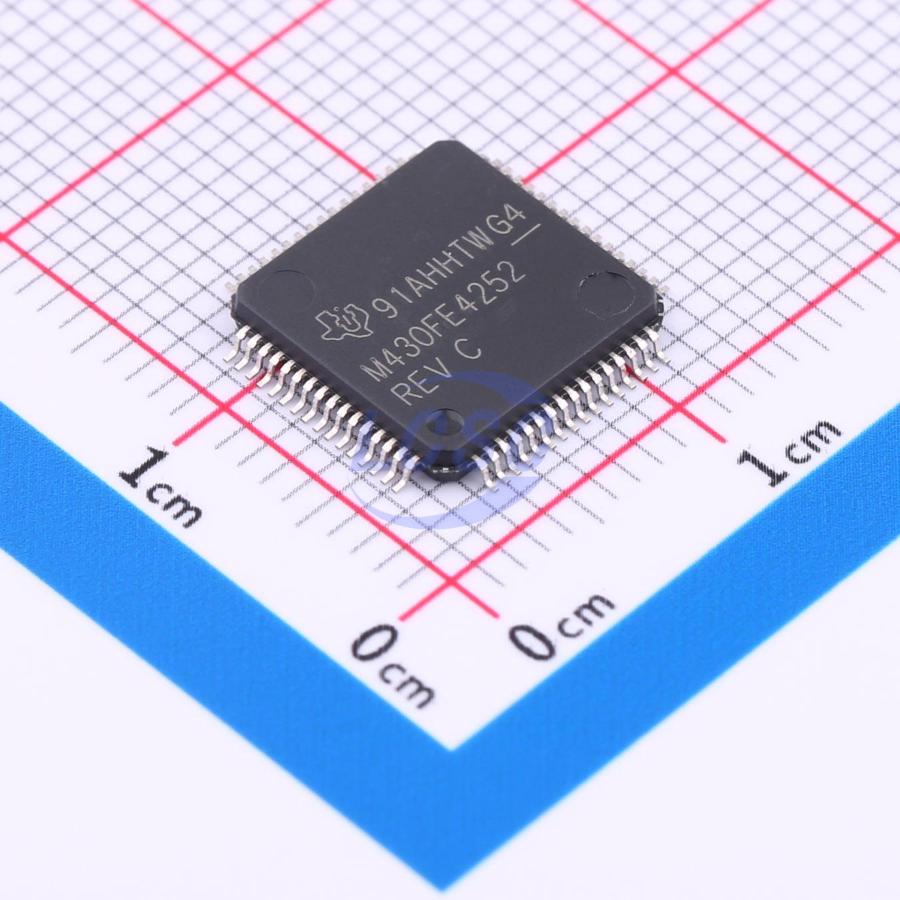

MSP430FE4252IPMR

The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6 μs. The MSP430FE42x2 devices are microcontroller configurations with two independent 16-bit sigma-delta analog-to-digital (A/D) converters and embedded signal processor core used to measure and calculate single-phase energy in both 2-wire and 3-wire configurations. Also included is a built-in 16-bit timer, 128 LCD segment drive capability, and 14 I/O pins. Typical applications include 2-wire and 3-wire single-phase metering.

Applications

• 2-wire and 3-wire single-phase metering

Key features

• Low Supply-Voltage Range, 2.7 V to 3.6 V
• Ultra-Low-Power Consumption:
• Active Mode: 400 μA at 1 MHz, 3.0 V
• Standby Mode: 1.6 μA
• Off Mode (RAM Retention): 0.1 μA
• Five Power-Saving Modes
• Wake-Up From Standby Mode in Less Than 6 μs
• Frequency-Locked Loop, FLL+
• 16-Bit RISC Architecture, 125-ns Instruction Cycle Time
• Embedded Signal Processing for Single-Phase Energy Metering With Integrated Analog Front-End and Temperature Sensor (ESP430CE1B)
• 16-Bit Timer_A With Three Capture/Compare Registers
• Integrated LCD Driver for 128 Segments
• Serial Communication Interface (USART), Asynchronous UART, or Synchronous SPI Selectable by Software
• Brownout Detector
• Supply Voltage Supervisor/Monitor With Programmable Level Detection
• Serial Onboard Programming, No External Programming Voltage Needed, Programmable Code Protection by Security Fuse
• Bootstrap Loader in Flash Devices
• Available in 64-Pin Quad Flat Pack (QFP)
