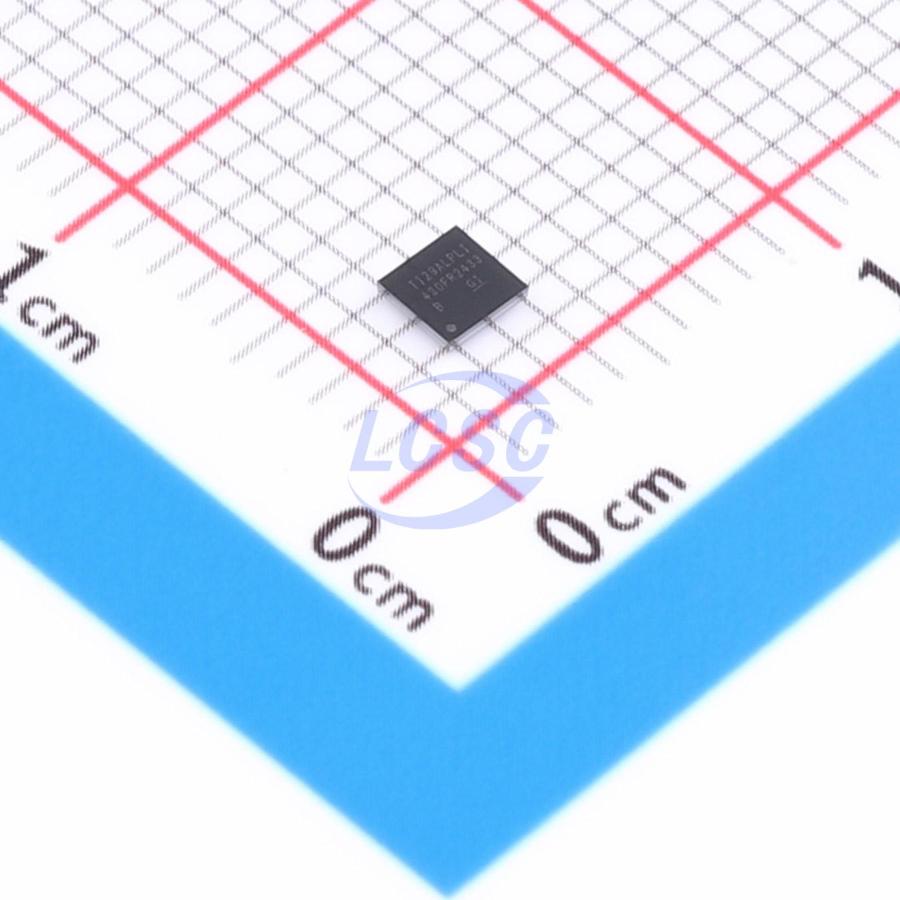

MSP430FR2433IYQWR

The MSP430FR2433 microcontroller (MCU) is a device in the value series detection product portfolio, suitable for detection and measurement applications. This architecture, combined with FRAM and integrated peripherals and multiple low-power modes, is optimized to extend the battery life of applications using a small VQFN package (4mm×4mm). The ultra-low-power FRAM microcontroller platform combines unique embedded FRAM with a comprehensive ultra-low-power system architecture, enabling system designers to improve performance while reducing energy consumption. FRAM technology combines the low-power fast writing, flexibility, and durability of RAM with the non-volatility of flash memory. The MSP430FR2433 MCU is supported by an ecosystem consisting of various software and hardware resources, and is accompanied by reference designs and code examples to help speed up the design process.

Applications

• Compact industrial sensors
• Low-power medical, health, and fitness equipment
• Electronic door locks
• Energy harvesting

Key features

• Embedded microcontroller
• 16-bit RISC architecture
• Clock frequency up to 16MHz
• Wide supply voltage range: 3.6V to 1.8V (minimum supply voltage limited by SVS level, see SVS specifications)
• Optimized ultra-low-power modes
• Active mode: 126µA/MHz (typical)
• Standby mode: VLO current less than 1µA
• LPM3.5 RTC counter with 32768Hz crystal: 730nA (typical)
• Shutdown current (LPM4.5): 16nA (typical)
• High-performance analog
• 8-channel 10-bit ADC
• 1.5V internal reference voltage
• Sample-and-hold at 200ksps
• Enhanced serial communication
• Two eUSCI_A supporting UART, IrDA, and SPI
• One eUSCI (eUSCI_B) supporting SPI and I2C
• Intelligent digital peripherals
• Four 16-bit timers
• Two timers with three capture/compare registers each (Timer_A3)
• Two timers with two capture/compare registers each (Timer_A2)
• One 16-bit RTC used as counter only
• 16-bit CRC
• Low-power ferroelectric RAM (FRAM)
• Non-volatile memory up to 15.5KB
• Built-in ECC
• Configurable write protection
• Unified memory for program, constants, and storage
• Write endurance up to 10^15 cycles
• Radiation-tolerant and non-magnetic
• FRAM-to-SRAM ratio up to 4:1
• Clock System (CS)
• On-chip 32kHz RC oscillator (REFO)
• On-chip 16MHz DCO with FLL
• ±1% accuracy at room temperature (with on-chip reference)
• On-chip ultra-low-frequency 10kHz oscillator (VLO)
• On-chip high-frequency modulation oscillator (MODOSC)
• External 32kHz crystal (LFXT)
• Programmable MCLK prescaler (1 to 128)
• SMCLK derived from MCLK via programmable prescaler (1, 2, 4, or 8)
• GPIO and pin functions
• 19 total I/Os (VQFN-24 package)
• 16 interrupt-capable pins (P1 and P2) for waking MCU from low-power modes
• Development tools and software
• LaunchPad development kit (MSP-EXP430FR2433)
• Target development board (MSP-TS430RGE24A)
• Package options
• 24-pin: VQFN (RGE)
• 24-pin: DSBGA (YQW)
