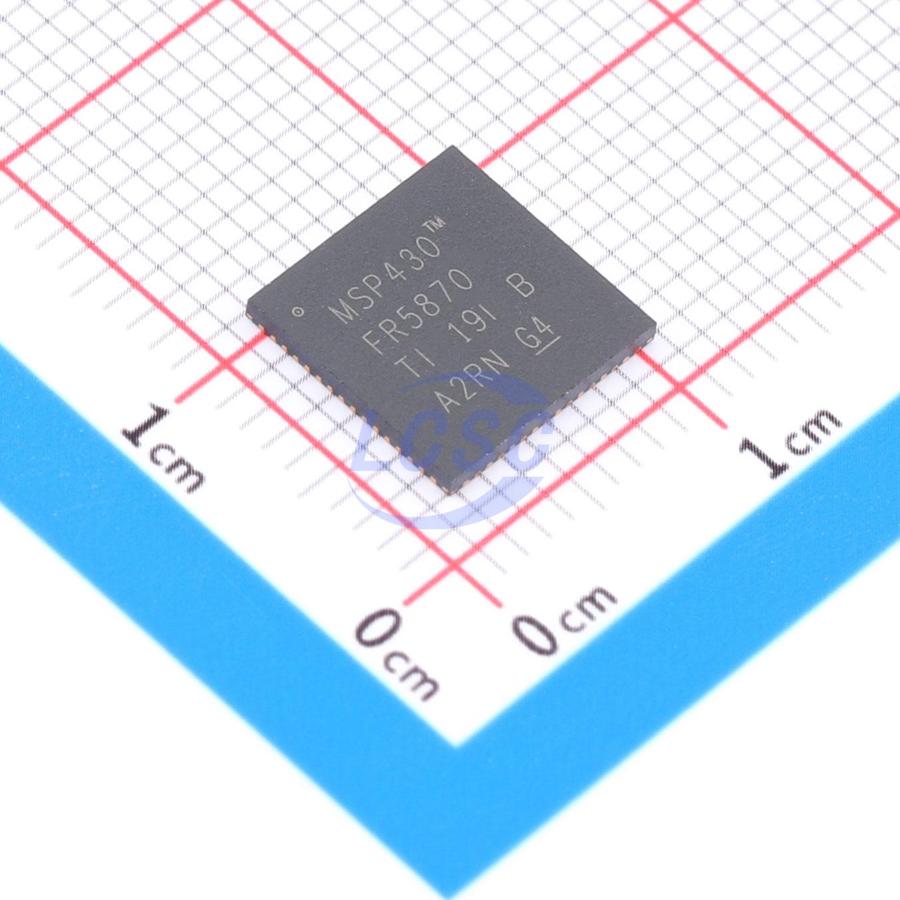

MSP430FR5870IRGCR

The MSP430FRxx FRAM microcontrollers in this ultra-low-power series come in a wide variety. Each member device is equipped with embedded non-volatile FRAM, a 16-bit CPU, and different peripheral sets to meet the needs of various applications. This architecture, combined with FRAM, peripherals, and seven low-power modes, is optimized specifically for extending battery life in portable wireless sensing applications. FRAM is a new type of non-volatile memory that perfectly combines the speed, flexibility, and durability of SRAM with the stability and reliability of flash memory, while consuming less overall power.

Applications

• Metering
• Energy Harvesting
• Sensor Nodes
• Wearable Electronics
• Sensor Management
• Data Logging

Key features

• Embedded microcontroller
• 16-bit RISC architecture up to 16MHz clock frequency
• Wide supply voltage range: 3.6V to 1.8V (minimum supply voltage limited by SVS level, refer to SVS specifications)
• Optimized ultra-low-power modes
• Active mode: approximately 100μA/MHz
• Standby (LPM3 with VLO): 0.4µA (typical)
• RTC (LPM3.5): 0.35μA (typical)
• Shutdown current (LPM4.5): 0.04μA (typical)
• Ultra-low-power FRAM
• Up to 64KB non-volatile memory
• Ultra-low-power write
• Fast write at 125ns per word (64KB written within 4ms)
• Unified memory = program, data, and storage in a single space
• 10¹⁵ write cycle endurance
• Radiation-hardened and non-magnetic
• Intelligent digital peripherals
• 32-bit hardware multiplier (MPY)
• 3-channel internal DMA
• RTC with calendar and alarm functions
• Five 16-bit timers with up to 7 capture/compare registers
• 16-bit and 32-bit CRC (CRC16, CRC32)
• High-performance analog
• Up to 8-channel analog comparator
• 12-bit ADC with internal reference, sample-and-hold, and up to 8 external input channels
• Code security and encryption
• 128-bit or 256-bit AES security encryption/decryption coprocessor (MSP430FR59xx(1) only)
• True random seed for random number generation algorithms
• Lockable memory segments for IP encapsulation and secure storage
• Versatile I/O ports
• All I/O pins support capacitive touch with no external components
• Bit-, byte-, and word-accessible (pairwise access)
• LPM wake-up via ports P1–P4 with selectable edge
• Programmable pull-up and pull-down on all ports
• Enhanced serial communication
• eUSCI_A0 and eUSCI_A1 support:
• UART with automatic baud rate detection
• IrDA encoding and decoding
• SPI up to 10Mbps
• eUSCI_B0 and eUSCI_B1 support:
• I2C with multi-slave addressing
• SPI up to 10Mbps
• Flexible clock system
• DCO with 10 selectable factory-trimmed frequencies
• VLO (low-power low-frequency internal clock source)
• 32kHz crystal (LFXT)
• High-frequency crystal (HFXT)
• Development tools and software
• Free professional development environment with EnergyTrace++™ technology for power profiling and debugging
• Microcontroller development kit available
