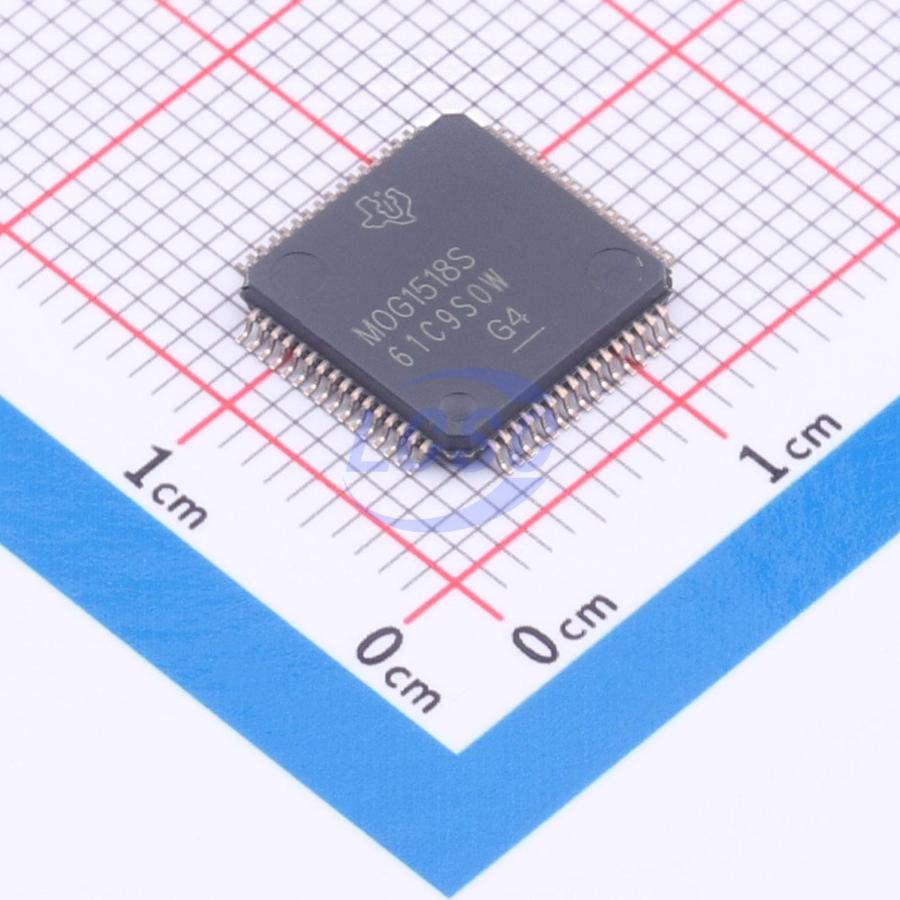

MSPM0G1518SPM

The MSPM0Gx51x MCUs belong to the MSP high-integration, ultra-low-power 32-bit MCU family, based on an enhanced Arm® Cortex®-M0+ 32-bit core platform with a maximum operating frequency of 80MHz. These MCUs balance cost optimization and design flexibility for applications requiring 256KB to 512KB of flash memory in small or high pin-count packages (up to 100 pins). These devices integrate dual CAN-FD controllers, cybersecurity features, and high-performance integrated analog peripherals, delivering excellent low-power performance across the full operating temperature range. The devices feature up to 512KB embedded flash program memory with built-in error correction code (ECC), and up to 128KB SRAM (the first 64KB with ECC and parity protection). The flash is organized into two main memory banks supporting field firmware updates, with address swap support between the two main banks. Flexible cybersecurity features support secure boot, secure field firmware updates, IP protection (execute-only memory), key storage, and more. Hardware acceleration supports multiple AES symmetric cipher modes, and a true random number generator (TRNG) entropy source is also provided. The security architecture targets Arm® PSA Level 1 certification. A set of high-performance analog modules is provided, including two 12-bit 4Msps ADCs capable of simultaneous sampling with support for up to 27 external channels; an on-chip voltage reference (1.4V or 2.5V); a 12-bit 1Msps DAC; and three comparators operable in low-power and high-speed modes, each with an additional built-in 8-bit reference DAC. The TI MSPM0 low-power MCU family includes devices with varying levels of analog and digital integration, helping customers find the MCU that best meets their project requirements.

Applications

• Motor control
• Home appliances
• Uninterruptible power supplies and inverters
• Electronic point-of-sale systems
• Medical and healthcare
• Test and measurement
• Factory automation and control
• Industrial transportation
• Grid infrastructure
• Smart metering
• Communication modules
• Lighting

Key features

• Arm 32-bit Cortex-M0+ CPU with memory protection unit, up to 80MHz
• Targets PSA-L1 certification
• Extended operating temperature range: -40℃ to 125℃
• Supply voltage range: 1.62V to 3.6V
• Up to 512KB flash with ECC
• Dual memory banks with address swapping for OTA updates
• 16KB data flash bank with ECC protection
• Total SRAM: 128KB
• SRAM (Bank 0): 64KB SRAM with ECC or hardware parity, data retention in STANDBY mode
• SRAM (Bank 1): 64KB SRAM, data retention in STOP mode
• Two simultaneously sampling 12-bit 4Msps ADCs, up to 27 external channels
• 14-bit effective resolution at 250ksps in hardware averaging mode
• Three high-speed comparators (COMP) with integrated 8-bit reference DAC
• 32ns propagation delay in high-speed mode
• Low-power mode operation below 1μA
• One 12-bit 1Msps DAC with integrated output buffer
• Programmable analog interconnect between ADC, COMP, and DAC
• Configurable 1.4V or 2.5V internal shared voltage reference (VREF)
• Integrated temperature sensor
• Optimized low-power modes: RUN 123µA/MHz (CoreMark); SLEEP 38µA/MHz; STOP 223µA at 4MHz; STANDBY 1.7µA at 32kHz with RTC and SRAM Bank 0 retention; SHUTDOWN 92nA with IO wakeup
• 12-channel DMA controller
• Math accelerator supporting DIV, SQRT, MAC, and TRIG operations
• 9 timers, up to 28 PWM channels
• Two 16-bit general-purpose timers with QEI support
• Four 16-bit general-purpose timers with low-power operation in STANDBY mode
• One 32-bit general-purpose timer
• Two 16-bit advanced timers with dead-band support and complementary outputs, up to 12 PWM channels
• Two WWDT, one IWDT
• RTC with alarm and calendar modes
• Seven UART interfaces
• Two UARTs supporting LIN, IrDA, DALI, Smart Card, Manchester
• Three UARTs with low-power operation in STANDBY mode
• Three I2C interfaces, up to FM+ (1Mbit/s), SMBus/PMBus, STOP mode wakeup
• Three SPI interfaces, one up to 32Mbit/s
• Two CAN interfaces supporting CAN 2.0 A/B and CAN-FD
• Internal 4 to 32MHz oscillator (SYSOSC), up to ±1.2% accuracy
• PLL, up to 80MHz output
• Internal 32kHz low-frequency oscillator (LFOSC), ±3% accuracy
• External 4 to 48MHz crystal oscillator (HFXT)
• External 32kHz crystal oscillator (LFXT)
• External clock input support
• AES-128/256 accelerator supporting GCM/GMAC, CCM/CBC-MAC, CBC, CTR
• Secure key storage, up to four AES keys
• Flexible firewall for code and data protection
• TRNG
• CRC-16, CRC-32
• Up to 94 GPIOs
• Two 5V-tolerant open-drain IOs
• Three high-drive IOs, 20mA drive strength
• Four high-speed IOs
• 2-pin SWD support
• Package options: 100-pin nFBGA (ZAW) (0.8mm pitch); 100-pin LQFP (PZ) (0.5mm pitch); 80-pin LQFP (PN) (0.5mm pitch); 64-pin LQFP (PM) (0.5mm pitch); 48-pin LQFP (PT) (0.5mm pitch); 48-pin VQFN (RGZ) (0.5mm pitch); 42-pin DSBGA (YCJ) (0.35mm pitch) - Preview; 32-pin VQFN (RHB) (0.5mm pitch)
• Family variants: MSPM0G1518: 256KB flash, 128KB RAM; MSPM0G1519: 512KB flash, 128KB RAM; MSPM0G3518: 256KB flash, 128KB RAM; MSPM0G3519: 512KB flash, 128KB RAM
• LP-MSPM0G3519 LaunchPad™ development kit available; MSPM0 Software Development Kit (SDK) available
