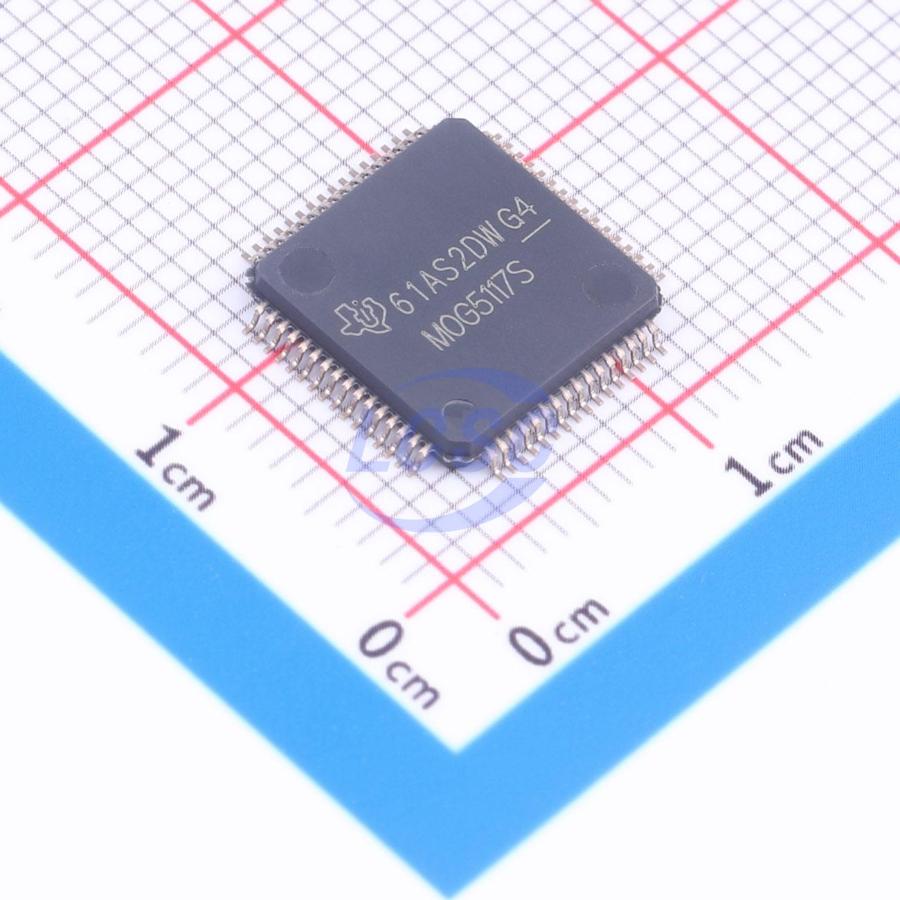

MSPM0G5117SPMR

MSPM0G511x Mixed-Signal Microcontroller with USB 2.0-FS Interface

Key features

• Arm® 32-bit Cortex®-M0+ CPU with MPU, up to 80MHz
• Targeting PSA-L1 certification
• Operating temperature range: –40℃ to 125℃
• Supply voltage range: 1.62V to 3.6V
• Up to 128KB flash with ECC
• Dual memory banks with address swap and OTA update support
• 8KB data flash bank with ECC protection
• Up to 32KB SRAM with ECC protection or hardware parity
• 1× 12-bit 1.6Msps ADC with up to 26 external channels
• ADC configurable for 1.6Msps with VREF1 or 0.9Msps with VREF2
• Hardware averaging enables 14-bit effective resolution at 100ksps
• 1× high-speed comparator (COMP) with integrated 8-bit reference DAC
• 32ns propagation delay in high-speed mode
• Low-power operating modes supported (down to <1μA)
• Programmable analog connectivity between ADC and COMP
• 2× voltage references (VREF)
• VREF1: configurable 1.4V or 2.5V internal voltage reference (external VREF capacitor required)
• VREF2: configurable 1.4V or 2.5V internal voltage reference (no external capacitor required)
• Integrated temperature sensor
• RUN mode current: 103µA/MHz (CoreMark)
• SLEEP mode current: 34µA/MHz
• STOP mode current: 199µA/4MHz
• STANDBY mode: 1.5µA at 32kHz with RTC enabled, full SRAM retained, and state preserved
• SHUTDOWN mode current: 88nA with IO wakeup capability
• 12-channel DMA controller
• 4 timers supporting up to 14 PWM channels
• Two 16-bit general-purpose timers; one 16-bit general-purpose timer supports low-power operation in STANDBY mode
• One 16-bit advanced timer with dead-band support and multiple complementary outputs, supporting up to 8 PWM channels
• One basic software timer with 4 independently configurable 16-bit counters
• Two 16-bit counters chainable in daisy-chain configuration to form one 32-bit counter
• Capable of generating 2 interrupt-driven PWMs
• 2× WWDT, 1× IWDT
• RTC with alarm and calendar modes
• 4 configurable serial interfaces (UNICOMM)
• 2× configurable as UART (LIN) or I2C (SMBus/PMBus)
• 1× configurable as UART or SPI
• 1× SPI interface up to 32Mbits/s
• 1× USB 2.0 full-speed (12Mbps) compatible device and host mode
• Crystal-less USB device operation supported
• Up to 8 bidirectional endpoints
• 1× digital audio interface supporting multiple standardized serial interfaces for audio devices
• Transfer modes: controller transmitter/receiver, target transmitter/receiver
• Format support: standard (UM11732) I2S
• Codec LSB/MSB-justified format supported
• DSP serial interface format supported, up to eight audio channels per data pin
• PCM (short-frame and long-frame) supported
• TDM classic/I2S/left-justified/right-justified format supported, up to 8 slots per frame
• Internal 4MHz to 32MHz oscillator (SYSOSC), accuracy up to ±1.2%
• PLL up to 80MHz
• Internal 60MHz USB FLL oscillator, ±0.25% accuracy
• Internal 32kHz low-frequency oscillator (LFOSC), ±3% accuracy
• External 4MHz to 48MHz crystal oscillator (HFXT)
• External 32kHz crystal oscillator (LFXT)
• External clock input supported
• AES accelerator supporting GCM/GMAC, CCM/CBC-MAC, CBC, CTR
• Secure key storage supporting up to four AES keys
• Flexible firewall for code and data protection
• CRC (CRC-16, CRC-32)
• Up to 59 GPIOs total
• 2× 5V-tolerant open-drain IOs
• 3× high-drive IOs with 20mA drive strength
• 2× high-speed IOs
• 2-pin SWD supported
• 64-pin LQFP (PM) (0.5mm pitch) package option
• 48-pin LQFP (PT) (0.5mm pitch) package option
• 48-pin VQFN (RGZ) (0.5mm pitch) package option
• 32-pin VQFN (RHB) (0.5mm pitch) package option
• 28-pin DSBGA (YCJ) (0.35mm pitch) package option (preview)
• 28-pin WQFN (RUY) (0.4mm pitch) package option
• 24-pin VQFN (RGE) (0.5mm pitch) package option
• 20-pin VSSOP (DGS) (0.5mm pitch) package option
• Family members: MSPM0G5117 (128KB flash, 32KB RAM); MSPM0G5116 (64KB flash, 32KB RAM); MSPM0G5115 (32KB flash, 16KB RAM)
• LP-MSPM0G5187 LaunchPad™ development kit supported
• MSPM0 SDK supported
