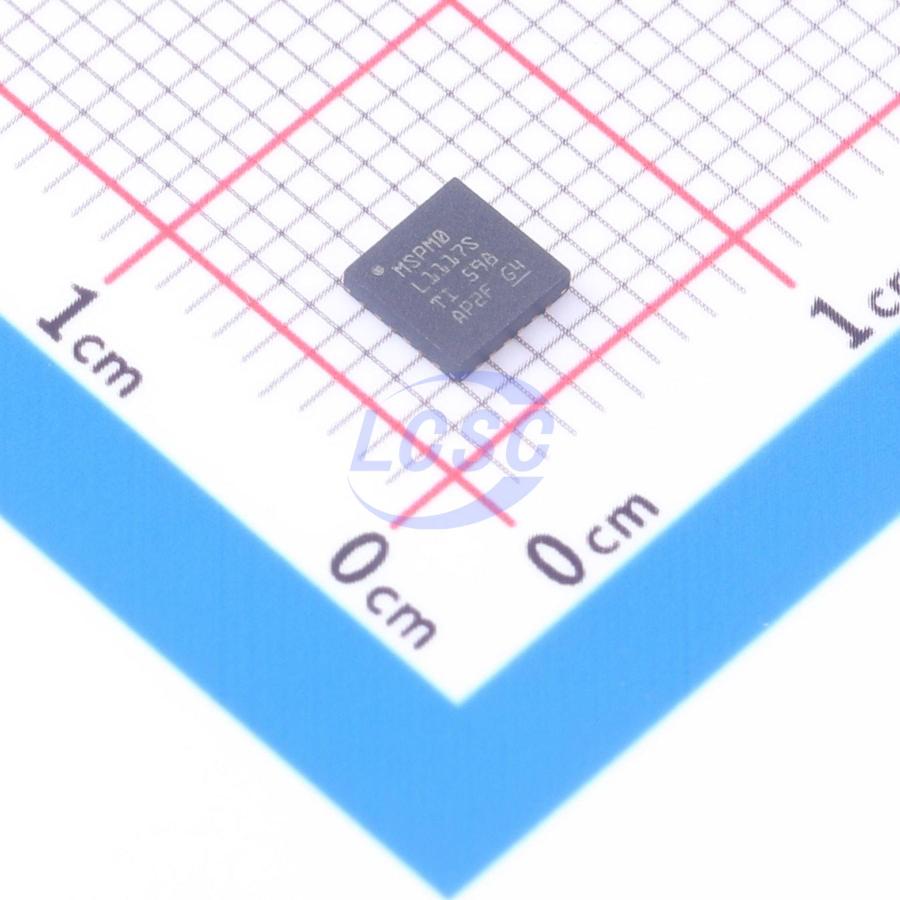

MSPM0L1117SRGER

The MSPM0L111x microcontrollers (MCUs) are part of a highly integrated, ultra-low-power 32-bit MSP MCU family based on the enhanced Arm® Cortex®-M0+ core platform, operating at up to 32MHz. These cost-optimized MCUs offer high-performance analog peripheral integration with excellent low-power current characteristics. The MCUs support an extended temperature range of -40°C to 125°C and an operating supply voltage range of 1.62V to 3.6V. The devices feature up to 128KB of embedded Flash with built-in ECC and up to 16KB of SRAM. The Flash is organized into two main banks to support field firmware updates, with address swap support between the two main banks. A flexible cybersecurity enablement toolkit supports secure boot, secure field firmware updates, IP protection (execute-only memory), key storage, and more. Hardware acceleration is provided for multiple AES symmetric cipher modes, along with a TRNG entropy source. This cybersecurity architecture is pending Arm® PSA Level 1 certification. These MCUs integrate a high-speed on-chip oscillator with accuracy up to ±1.2%, eliminating the need for an external crystal. Additional features include a 3-channel DMA, a 16-bit/32-bit CRC accelerator, and a variety of high-performance analog peripherals, such as a 12-bit 1.68Msps ADC with a configurable internal voltage reference and an on-chip temperature sensor. The devices also provide intelligent digital peripherals, including one 16-bit advanced control timer, two 16-bit general-purpose timers, one general-purpose timer with quadrature encoder input, a windowed watchdog and an independent watchdog, as well as multiple communication peripherals including one I2C, one SPI, and two UARTs (one with LIN protocol support). The TI MSPM0 low-power MCU family includes devices with varying levels of analog and digital integration, helping customers find the right MCU for their project requirements. The architecture, combined with rich low-power modes, is optimized for long battery life in portable measurement applications. The MSPM0L111x MCUs are supported by a rich software and hardware ecosystem, with reference designs and code examples for rapid design starts. The development kit includes a purchasable LaunchPad™ development kit and design files for target socket boards. TI also provides a free MSP Software Development Kit (SDK), available in both the desktop and cloud versions of the Code Composer Studio™ IDE via TI Resource Explorer. MSPM0 MCUs are further supported by extensive online resources, MSP Academy training, and the TI E2E™ support forum.

Applications

• Battery charging and management
• Power supplies
• Consumer electronics
• Building security and fire safety
• Connected peripherals and printers
• Energy infrastructure - smart metering
• Smart metering
• Communication modules
• Medical and healthcare
• Lighting

Key features

• Arm® 32-bit Cortex®-M0+ CPU with memory protection unit, up to 32MHz
• Targeting PSA-L1 certification
• Extended temperature range: -40℃ to 125℃
• Operating supply voltage: 1.62V to 3.6V
• Up to 128KB flash with ECC
• Dual memory banks with address swapping for OTA updates
• Up to 16KB SRAM
• Integrated high-performance analog peripherals: 1x 12-bit 1.68Msps ADC, up to 13 external channels
• 14-bit effective resolution at 105ksps in hardware averaging mode
• Configurable 1.4V or 2.5V internal voltage reference (VREF)
• Integrated temperature sensor
• Optimized low-power modes: RUN 106µA/MHz (CoreMark); SLEEP 50µA/MHz; STOP 239µA @4MHz; STANDBY 1.5µA @32kHz with RTC, full SRAM and state retention; SHUTDOWN 75nA with IO wake capability
• 3-channel DMA controller
• 3-channel event fabric signaling system
• Up to 14 PWM channels total
• 1x 16-bit advanced timer with dead-band support and complementary outputs, up to 8 PWM channels
• Two 16-bit general-purpose timers supporting low-power operation in STANDBY mode
• 1x 16-bit general-purpose timer with QEI support
• 1x window watchdog timer (WWDT)
• 1x independent watchdog timer (IWDT)
• RTC with alarm and calendar mode
• Two UART interfaces supporting low-power operation in STANDBY mode; one with LIN, IrDA, DALI, Smart Card, Manchester encoding
• 1x I2C interface up to FM+ (1Mbit/s), SMBus/PMBus, with STOP mode wake
• 1x SPI interface up to 16Mbit/s
• Internal 4 to 32MHz oscillator (SYSOSC), up to ±1.2% accuracy
• Internal 32kHz low-frequency oscillator (LFOSC), ±3% accuracy
• External 32kHz crystal (LFXT)
• AES-128/256 accelerator supporting GCM/GMAC, CCM/CBC-MAC, CBC, CTR
• Secure key storage for up to two AES keys
• Flexible firewall for code and data protection
• True random number generator (TRNG)
• Cyclic redundancy checker (CRC-16, CRC-32)
• Up to 44 GPIOs
• Two 5V-tolerant open-drain IOs
• Seven high-drive IOs, 20mA drive strength
• One high-speed IO
• 2-pin serial wire debug (SWD) support
• Package options: 48-pin LQFP (PT) (0.5mm pitch); 48-pin VQFN (RGZ) (0.5mm pitch); 32-pin VQFN (RHB) (0.5mm pitch); 24-pin VQFN (RGE) (0.5mm pitch)
• Family members: MSPM0L1116: 64KB flash, 16KB RAM; MSPM0L1117: 128KB flash, 16KB RAM
• LP-MSPM0L1117 LaunchPad™ development kit available
• MSP Software Development Kit (SDK) available
