MSKSEMIDatasheet (PDF)

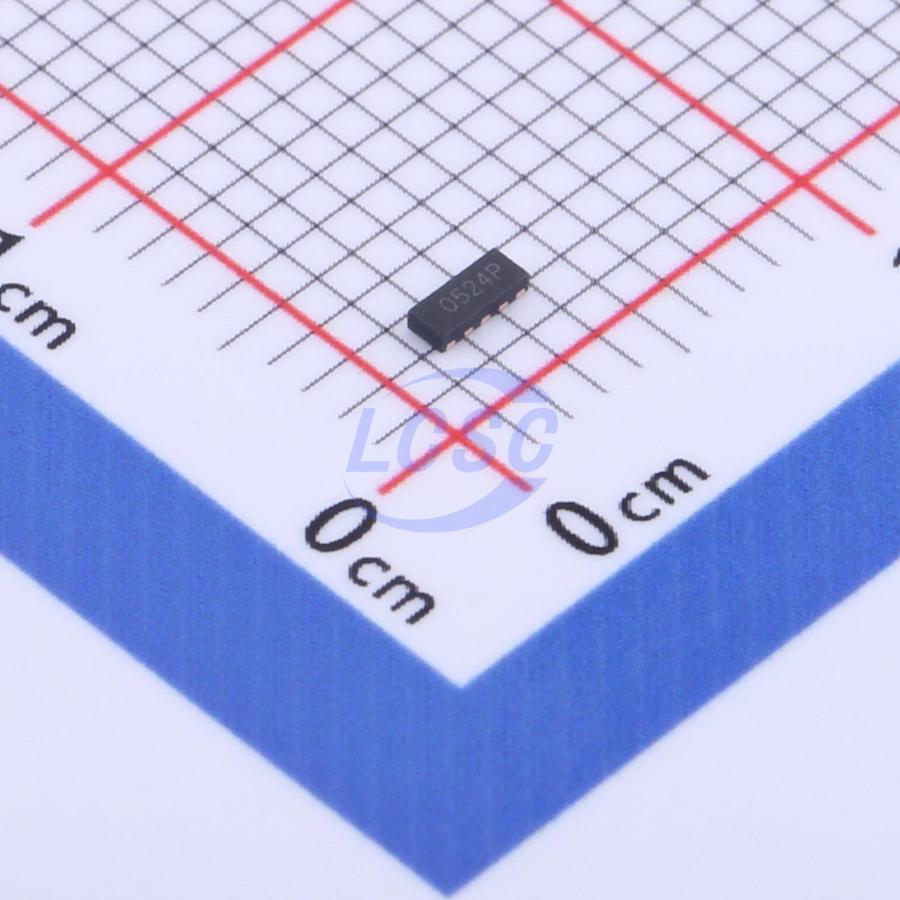

MSULC0524P
15VC Clamp 4A Ipp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 5VWM 15VC DFN2510-10
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MSULC0524P
- Store part #
- C2802271
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,600 in stock
#C2802271
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.27 | ₹105.40 |
| 200+ | ₹4.23 | ₹846.00 |
| 600+ | ₹3.72 | ₹2,232.00 |
| 3,000+ | ₹2.99 | ₹8,970.00 |
| 9,000+ | ₹2.69 | ₹24,210.00 |
| 21,000+ | ₹2.53 | ₹53,130.00 |
20 × ₹5.27
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MSULC0524P
₹105.40 for 20 + GST
Specifications
- Clamping Voltage
- 15V
- Peak Pulse Current (Ipp)
- 4A
- Peak Pulse Power Dissipation (Ppp)
- 60W
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.03 g
Overview
Applications
- HDMI/USB2.0
- 10/100/1000 Ethernet
- Monitors and flat panel displays
- Laptops
- SIM card ports
Key features
- IEC 61000-4-2 Level 4 ESD protection
- Contact discharge ±12kV
- Air discharge ±17kV
- IEC 61000-4-4 EFT protection
- 40A (5/50ns)
- IEC 61000-4-5 surge protection
- 4.5A (8/20μs)
- RoHS compliant
- Protects four I/O lines
- Ultra-low capacitance: 0.6pF typical
- Low clamping voltage
- Low leakage current
- Solid-state silicon technology
