MT7201C+

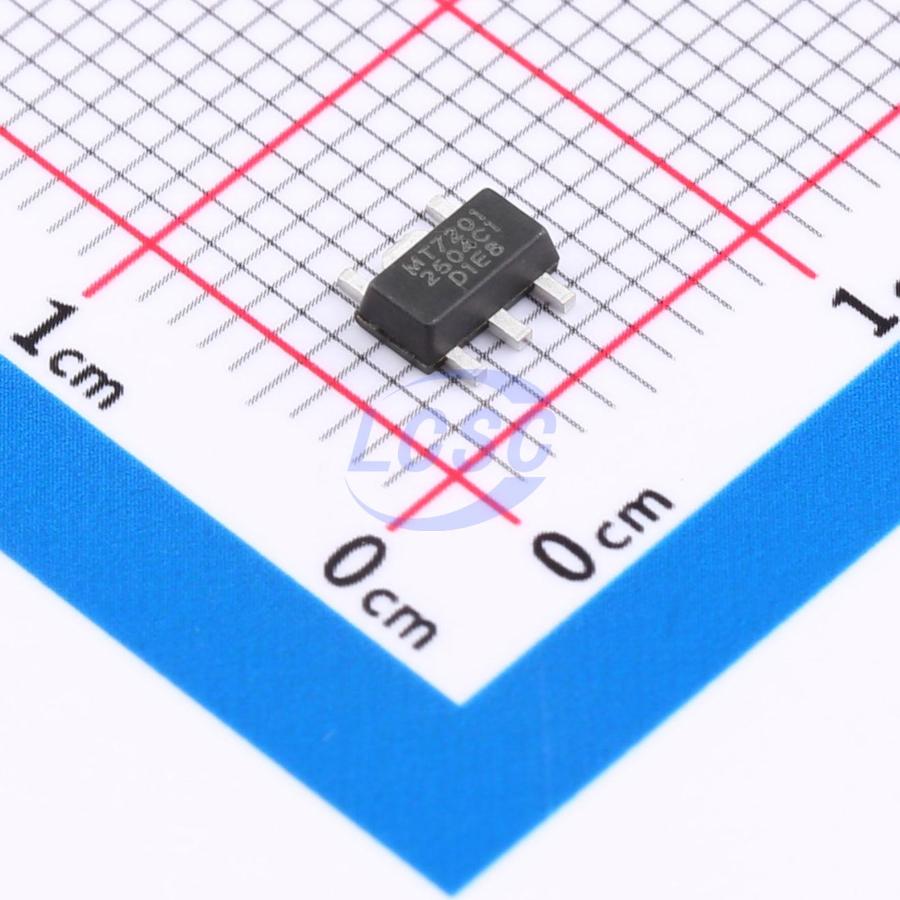

LED Driver IC 1 Output Buck PWM Analog Dimming 1A SOT-89-5
SOT-89-5ROHS CompliantActive
1A built-in power transistor LED constant current driver
- Manufacturer
- MAXIC Tech
- Manufacturer part #
- MT7201C+
- Store part #
- C216698
- Package / case
- SOT-89-5
- Category
- LED Drivers ICs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,695 in stock
#C216698
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.58 | ₹122.90 |
| 50+ | ₹20.61 | ₹1,030.50 |
| 150+ | ₹18.63 | ₹2,794.50 |
| 1,000+ | ₹16.89 | ₹16,890.00 |
| 2,000+ | ₹15.70 | ₹31,400.00 |
| 5,000+ | ₹15.11 | ₹75,550.00 |
5 × ₹24.58
₹122.90
excl. GST
₹145.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MT7201C+
₹122.90 for 5 + GST
Specifications
- Features
- LED open-circuit protection;Over-Temperature Protection (OTP)
- Frequency - Switching
- 1kHz~1.1MHz
- Switch Tube (Built-In/External)
- Built-in
- Operating temperature
- -40℃~+105℃
- Topology
- Buck
- Number of Channels
- 1
- Type
- DC-DC
- Output Current
- 1A
- Constant Current Accuracy
- 2%
- Voltage - Input(DC)
- 6V~50V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
Overview
Applications
- Low-voltage LED spotlights replacing halogen lamps
- Automotive LED lighting
- Low-voltage industrial lighting
- LED backup lights
- LED signal lights
- LED stage lighting
Key features
- Buck constant-current driver IC in continuous conduction mode
- Drives one or more series-connected LEDs when input voltage exceeds LED voltage
- Input voltage range 6V to 50V, adjustable output current up to 1A
- Integrated power switch and high-side current sensing circuit
- LED average current set via external resistor; analog dimming and PWM dimming via ADJ pin
- Integrated PWM filter for soft-start functionality; soft-start time extendable by adding external capacitor between ADJ pin and GND
- Power switch turns off and enters ultra-low standby current state when ADJ voltage falls below 0.2V
- SOT89-5 package
- Minimal external components
- Constant current output up to 1A
- Single-pin ON/OFF control, analog dimming, and PWM dimming
- Integrated PWM filter
- Proprietary frequency dithering technology for reduced EMI
- Efficiency up to 97%
- Wide input voltage range: 6V to 50V
- Switching frequency up to 1MHz
- LED open-circuit protection
- 2% output current accuracy
