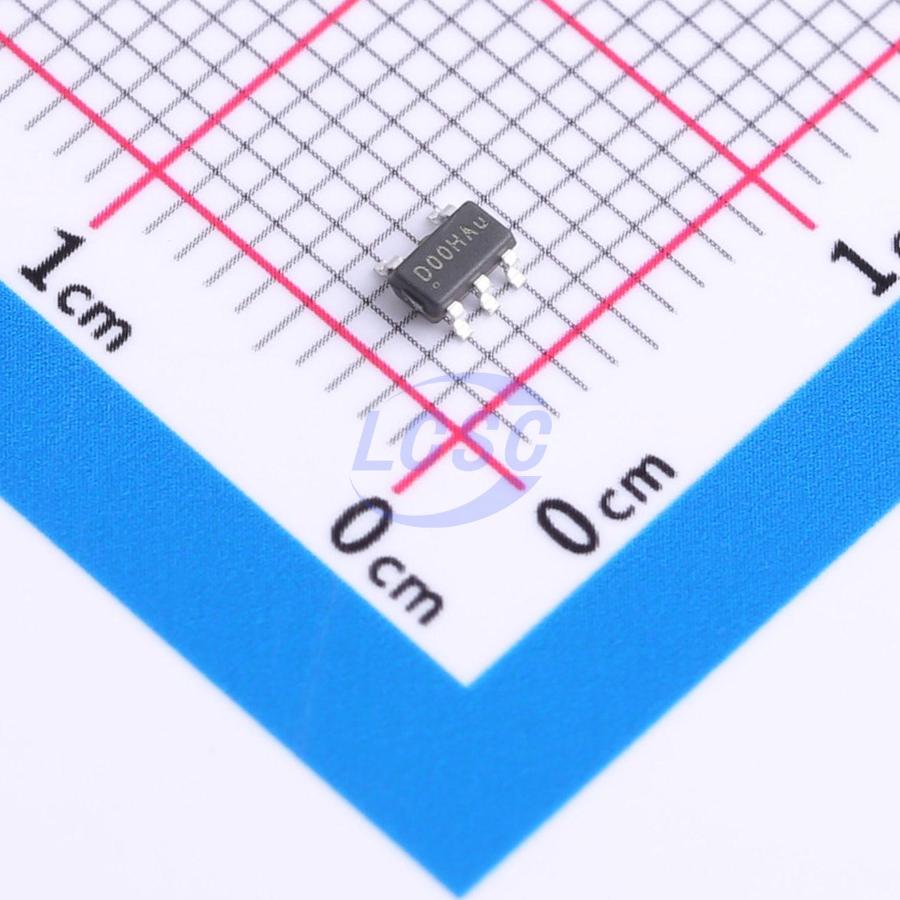

MT9700-N

1 Active High 2A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS

SOT-23-5ROHS CompliantActive

Adjustable Fast Response Current-Limited Power-Distribution Switch

Manufacturer: XI'AN Aerosemi Tech
Manufacturer part #: MT9700-N
Store part #: C42441843
Package / case: SOT-23-5
Category: Power Distribution Switches, Load Drivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,78,379 in stock

#C42441843

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹7.57	₹7.57
10+	₹6.62	₹66.20
30+	₹6.13	₹183.90
100+	₹5.72	₹572.00
500+	₹5.57	₹2,785.00
1,000+	₹5.48	₹5,480.00

Quantity (min 1)

1 × ₹7.57

₹7.57

excl. GST

₹8.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

MT9700-N

₹7.57 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃
Features: Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking
number of channels: 1
Control Input Logic: Active High
Maximum Continuous Current: 2A
Operating Voltage: 2.4V~5.5V
RDS(on): 80mΩ
Type: Load Switch

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.048 g

Overview

The MT9700 is a cost-effective, low voltage, single P-MOSFET load switch, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. This switch operates with inputs ranging from 2.4V to 5.5V, making it ideal for both 3V and 5V systems. The switch's low RDS(ON), 80mΩ, meets USB voltage drop requirements. The MT9700 is also protected from thermal overload which limits power dissipation and junction temperatures. Current limit threshold is programmed with a resistor from SET to ground. The quiescent supply current is typically 25μA at switch on state. At switch off state the supply current decreases to less than 1μA. The MT9700 is available in SOT23-5 package.

Applications

USB Bus/Self Powered Hubs
USB Peripherals
Notebook Computers
Battery-Charger Circuits
Personal Communication Devices

Key features

Compliant to USB Specifications
Integrated 80mΩ Power MOSFET
Low Supply Current 25μA Typical at Switch On State <1μA Typical at Switch Off State
Wide Input Voltage Range: 2.4V to 5.5V
Fast Transient Response
Reverse Current Flow Blocking
Thermal Shutdown Protection
Hot Plug-In Application
Available in a 5-Pin SOT23-5 Package
