SilergyDatasheet (PDF)

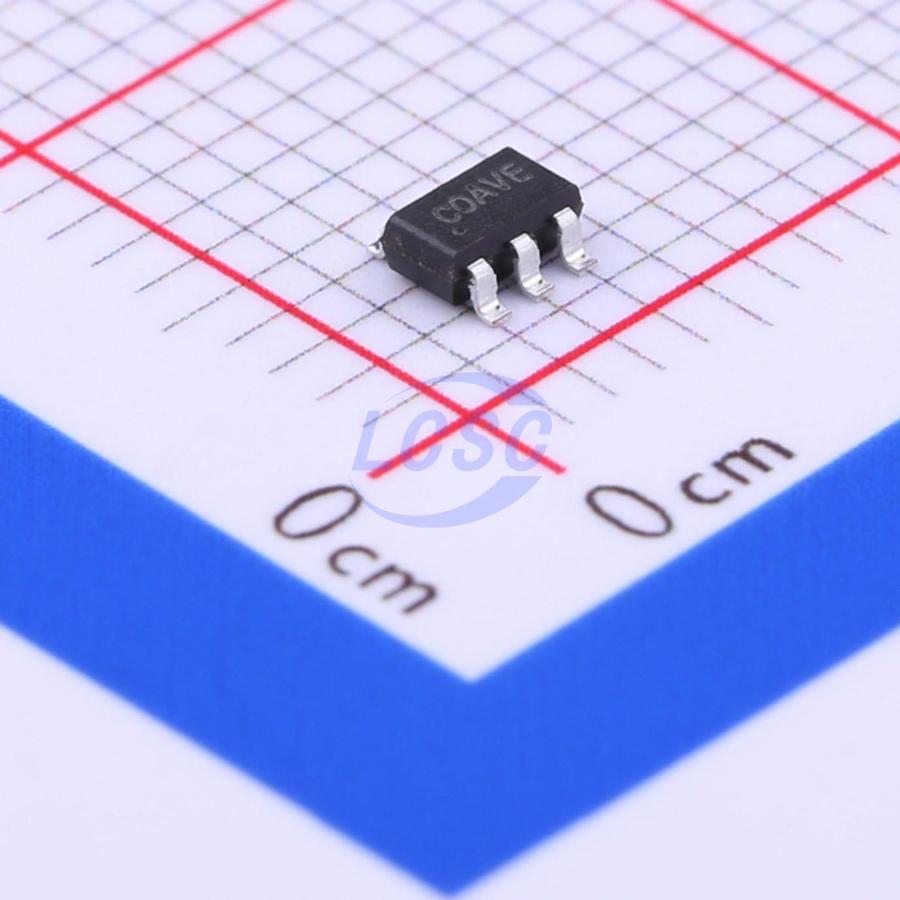

SY6280AAC
1 2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
Low Loss Power Distribution Switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6280AAC
- Store part #
- C55136
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,26,325 in stock
#C55136
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.33 | ₹61.65 |
| 50+ | ₹9.79 | ₹489.50 |
| 150+ | ₹8.49 | ₹1,273.50 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹7.04 | ₹21,120.00 |
| 6,000+ | ₹6.79 | ₹40,740.00 |
5 × ₹12.33
₹61.65
excl. GST
₹72.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6280AAC
₹61.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- Operating Voltage
- 2.4V~5.5V
- RDS(on)
- 80mΩ
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The SY6280 develops ultra-low Rds(on) switch with programmable current limiting to protect the power source from over current and short circuit conditions. It integrates the over temperature protection and discharges the output capacitor during the shutdown. In case the output is pulled higher than the input voltage under the shutdown, the SY6280 can block the current flowing from the output to the input.
Applications
- USB 3G Datacard
- USB Dongle
- MiniPCI Accessorie
Key features
- Distribution voltages: 2.4V to 5.5V
- Programmable current limit
- Enable polarity: active high
- Over temperature shutdown and automatic retry
- Reverse blocking (no body diode)
- At shutdown, OUT can be forced higher than IN
- Automatic output discharge at shutdown
- Compact SOT23 packages minimize the board space
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SY6280AAAC#C207620Silergy · SOT-23-5 | Silergy | SOT-23-5 | 13,615 | ₹13.19 · 13,615 in stock | View |
 | SY6288C30AAC#C7427215Silergy · SOT-23-5 | Silergy | SOT-23-5 | 2,745 | ₹14.78 · 2,745 in stock | View |
