SilergyDatasheet (PDF)

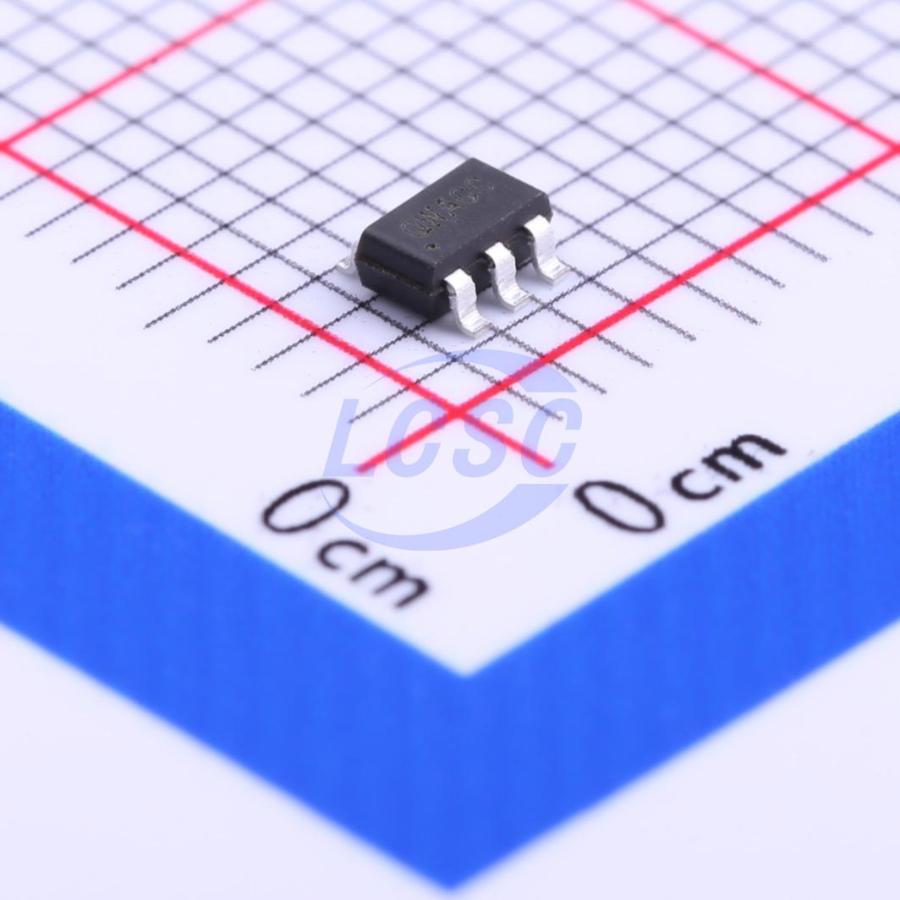

SY6280AAAC
1 2A Active High High Side Switch SOT-23-5 Power Distribution Switches, Load Drivers
SOT-23-5RoHSActive
5.5V, 2A low-loss power distribution switch
- Manufacturer
- Silergy
- Manufacturer part #
- SY6280AAAC
- Store part #
- C207620
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13,615 in stock
#C207620
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.19 | ₹65.95 |
| 50+ | ₹10.39 | ₹519.50 |
| 150+ | ₹8.98 | ₹1,347.00 |
| 500+ | ₹7.92 | ₹3,960.00 |
| 3,000+ | ₹7.09 | ₹21,270.00 |
| 6,000+ | ₹6.67 | ₹40,020.00 |
5 × ₹13.19
₹65.95
excl. GST
₹77.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SY6280AAAC
₹65.95 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Reverse current blocking;Output discharge function;Under-voltage lockout
- number of channels
- 1
- Maximum Continuous Current
- 2A
- Control Input Logic
- Active High
- RDS(on)
- 63mΩ
- Operating Voltage
- 2.4V~5.5V
- Type
- High Side Switch
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
SY6280/ SY6280A is ultra-low RDS(ON) switch with programmable current limit to protect the power source from over current and short circuit conditions. They incorporate over temperature protection and reverse blocking functions. SY6280 automatically discharges the output capacitors during shutdown.
Applications
- USB atacard
- U Dongle
- MiniPCI Accessories
Key features
- 2A load current capability Programmable current limit
- Enable polarity: active high
- Over temperature protection
- Reverse blocking (no body diode)
- OUT can be forced higher than IN at shutdown
- Output discharge function SY6280: Auto output discharge function SY6280A: No output discharge function
- Compact SOT23-5 package minimizes the board space
