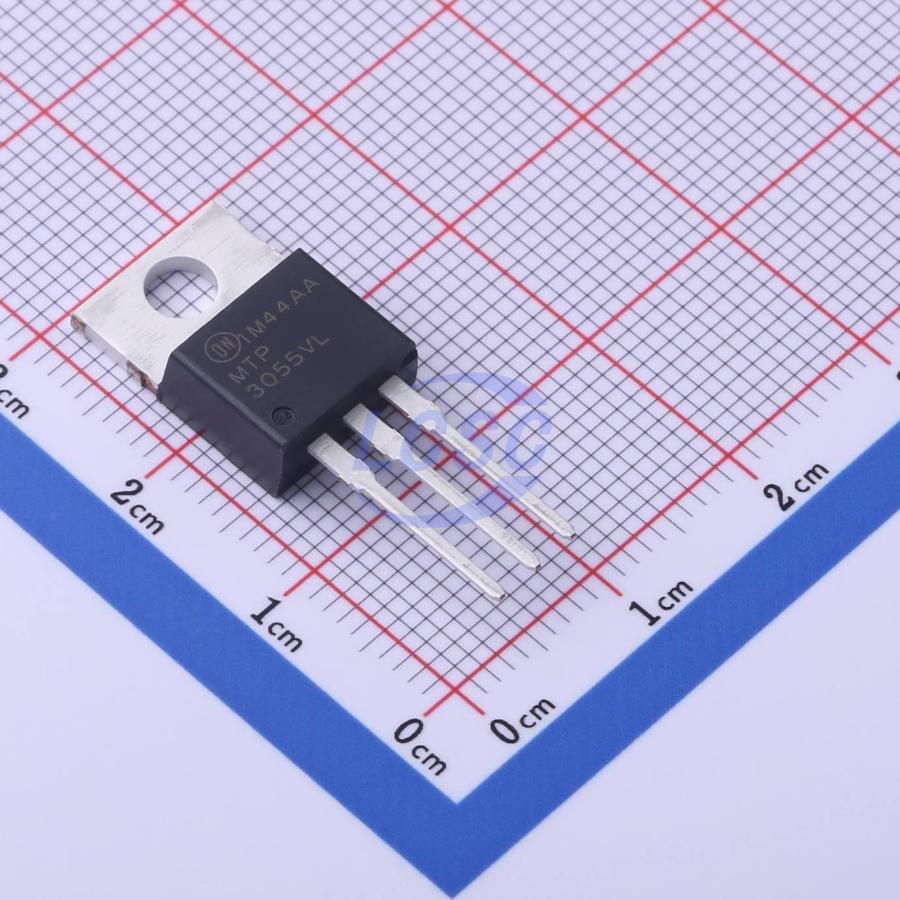

MTP3055VL
60V 12A 48W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET 60V 12A TO-220AB
- Manufacturer
- onsemi
- Manufacturer part #
- MTP3055VL
- Store part #
- C898732
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
13 in stock
#C898732
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹321.77 | ₹321.77 |
| 10+ | ₹283.08 | ₹2,830.80 |
| 30+ | ₹259.00 | ₹7,770.00 |
| 100+ | ₹234.29 | ₹23,429.00 |
| 500+ | ₹223.11 | ₹1,11,555.00 |
| 800+ | ₹218.39 | ₹1,74,712.00 |
1 × ₹321.77
₹321.77
excl. GST
₹379.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per tube
MTP3055VL
₹321.77 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 114pF
- Ciss-Input Capacitance
- 570pF
- Pd - Power Dissipation
- 48W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 12A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 120mΩ@5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 10nC@5V
- Vgs
- ±15V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 800 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
This power MOSFET is designed to withstand high energy in avalanche and commutation modes. Specifically engineered for low-voltage, high-speed switching applications in power supplies, converters, and motor drives, these devices are particularly suited for bridge circuits where diode speed and commutation SOA are critical, while providing additional safety margin against accidental voltage transients.
Applications
- Power Supply - Converter - Motor Drive Control - Bridge Circuit
Key features
- Avalanche energy specified
- IDSS and VDS(on) specified at high temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK455-200B-VB#C20755186VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 15 | ₹150.44 · 15 in stock | View |
 | BUK456-200B-VB#C20755317VBsemi Elec · TO-220 | VBsemi Elec | TO-220 | 20 | ₹156.31 · 20 in stock | View |
 | CMP30N10#C5371894Cmos · TO-220 | Cmos | TO-220 | 130 | ₹48.33 · 130 in stock | View |
 | OSP30N06T#C20607806OSEN · TO-220AB | OSEN | TO-220AB | 195 | ₹23.51 · 195 in stock | View |
 | PHP20NQ20T-VB#C22389940VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 10 | ₹123.52 · 10 in stock | View |
