MSKSEMIDatasheet (PDF)

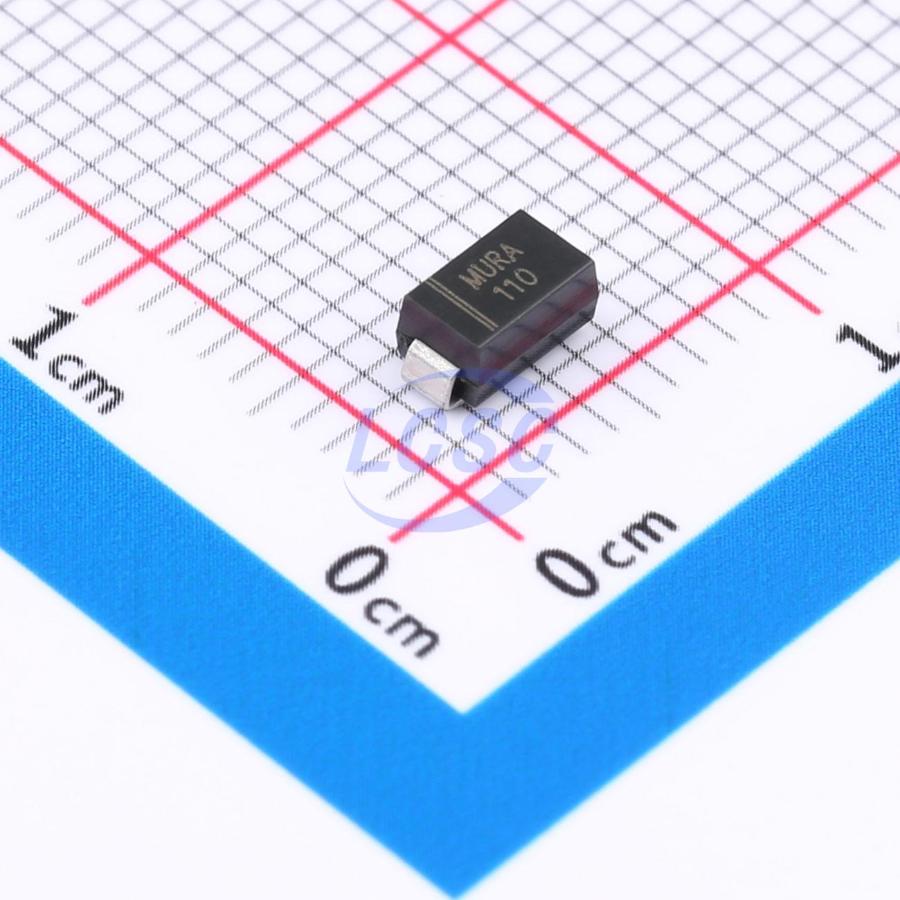

MURA110T3G-MS
35ns 100V 1 Independent 950mV@1A 1A SMA Single Diodes
SMARoHSActive
Diode 100V 1A SMA
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MURA110T3G-MS
- Store part #
- C19272821
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C19272821
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.75 | ₹93.75 |
| 50+ | ₹14.72 | ₹736.00 |
| 150+ | ₹12.99 | ₹1,948.50 |
| 500+ | ₹10.85 | ₹5,425.00 |
| 2,000+ | ₹9.88 | ₹19,760.00 |
| 4,000+ | ₹9.31 | ₹37,240.00 |
5 × ₹18.75
₹93.75
excl. GST
₹110.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MURA110T3G-MS
₹93.75 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Operating Junction Temperature Range
- -50℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 950mV@1A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Overview
Key features
- Glass passivated die construction
- Ideal for automatic assembly
- Low forward voltage drop, high efficiency
- Low power dissipation
- Ultrafast recovery time
- Plastic package material flammability classification UL 94V-0
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MURA120T3G-MS#C19272822MSKSEMI · SMA | MSKSEMI | SMA | 1,880 | ₹4.52 · 1,880 in stock | View |
 | ES1D#C5140046MSKSEMI · SMA | MSKSEMI | SMA | 1,900 | ₹1.87 · 1,900 in stock | View |
 | MURA160T3G-MS#C19272823MSKSEMI · SMA | MSKSEMI | SMA | 1,780 | ₹10.25 · 1,780 in stock | View |
 | MURA220T3G-MS#C19272824MSKSEMI · SMA | MSKSEMI | SMA | 3,340 | ₹9.58 · 3,340 in stock | View |
 | MURA230T3G-MS#C19272825MSKSEMI · SMA | MSKSEMI | SMA | 1,790 | ₹10.25 · 1,790 in stock | View |
