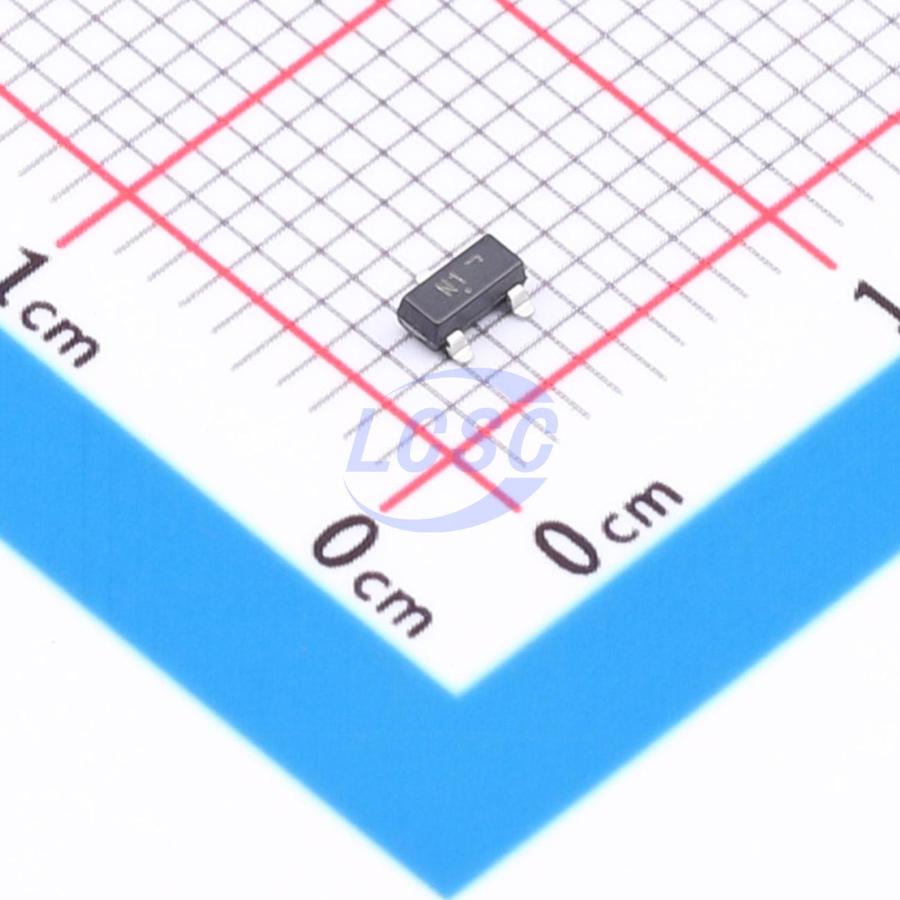

MVMBF0201NLT1G
N-Channel 20V 300mA 225mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET N-CH 20V 300mA SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- MVMBF0201NLT1G
- Store part #
- C891846
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
113 in stock
#C891846
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.15 | ₹68.15 |
| 10+ | ₹56.53 | ₹565.30 |
| 30+ | ₹51.60 | ₹1,548.00 |
| 100+ | ₹45.35 | ₹4,535.00 |
| 500+ | ₹42.56 | ₹21,280.00 |
| 1,000+ | ₹41.07 | ₹41,070.00 |
1 × ₹68.15
₹68.15
excl. GST
₹80.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MVMBF0201NLT1G
₹68.15 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 25pF
- Ciss-Input Capacitance
- 45pF
- Pd - Power Dissipation
- 225mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 750mΩ;1Ω
- Number
- 1 N-channel
- Gate Charge(Qg)
- 1.4nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.084 g
Overview
These miniature surface-mount MOSFETs feature low R<sub>DS(ON)</sub>, ensuring minimal power dissipation and energy savings, making them ideal for compact power management circuits.
Applications
- dc−dc converters
- power management in portable and battery−powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones
Key features
- Low RDS(ON) improves efficiency and extends battery life
- Miniature SOT-23 surface mount package saves board space
- MVMBF prefix for automotive and other applications requiring specific country of origin and controlled change requirements; AEC-Q101 compliant with PPAP capability
- Lead-free, RoHS compliant
