NCE

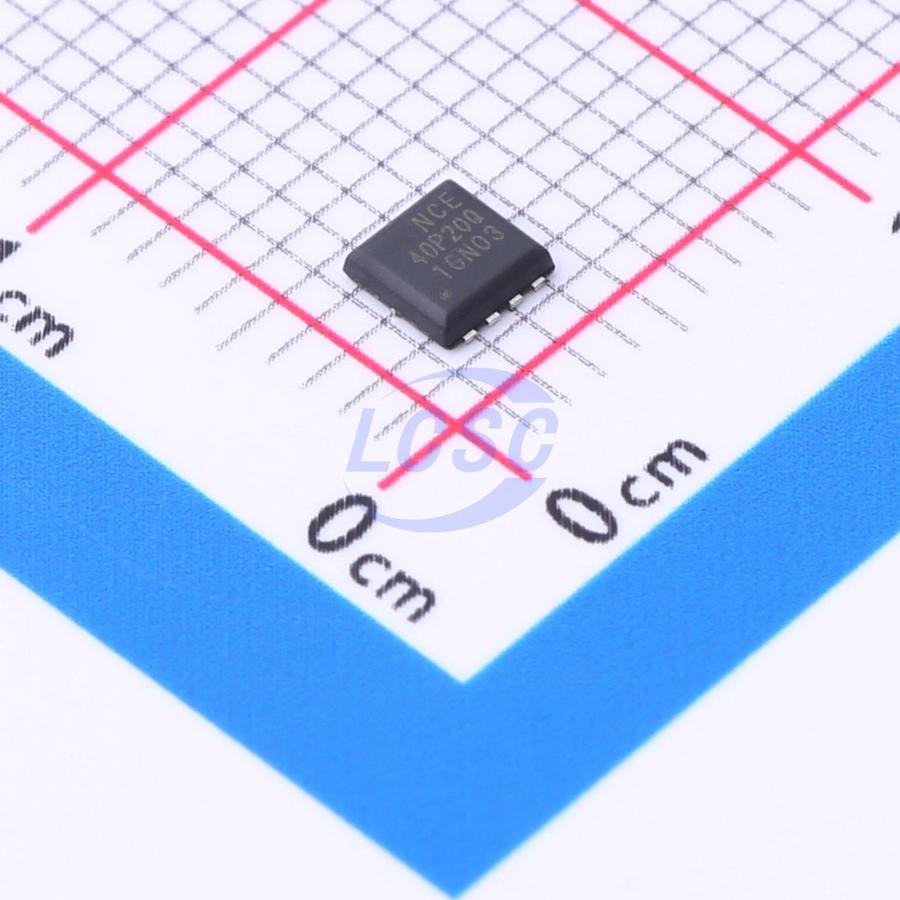

NCE40P20Q

P-Channel 40V 20A 30W Surface Mount DFN3.3x3.3-8L

DFN3.3x3.3-8LRoHSActive

MOSFET P-CH 40V 20A DFN3.3x3.3-8L

Manufacturer: NCE
Manufacturer part #: NCE40P20Q
Store part #: C2686564
Package / case: DFN3.3x3.3-8L
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,870 in stock

#C2686564

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
5+	₹66.56	₹332.80
50+	₹51.12	₹2,556.00
150+	₹44.60	₹6,690.00
500+	₹36.33	₹18,165.00
2,500+	₹32.85	₹82,125.00
5,000+	₹30.46	₹1,52,300.00

Quantity (min 5, multiples of 5)

5 × ₹66.56

₹332.80

excl. GST

₹392.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

NCE40P20Q

₹332.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 300pF
Ciss-Input Capacitance: 2.8nF
Pd - Power Dissipation: 30W
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 40V
Current - Continuous Drain(Id): 20A
Reverse Transfer Capacitance (Crss): 275pF
RDS(on): 28mΩ@4.5V
Number: 1 P-Channel
Gate Charge(Qg): 54nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 2.4V
Type: P-Channel

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.13 g

Overview

NCE40P20Q utilizes advanced trench technology to achieve excellent RDS(ON). This device is suitable for use as a load switch or in power management applications.

Applications

Power Management
Load Switch

Key features

VDS = -40V, ID = -20A
RDS(ON) < 18 mΩ at VGS = -10V
RDS(ON) < 28 mΩ at VGS = -4.5V
High power and high current handling capability
Lead-free
Surface mount package

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	NCE40P20Q1#C5208054NCE · DFN3.3x3.3-8L	NCE	DFN3.3x3.3-8L	3,140	₹113.06 · 3,140 in stock	View
	NCE60P18AQ#C2686559NCE · DFN-8L(3.3x3.3)	NCE	DFN-8L(3.3x3.3)	On request	₹33.59 · 0 in stock	View
