NCEDatasheet (PDF)

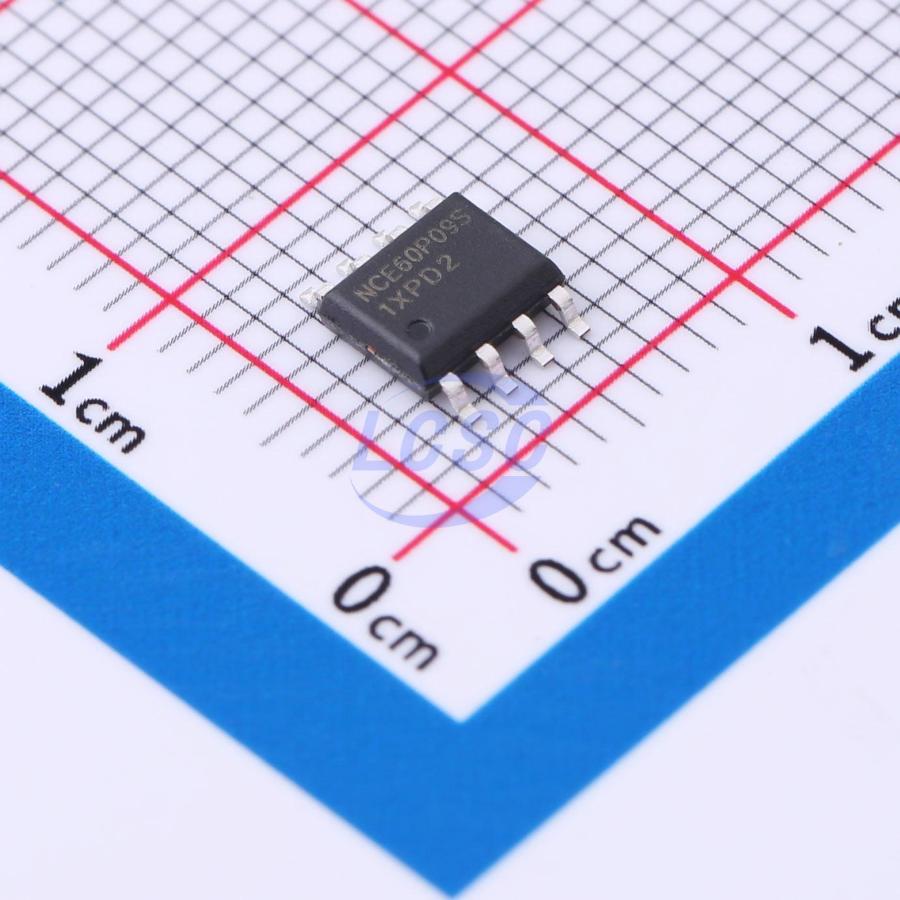

NCE60P09S
P-Channel 60V 9A 3W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET P-CH 60V 9A SOP-8
- Manufacturer
- NCE
- Manufacturer part #
- NCE60P09S
- Store part #
- C2686558
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,636 in stock
#C2686558
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.20 | ₹67.20 |
| 10+ | ₹53.28 | ₹532.80 |
| 30+ | ₹47.40 | ₹1,422.00 |
| 100+ | ₹39.80 | ₹3,980.00 |
| 500+ | ₹36.54 | ₹18,270.00 |
| 1,000+ | ₹34.58 | ₹34,580.00 |
1 × ₹67.20
₹67.20
excl. GST
₹79.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCE60P09S
₹67.20 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 112.7pF
- Ciss-Input Capacitance
- 2.049nF
- Pd - Power Dissipation
- 3W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 9A
- Reverse Transfer Capacitance (Crss)
- 88.7pF
- RDS(on)
- 88mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 35.1nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
The NCE60P09S utilizes advanced trench technology and design to achieve excellent RDS(ON) with low gate charge. It is suitable for a wide range of applications.
Applications
- Power switching applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- VDS = -60V, ID = -9A
- RDS(ON) < 38 mΩ at VGS = -10V
- High-density cell design for ultra-low on-resistance
- Fully characterized avalanche voltage and current
- Excellent stability and consistency with high EAS
- Superior package with good thermal dissipation performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE60P12AS#C502807NCE · SOP-8 | NCE | SOP-8 | 1,461 | ₹154.76 · 1,461 in stock | View |
| NCE60P09AS#C2686557NCE · SOP-8 | NCE | SOP-8 | On request | ₹47.24 · 0 in stock | View | |
