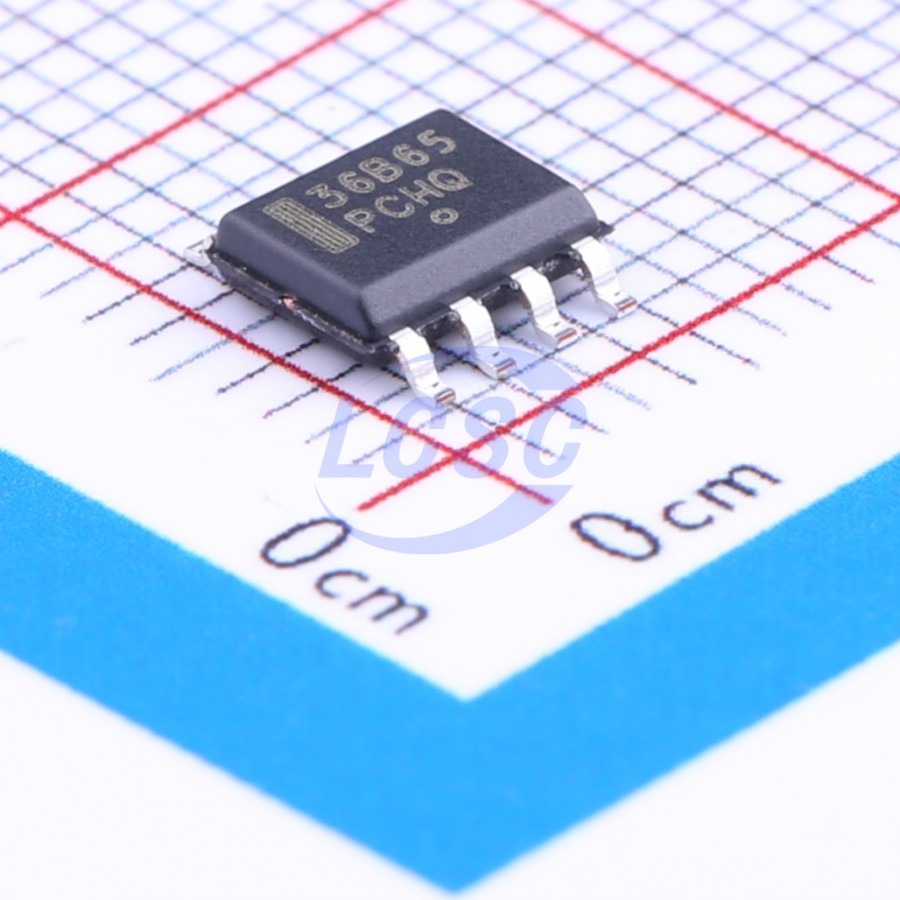

NCP1236BD65R2G

The NCP1236 is a new fixed−frequency current−mode controller featuring Dynamic Self−Supply (DSS). This device is pin−to−pin compatible with the previous NCP12xx families. The DSS function greatly simplifies the design of the auxiliary supply and the VCC capacitor by activating the internal startup current source to supply the controller during transients. Due to frequency foldback, the controller exhibits excellent efficiency in light load condition while still achieving very low standby power consumption. Internal frequency jittering, ramp compensation, and a versatile latch input make this controller an excellent candidate for converters where components cost is the key constraints. In addition, the controller includes a new high voltage circuitry that combines a start−up current source and a brown−out detector able to sense the input voltage either from the rectified ac line or the dc filtered bulk voltage. The high voltage sensing circuitry is used for the overpower protection purposes as well. Overpower protection, overload protection, and next protective features increases safety level of the final application. Finally, due to a careful design, the precision of critical parameters is well controlled over the entire temperature range -40°C to +125°C.

Applications

• AC−DC Adapters for Notebooks, LCD, and Printers
• Offline Battery Chargers
• Consumer Electronic Power Supplies
• Auxiliary/Housekeeping Power Supplies

Key features

• Fixed−Frequency Current−Mode Operation with Built−In Ramp Compensation
• 65 kHz or 100 kHz Oscillator Frequency
• Frequency Foldback then Skip Mode for Maximized Performance in Light Load and Standby Conditions
• Timer−Based Overload Protection with Latched (option A) or Auto−Recovery (option B) Operation, Shortened Overload Timer for Increased Safety (options C and D)
• High−voltage Current Source with Brown−Out detection and Dynamic Self−Supply, Simplifying the Design of the VCC Capacitor Series
• Frequency Modulation for Softened EMI Signature, including during Frequency Foldback mode
• Adjustable Overpower Compensation
• Latch−off Input for Severe Fault Conditions, Allowing Direct Connection of an NTC for Overtemperature Protection (OTP)
• VCC Operation up to 28 V, with Overvoltage Detection
• ± 500 mA Peak Source / Sink Current Drive Capability
• 4.0 ms Soft−Start
• Internal Thermal Shutdown
• Pin−to−Pin Compatible with the Existing NCP12xx
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
