onsemiDatasheet (PDF)

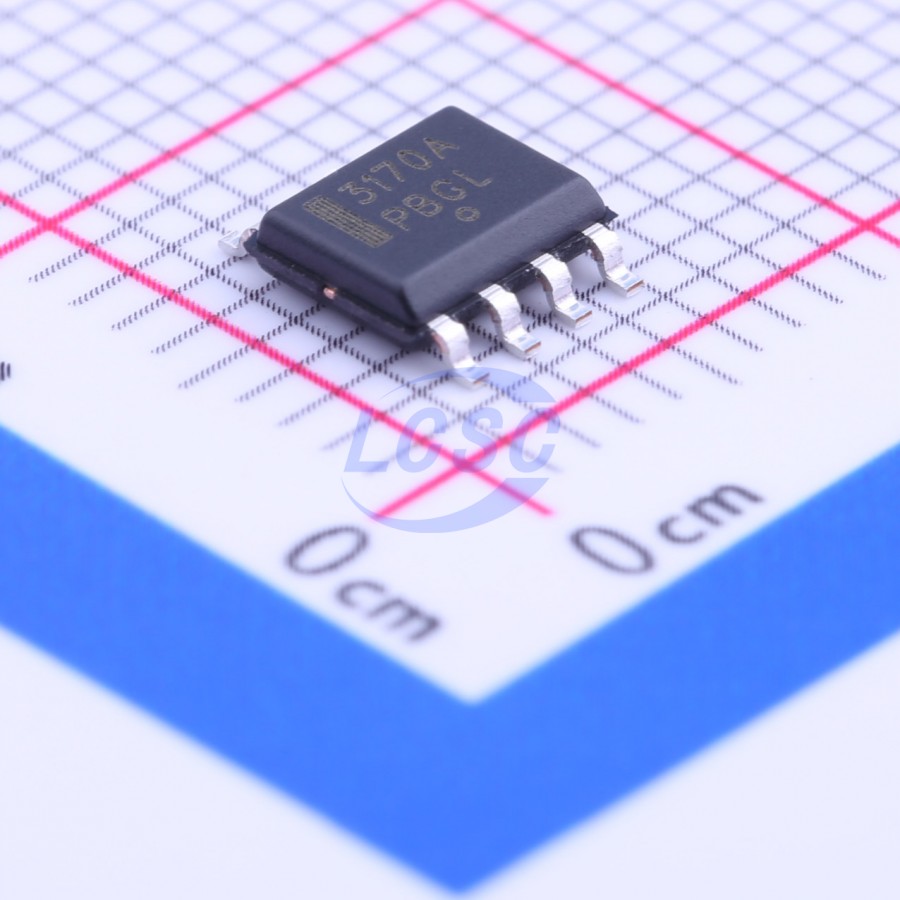

NCP3170ADR2G
500kHz Step-down type Adjustable 800mV~17.28V 3A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantActive
Synchronous PWM Switching Converter
- Manufacturer
- onsemi
- Manufacturer part #
- NCP3170ADR2G
- Store part #
- C145192
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2 in stock
#C145192
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.11 | ₹86.11 |
| 10+ | ₹68.49 | ₹684.90 |
| 30+ | ₹59.80 | ₹1,794.00 |
| 100+ | ₹51.11 | ₹5,111.00 |
| 500+ | ₹45.88 | ₹22,940.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹86.11
₹86.11
excl. GST
₹101.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCP3170ADR2G
₹86.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 500kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Operating status indication;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~17.28V
- Output Current
- 3A
- Quiescent Current
- 1.7mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.207 g
Overview
The NCP3170 is a current-mode, step down regulator with an integrated high-side PMOS switch and a low-side NMOS switch. It operates from a 4.5 V to 18 V input voltage range and supplies up to 3 A of load current. The duty ratio can be adjusted from 8% to 92% allowing a wide output voltage range. Features include enable control, Power-On Reset (POR), input under voltage lockout.
Applications
- Set Top Boxes
- DVD/Blu−ray Drives and HDD
- LCD Monitors and TVs
- Cable Modems
- PCIe Graphics Cards
- Telecom/Networking/Datacom Equipment
- Point of Load DC/DC Converters
Key features
- 4.5 V to 18 V Operating Input Voltage Range
- 90 mΩ High-Side, 25 mΩ Low-Side Switch
- FMEA Fault Tolerant During Pin Short Test
- 3 A Continuous Output Current
- Fixed 500 kHz and 1 MHz PWM Operation
- Cycle-by-Cycle Current Monitoring
- 1.5% Initial Output Accuracy
- Internal 4.6 ms Soft-Start
- Short-Circuit Protection
- Turn on Into Pre-bias
- Power Good Indication
- Light Load Efficiency
- Thermal Shutdown
- These are Pb.-Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AOZ1031AI#C2650325AOS · SOIC-8 | AOS | SOIC-8 | 28 | ₹215.77 · 28 in stock | View |
 | ZTP7194SH#C5155188ZILLTEK · SOP-8L | ZILLTEK | SOP-8L | On request | ₹16.00 · 0 in stock | View |
| ST1S40IDR#C126177ST · SOIC-8 | ST | SOIC-8 | 4 | ₹133.86 · 4 in stock | View | |
| ST1S41PHR#C2070789ST · SOIC-8 | ST | SOIC-8 | 2,105 | ₹174.48 · 2,105 in stock | View | |
 | MSMP1484EN-LF-Z#C49375223MSKSEMI · ESOP-8 | MSKSEMI | ESOP-8 | 3,250 | ₹41.77 · 3,250 in stock | View |
