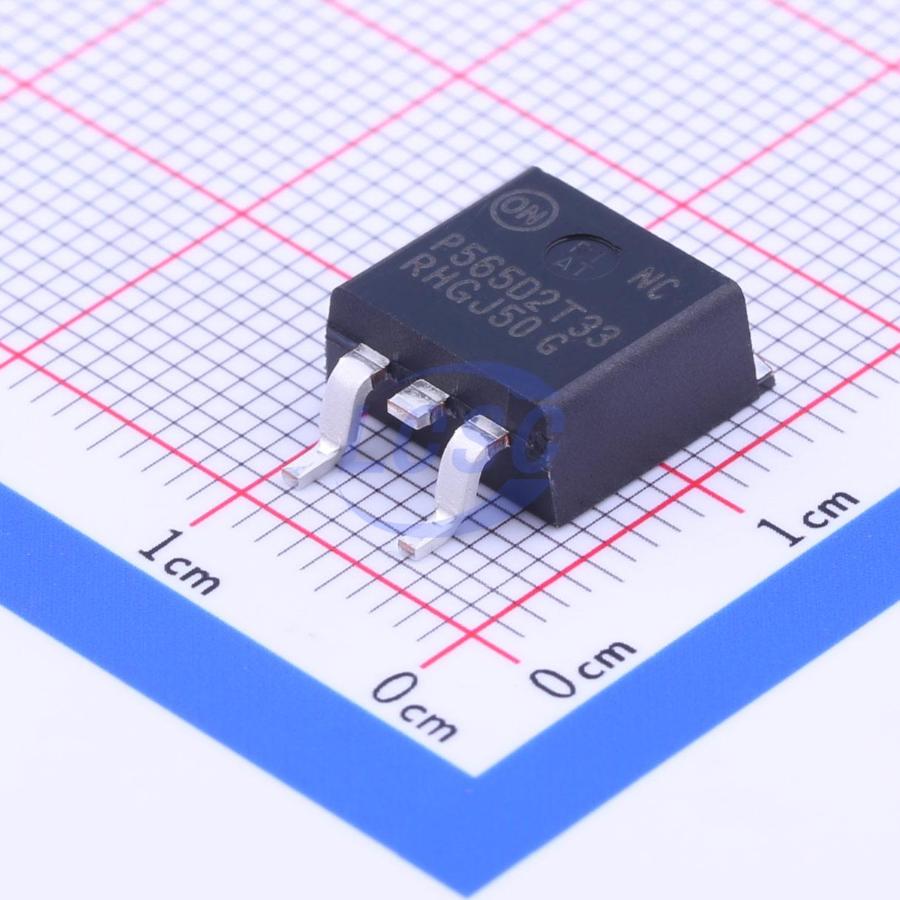

NCP565D2T33R4G

The NCP565/NCV565 low dropout linear regulator will provide 1.5 A at a fixed output voltage or an adjustable voltage down to 0.9 V. The fast loop response and low dropout voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes current limit, short circuit protection, and thermal shutdown.

Applications

• Servers
• ASIC Power Supplies
• Post Regulation for Power Supplies
• Constant Current Source

Key features

• Ultra Fast Transient Response (<1.0 μs)
• Low Ground Current (1.5 mA at Iload = 1.5 A)
• Low Dropout Voltage (0.9 V at Iload = 1.5 A)
• Low Noise (28 μVrms)
• 0.9 V Reference Voltage
• Adjustable Output Voltage from 7.7 V down to 0.9 V
• 1.2 V, 1.5 V, 2.8 V, 3.0 V, 3.3 V Fixed Output Versions. Other Fixed Voltages Available on Request
• Current Limit Protection (3.3 A Typ)
• Thermal Shutdown Protection (160°C)
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
