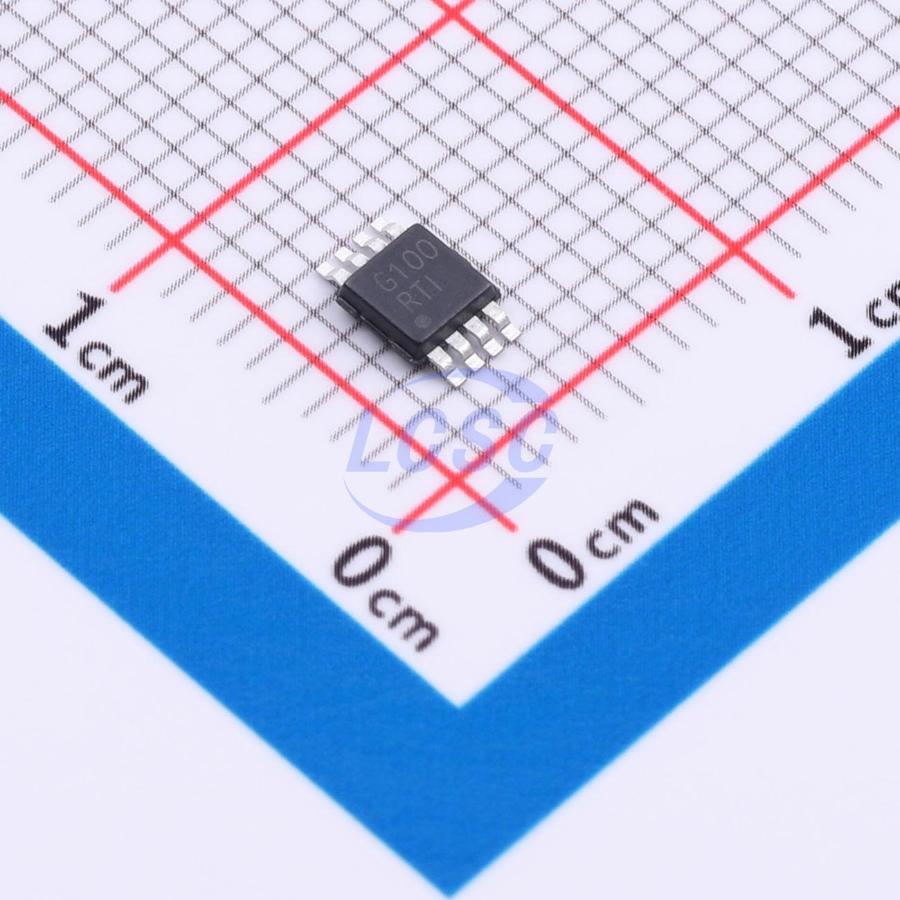

NCS21674DMG100R2G
2 -100mV~40V 500uV 2V/us 110dB 195uA 100V/V Micro8 Instrumentation, Op Amps, Buffer Amps
Micro8RoHSActive
Current-Shunt Monitors, 40 V Common Mode, Unidirectional, Single, Dual
- Manufacturer
- onsemi
- Manufacturer part #
- NCS21674DMG100R2G
- Store part #
- C5209245
- Package / case
- Micro8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69 in stock
#C5209245
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.22 | ₹101.22 |
| 10+ | ₹98.75 | ₹987.50 |
| 30+ | ₹97.31 | ₹2,919.30 |
| 100+ | ₹95.67 | ₹9,567.00 |
1 × ₹101.22
₹101.22
excl. GST
₹119.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
NCS21674DMG100R2G
₹101.22 for 1 + GST
Specifications
- Number of Channels
- 2
- Vcm - Common Mode Voltage
- -100mV~40V
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 2V/us
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 110dB
- Ib - Input Bias Current
- 1uA;100uA
- Input Offset Voltage Drift(Vos TC)
- 1uV/℃
- -3dB Bandwidth
- 350kHz
- Quiescent Current
- 195uA
- Gain
- 100V/V
- Features
- High-side detection;Low-side detection;Zero drift / auto-zero
- Input Voltage Noise Density
- 25nV/√Hz@1kHz
- Differential Voltage
- ±42V
- Single Supply
- 2.7V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- ECL99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.097 g
Overview
The NCS21673 and NCS21674 are a series of current sense amplifiers offered in gains of 20, 50, 100 and 200 V/V. These parts can measure voltage across shunts at common mode voltages from -0.1 V to 40 V, independent of supply voltage. This helps measuring of fast transients and allows the same type of part to be used for high side and low side current sensing. These devices can operate from a single 2.7 V to 5.5 V power supply. With a −3 dB BW of up to 350 kHz and a Slew Rate of 2 V/us typical, the fast detection of current changes is ensured. These parts are available in TSOP−5 and Micro−8 packages. The dual version makes current sensing in multiple points of a system both space and cost effective.
Applications
- High−Side Current Sensing
- Low−Side Current Sensing
- Power Management
- Automotive
Key features
- Wide Common Mode Input Range: -0.1 V to 40 V
- Supply Voltage Range: 2.7 V to 5.5 V
- Low Offset Voltage
- Low Offset Drift
- Low Current Consumption: 300 μA max per channel
- NCV Prefix for Automotive Grade 1 and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
