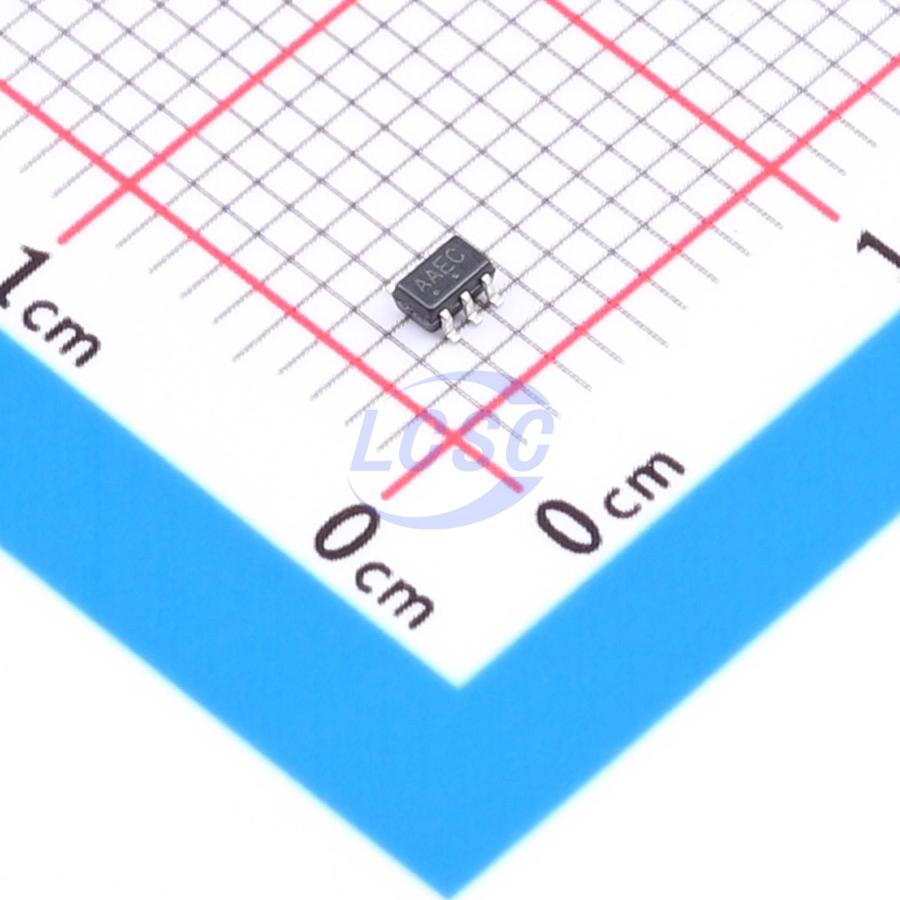

NCS21803SQT2G

29mA 1 10uV 700V/ms 137dB 200pA 75uA 1.5MHz Rail-to-rail input SOT-363(SC-88) Instrumentation, Op Amps, Buffer Amps RoHS

SOT-363(SC-88)ROHS3 CompliantActive

Precision Operational Amplifier, Zero-Drift, Supply, MHz

Manufacturer: onsemi
Manufacturer part #: NCS21803SQT2G
Store part #: C5209288
Package / case: SOT-363(SC-88)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

100 in stock

#C5209288

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
1+	₹216.39	₹216.39
10+	₹180.47	₹1,804.70
30+	₹160.88	₹4,826.40
100+	₹138.68	₹13,868.00
500+	₹128.66	₹64,330.00
1,000+	₹124.31	₹1,24,310.00

Quantity (min 1)

1 × ₹216.39

₹216.39

excl. GST

₹255.34 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCS21803SQT2G

₹216.39 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 29mA
Number of Channels: 1
Vos - Input Offset Voltage: 10uV
Slew Rate: 700V/ms
Input Offset Current(Ios): 300pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 137dB
Ib - Input Bias Current: 200pA
Input Offset Voltage Drift(Vos TC): 75nV/℃
Quiescent Current: 75uA
Gain Bandwidth Product: 1.5MHz
Features: Enable/shutdown function;Zero drift / auto-zero;ESD protection
Input Voltage Noise Density: 42nV/√Hz@1kHz
Rail to Rail: Rail-to-rail input
Single Supply: 1.6V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.084 g

Overview

The NCS21801, NCS21802, NCS21803, and NCS21804 are precision op amps featuring low input offset voltage and low offset drift over time and temperature. The common mode voltage range extends 100 mV beyond the supply rails, which makes it suitable for both high−side and low−side current sensing applications. The NCS2180x is available in single, dual, and quad channel configurations. All versions are specified for operation from -40°C to +125°C. NCV prefix parts are automotive grade 1 qualified and offer performance over the extended temperature range from -40°C to +150°C.

Applications

High−Side Current Sensing
Low−Side Current Sensing
Difference Amplifier
Instrumentation Amplifier
Power Management
Automotive

Key features

Input Offset Voltage: ±10 μV max
Offset Voltage Drift Over Temperature: ±5 nV/°C Typical
Common Mode Input Voltage Range: VSS - 0.1 V to VDD + 0.1 V
Supply Voltage Range: 1.8 V to 5.5 V
Extended Supply Voltage Range: 1.6 V to 5.5 V for TA = 0°C to 85°C
Unity Gain Bandwidth: 1.5 MHz
Quiescent Consumption: 100 μA Max per Channel
Enable Function Available on NCS21803
NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
TLV341AIDCKR#C2057566TI · SC-70-6	TI	SC-70-6	98	₹218.77 · 98 in stock	View
OPA310SIDCKR#C20625614TI · SC-70-6(SOT-363)	TI	SC-70-6(SOT-363)	100	₹110.80 · 100 in stock	View
OPA310SQDCKRQ1#C31726922TI · SC-70-6	TI	SC-70-6	32	₹77.58 · 32 in stock	View
MAX9636AXT+T#C2976351MAXIM · SC-70-6	MAXIM	SC-70-6	1,300	₹158.81 · 1,300 in stock	View
GS8631NH-CR#C52211929Gainsil · SC-70-6	Gainsil	SC-70-6	2,995	₹33.19 · 2,995 in stock	View
