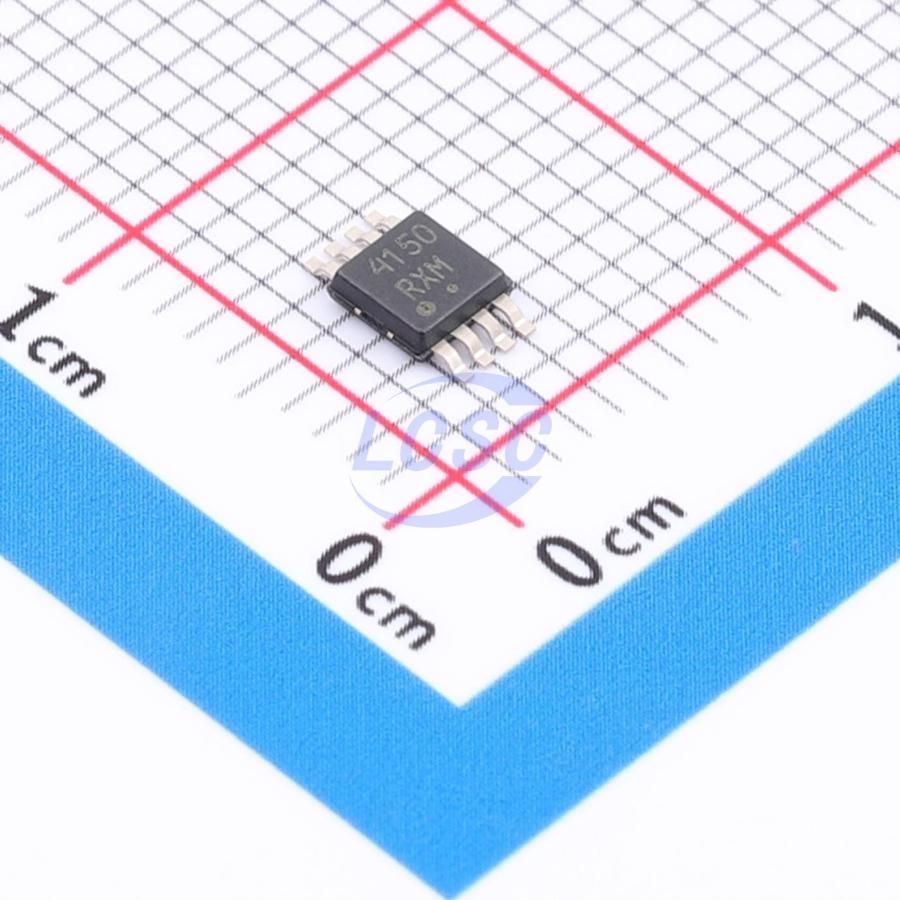

NCS7041DM3G050R2G

The NCS7041 and NCV7041 are high voltage, high resolution, current sense amplifiers. They feature gain options of 14, 20, 50, and 100 ΔV/V, with a maximum ±0.3% gain error over the entire temperature range. Each part consists of a preamplifier and buffer with access to output and input via A1 and A2 pins for an intermediate filter network or modified gain. These parts offer excellent input common−mode rejection from -6 V to 80 V. The NCS7041 can perform unidirectional or bidirectional current measurements across a sense resistor in a variety of applications. Automotive qualified options are available under NCV prefix. All versions are specified over the extended operating temperature range from -40°C to 150°C.

Applications

• Telecom Equipment
• Power Supply Designs
• Diesel Injection Control
• Automotive
• Motor Control

Key features

• Gain Bandwidth: 100 kHz
• Input Offset Voltage: ±300 μV Max
• Input Offset Drift over Temperature: ±3 μV/°C Max
• Gain Error: ±0.3% Max
• Quiescent Current: 1.5 mA Typ
• Supply Voltage: 3 V to 5.5 V
• Common−Mode Input Voltage Range: -6 V to 80 V
• CMRR: 85 dB Min
• PSRR: 75 dB Min
• Low−pass Filter (1−pole or 2−pole)
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These are Pb−Free Devices
