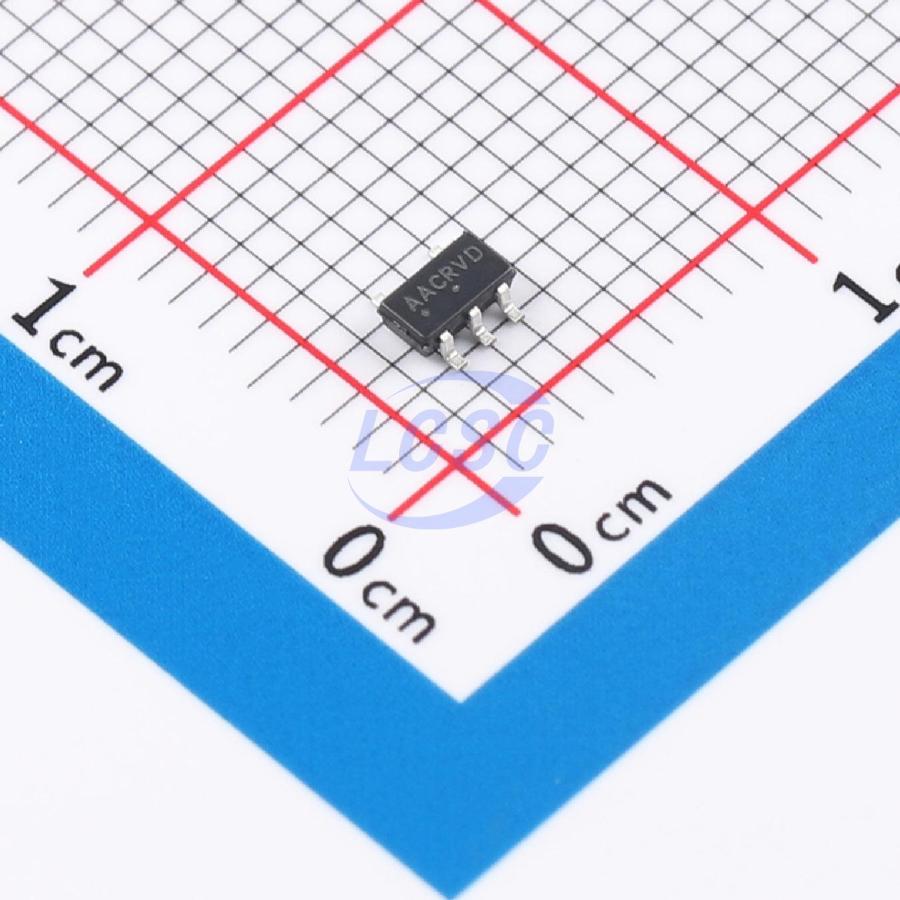

NCS7101SN1T1G
72mA 1 9mV 3V/us 1pA 65dB 1.13mA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-10 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-10ROHS3 CompliantActive
Rail-to-Rail Operational Amplifier
- Manufacturer
- onsemi
- Manufacturer part #
- NCS7101SN1T1G
- Store part #
- C603850
- Package / case
- SOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C603850
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.72 | ₹115.72 |
| 10+ | ₹112.92 | ₹1,129.20 |
| 30+ | ₹111.18 | ₹3,335.40 |
| 100+ | ₹109.47 | ₹10,947.00 |
1 × ₹115.72
₹115.72
excl. GST
₹136.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NCS7101SN1T1G
₹115.72 for 1 + GST
Specifications
- Output Current
- 72mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 9mV
- Slew Rate
- 3V/us
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 65dB
- Input Offset Voltage Drift(Vos TC)
- 8uV/℃
- Quiescent Current
- 1.13mA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 140nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~10V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.02 g
Overview
The NCS7101 operational amplifier provides rail−to−rail operation on both the input and output. The output can swing within 50 mV of each rail. This rail−to−rail operation enables the user to make full use of the entire supply voltage range available. It is designed to work at very low supply voltages (1.8 V and ground), yet can operate with a supply of up to 10 V and ground. The NCS7101 is available in the space saving SOT−23−5 package with two industry standard pinouts.
Applications
- Dual NiCd/NiMH Cell Powered Systems
- Portable Communication Devices
- Low Voltage Active Filters
- Power Supply Monitor and Control
- Interface to DSP
Key features
- Low Voltage, Single Supply Operation (1.8 V and Ground to 10 V and Ground)
- 1.0 pA Input Bias Current
- Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V
- Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V
- No Phase Reversal on the Output for Over−Driven Input Signals
- Input Offset Trimmed to 1.0 mV
- Low Supply Current (ID = 1.0 mA)
- Works Down to Two Discharged NiCd Battery Cells
- ESD Protected Inputs Up to 2.0 kV
- These Devices are Pb −Free and are RoHS Compliant
- AEC−Q100 Qualified and PPAP Capable
- *NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
