onsemi

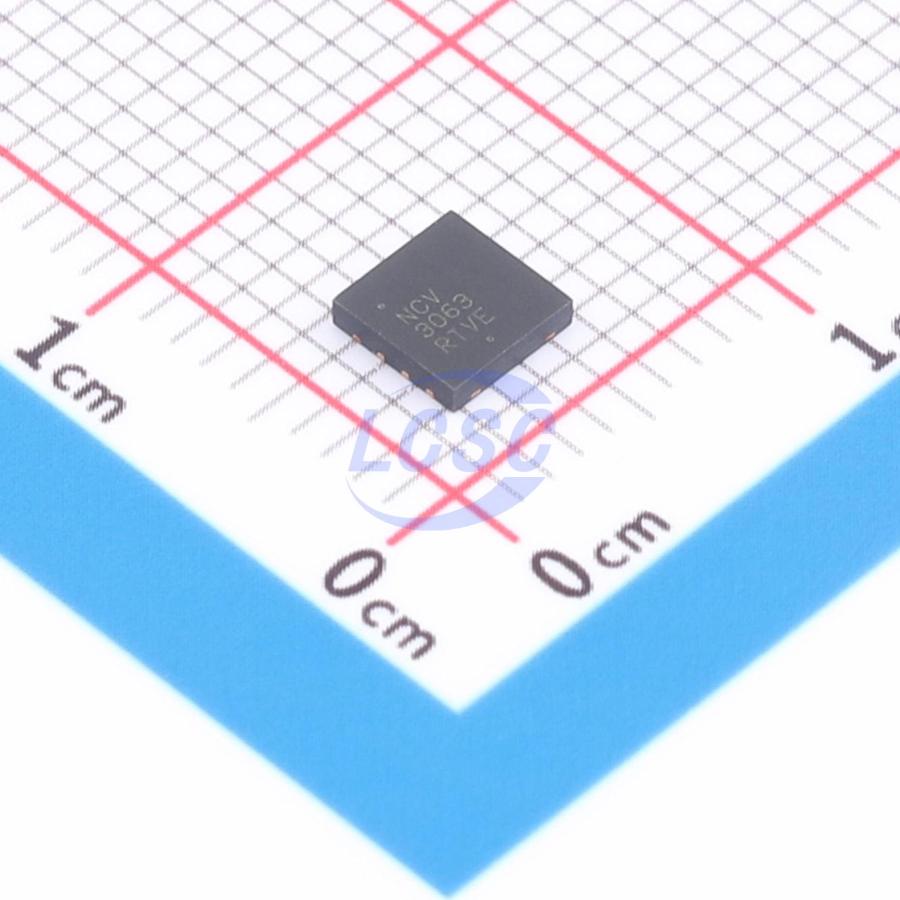

NCV3063MNTXG

150kHz Buck-Boost Adjustable 1.5A DFN-8-EP(4x4) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-8-EP(4x4)ROHS3 CompliantActive

NCP3063 Series Switching Regulators, 1.5 A Output Current

Manufacturer: onsemi
Manufacturer part #: NCV3063MNTXG
Store part #: C895027
Package / case: DFN-8-EP(4x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5 in stock

#C895027

Stock & price checked 41 h ago

Quantity	Unit price	Pack price
1+	₹271.53	₹271.53
10+	₹265.13	₹2,651.30
30+	₹261.08	₹7,832.40
100+	₹256.81	₹25,681.00

Quantity (min 1)

1 × ₹271.53

₹271.53

excl. GST

₹320.41 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

NCV3063MNTXG

₹271.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 150kHz
Function: Buck-Boost
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Boost;Buck;Inverting
Operating Voltage: 40V
Switch tube (built-in/external): Built-in
Output Current: 1.5A
Quiescent Current: 7mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.47 g

Overview

- The NCP3063 Series is a higher frequency upgrade to the popular MC34063A and MC33063A monolithic DC−DC converters. These devices consist of an internal temperature compensated reference, comparator, a controlled duty cycle oscillator with an active current limit circuit, a driver and a high current output switch. This series was specifically designed to be incorporated in Step−Down, Step−Up and Voltage−Inverting applications with a minimum number of external components. - The NCP3063 is a monolithic power switching regulator optimized for dc to dc converter applications. The combination of its features enables the system designer to directly implement step−up, step−down, and voltage− inverting converters with a minimum number of external components. Potential applications include cost sensitive consumer products as well as equipment for industrial markets.

Applications

Step−Down, Step−Up and Inverting supply applications
High Power LED Lighting
Battery Chargers

Key features

Operation to 40 V Input
Low Standby Current
Output Switch Current to 1.5 A
Output Voltage Adjustable
Frequency Operation of 150 kHz
Precision 1.5% Reference
New Features: Internal Thermal Shutdown with Hysteresis Cycle−by−Cycle Current Limiting
Pb−Free Packages are Available
