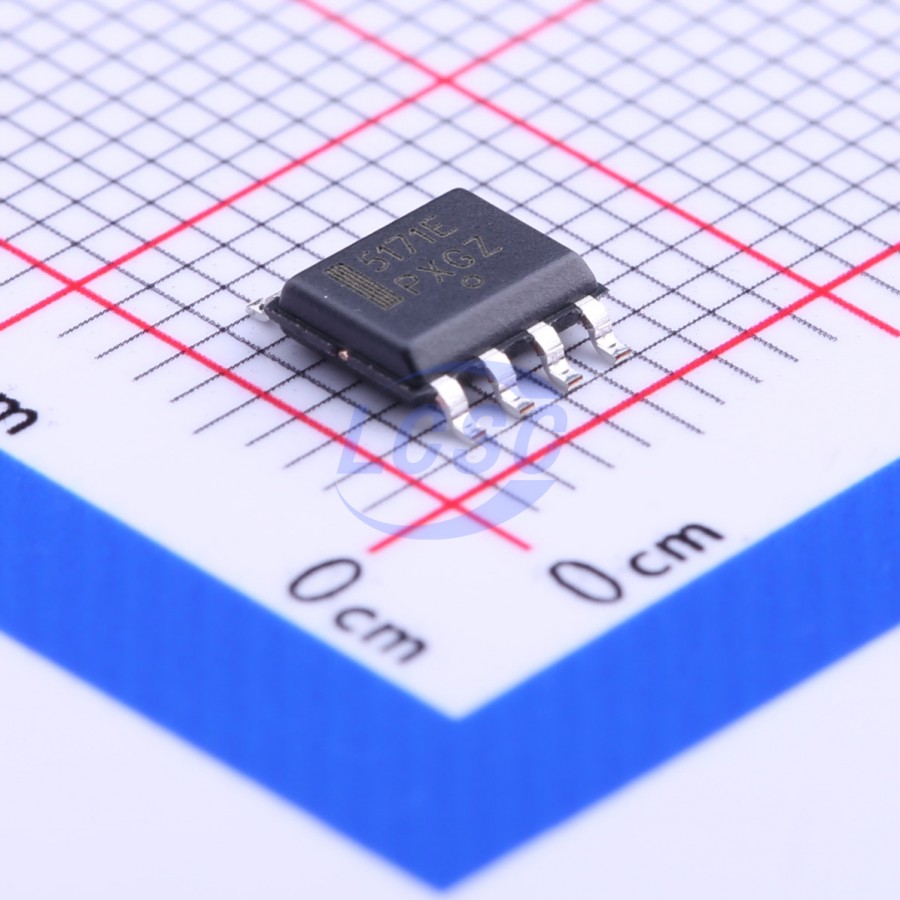

NCV5171EDR2G

The NCV5171/73 products are 280 kHz/560 kHz switching regulators with a high efficiency, 1.5 A integrated switch. The parts operate over a wide input voltage range, from 2.7 V to 30 V. The flexibility of the design allows the chip to operate in most power supply configurations, including boost, flyback, forward, inverting, and SEPIC. The ICs utilize current mode architecture, which allows excellent load and line regulation, as well as a practical means for limiting current. Combining high frequency operation with a highly integrated regulator circuit results in an extremely compact power supply solution. The circuit design includes provisions for features such as frequency synchronization, shutdown, and feedback controls for positive voltage regulation. These parts are pin−to−pin compatible with LT1372/1373.

Key features

• Integrated Power Switch: 1.5 A Guaranteed
• Wide Input Range: 2.7 V to 30 V
• High Frequency Allows for Small Components
• Minimum External Components
• Easy External Synchronization
• Built in Overcurrent Protection
• Frequency Foldback Reduces Component Stress During an Overcurrent Condition
• Thermal Shutdown with Hysteresis
• Shut Down Current: 50 μA Maximum
• Pin−to−Pin Compatible with LT1372/1373
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements -40℃ to 125℃
• These are Pb−Free Devices
