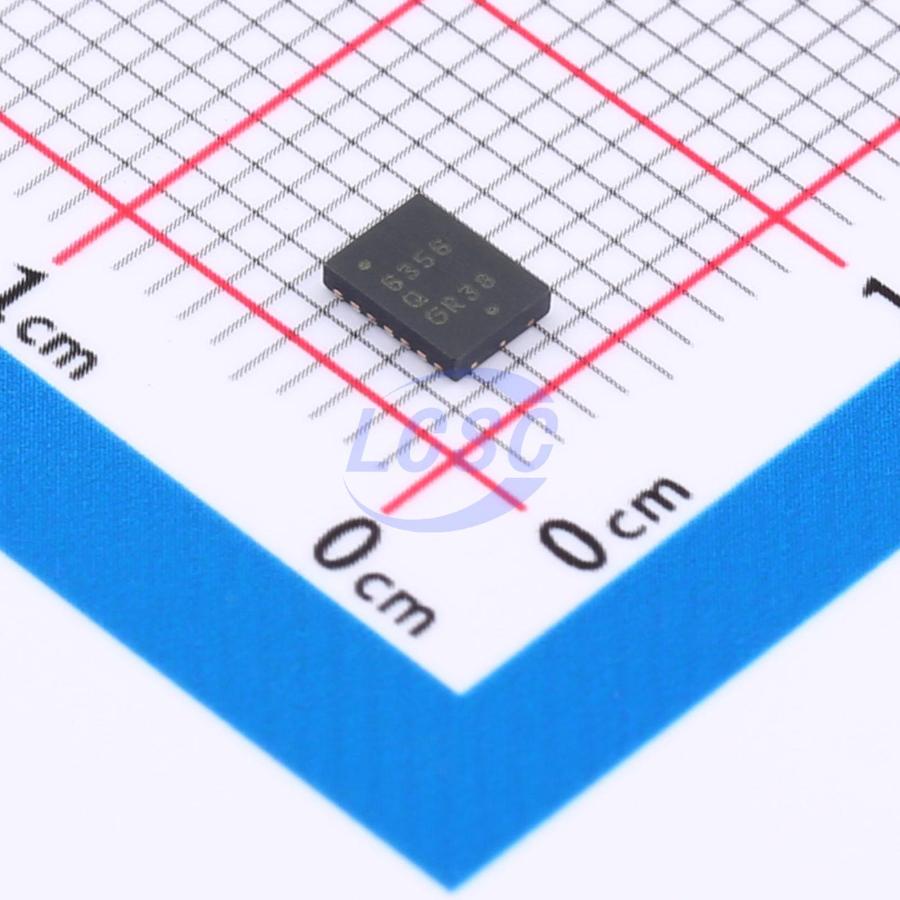

NCV6356QMTWTXG

Step-down type 2.4MHz Adjustable 5A 600mV~1.4V DFN-14(3x4) Voltage Regulators - DC DC Switching Regulators RoHS

DFN-14(3x4)ROHS3 CompliantActive

5A Synchronous Buck Converter

Manufacturer: onsemi
Manufacturer part #: NCV6356QMTWTXG
Store part #: C603978
Package / case: DFN-14(3x4)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

50 in stock

#C603978

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹339.87	₹339.87
10+	₹332.26	₹3,322.60
30+	₹327.26	₹9,817.80
100+	₹322.26	₹32,226.00

Quantity (min 1)

1 × ₹339.87

₹339.87

excl. GST

₹401.05 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

NCV6356QMTWTXG

₹339.87 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Frequency - Switching: 2.4MHz
Number of Outputs: 1
Features: Adjustable current limiting;Overcurrent Protection;Light load efficient mode;Dynamic voltage scaling;Output discharge;Operating status indication
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Current: 5A
Output Voltage: 600mV~1.4V
Quiescent Current: 60uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.074 g

Overview

The NCV6356 is a synchronous AOT (Adaptive On−time) buck converter optimized to supply the different sub systems of automotive applications post regulation system up to 5 V input. The device is able to deliver up to 5.0 A, with programmable output voltage from 0.6 V to 1.4 V. Operation at up to 2.4 MHz switching frequency allows the use of small components. Synchronous rectification and automatic PFM Pseudo−PWM (PPWM) transitions improve overall solution efficiency. The NCV6356 is in low profile 3.0 x 4.0 mm DFN−14 package.

Applications

Snap Dragon
Automotive POL
Instrumentation, Clusters
Infotainment
ADAS System (Vision, Radar)

Key features

Input Voltage Range from 2.5 V to 5.5 V: Battery, 3.3 V and 5.0 V Rail Powered Applications
Power Capability: 3.0 A Ta = 105°C - 5.0 A Ta = 85°C
Programmable Output Voltage: 0.6 V to 1.4 V in 6.25 mV Steps
Up to 2.4 MHz Switching Frequency with On Chip Oscillator
Uses 330 nH Inductor and at least 22 μF Capacitors for Optimized Footprint and Solution Thickness
PFM/PPWM Operation for Optimum Efficiency
Low 60 μA Quiescent Current
I²C Control Interface with Interrupt and Dynamic Voltage Scaling Support
Enable / VSEL Pins, Power Good / Interrupt Signaling
Thermal Protections and Temperature Management
Transient Load Helper: Share the Same Rail with Another Rail
3.0 x 4.0 mm / 0.5 mm Pitch DFN 14 Package
AEC−Q100 Qualified and PPAP Capable

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	NCV6356BMTWTXG#C893015onsemi · DFN-14-EP(3x4)	onsemi	DFN-14-EP(3x4)	On request	₹171.22 · 0 in stock	View
	NCV6356CMTWTXG#C893016onsemi · DFN-14-EP(3x4)	onsemi	DFN-14-EP(3x4)	On request	₹249.20 · 0 in stock	View
