NCV7101SN1T1G

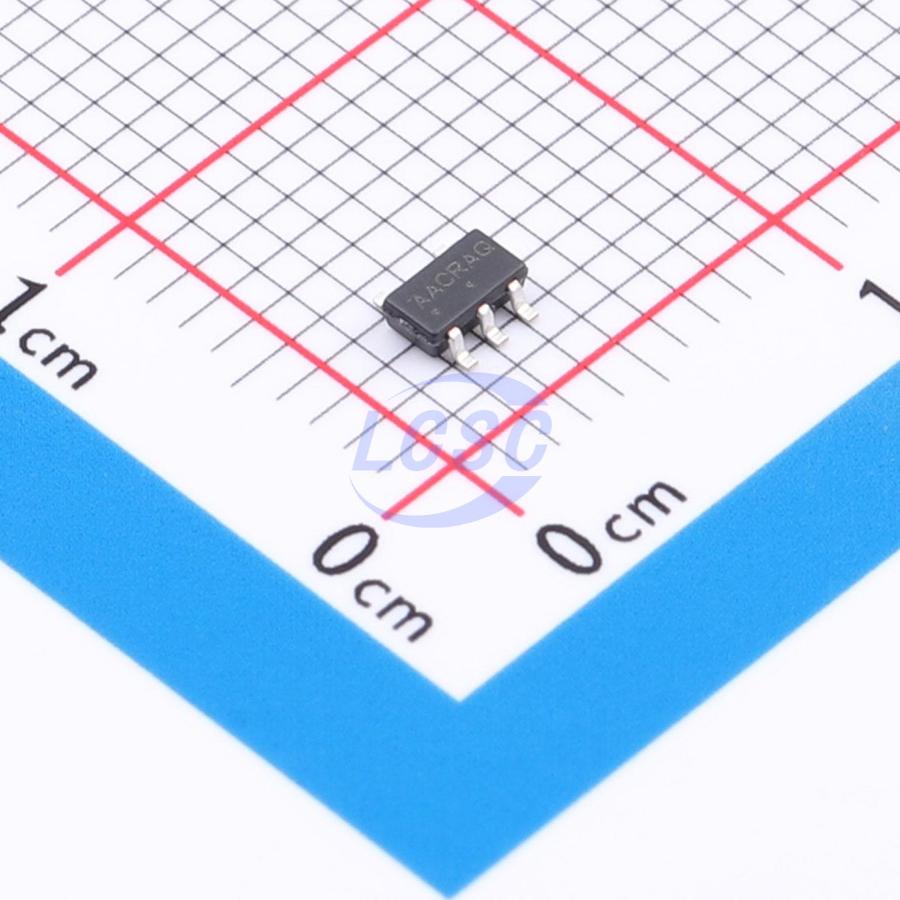

The NCS7101 operational amplifier provides rail−to−rail operation on both the input and output. The output can swing within 50 mV of each rail. This rail−to−rail operation enables the user to make full use of the entire supply voltage range available. It is designed to work at very low supply voltages (1.8 V and ground), yet can operate with a supply of up to 10 V and ground. The NCS7101 is available in the space saving SOT−23−5 package with two industry standard pinouts. The NCS7101 is a rail−to−rail input, rail−to−rail output operational amplifier that features guaranteed 1.8 volt operation. This feature is achieved with the use of a modified analog CMOS process that allows the implementation of depletion MOSFET devices. The amplifier has a 1.0 MHz gain bandwidth product, 1.2 V/μs slew rate and is operational over a power supply range less than 1.8 V to as high as 10 V.

Applications

• Dual NiCd/NiMH Cell Powered Systems
• Portable Communication Devices
• Low Voltage Active Filters
• Power Supply Monitor and Control
• Interface to DSP

Key features

• Low Voltage, Single Supply Operation (1.8 V and Ground to 10 V and Ground)
• 1.0 pA Input Bias Current
• Unity Gain Bandwidth of 1.0 MHz at 5.0 V, 0.9 MHz at 1.8 V
• Output Voltage Swings Within 50 mV of Both Rails @ 1.8 V
• No Phase Reversal on the Output for Over−Driven Input Signals
• Input Offset Trimmed to 1.0 mV
• Low Supply Current (ID = 1.0 mA)
• Works Down to Two Discharged NiCd Battery Cells
• ESD Protected Inputs Up to 2.0 kV
• These Devices are Pb −Free and are RoHS Compliant
• AEC−Q100 Qualified and PPAP Capable
• *NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
