onsemiDatasheet (PDF)

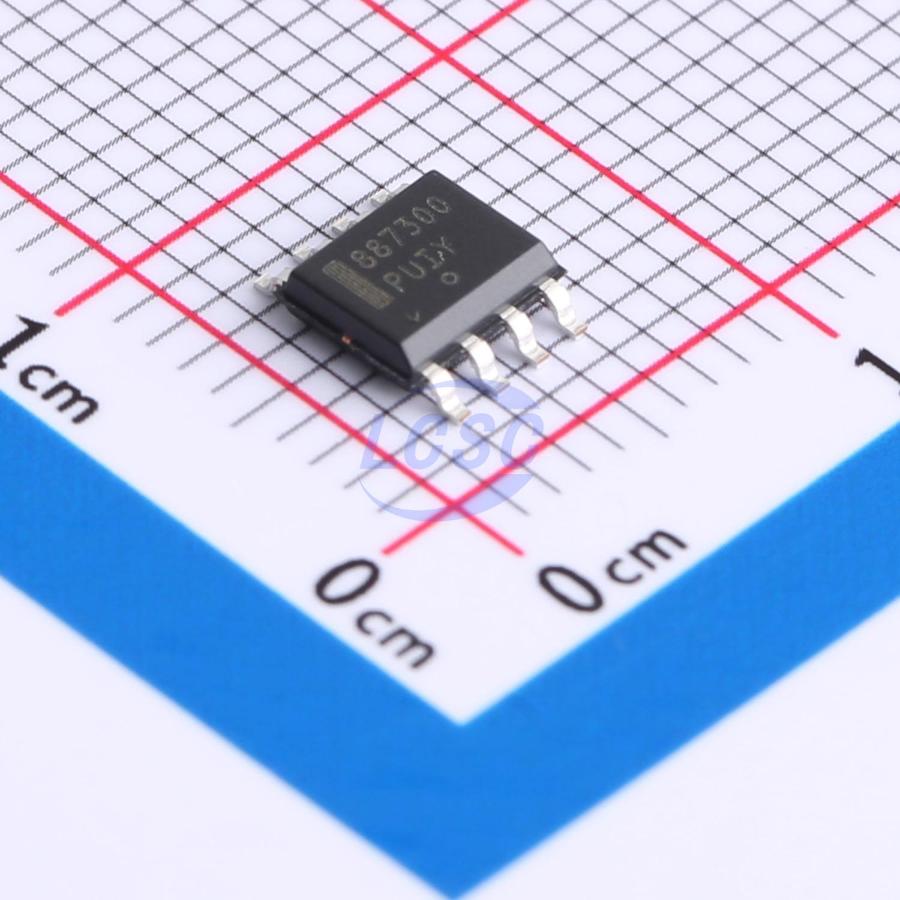

NCV887300D1R2G
360kHz~440kHz Boost Adjustable 800mA SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS3 CompliantDiscontinued
Automotive Grade Non-Synchronous Boost Controller
- Manufacturer
- onsemi
- Manufacturer part #
- NCV887300D1R2G
- Store part #
- C604107
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C604107
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹438.63 | ₹438.63 |
| 10+ | ₹377.40 | ₹3,774.00 |
| 30+ | ₹341.24 | ₹10,237.20 |
| 100+ | ₹304.48 | ₹30,448.00 |
| 500+ | ₹287.62 | ₹1,43,810.00 |
| 1,000+ | ₹280.03 | ₹2,80,030.00 |
1 × ₹438.63
₹438.63
excl. GST
₹517.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NCV887300D1R2G
₹438.63 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Frequency - Switching
- 360kHz~440kHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Frequency synchronization;External compensation
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 3.2V~40V
- Switch tube (built-in/external)
- External
- Output Current
- 800mA
- Quiescent Current
- 2uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.35 g
Overview
The NCV8873 is an adjustable output non−synchronous boost controller which drives an external N−channel MOSFET. The device uses peak current mode control with internal slope compensation. The IC incorporates an internal regulator that supplies charge to the gate driver. Protection features include internally−set soft−start, undervoltage lockout, cycle−by−cycle current limiting and thermal shutdown. Additional features include low quiescent current sleep mode and externally−synchronizable switching frequency.
Key features
- Peak Current Mode Control with Internal Slope Compensation
- 0.2 V ±3% Reference Voltage for Constant Current Loads
- Fixed Frequency Operation
- Wide Input Voltage Range of 3.2 V to 40 V, 45 V Load Dump
- Input Undervoltage Lockout (UVLO)
- Internal Soft−Start
- Low Quiescent Current in Sleep Mode
- Cycle−by−Cycle Current Limit Protection
- Thermal Shutdown (TSD)
- This is a Pb−Free Device
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
