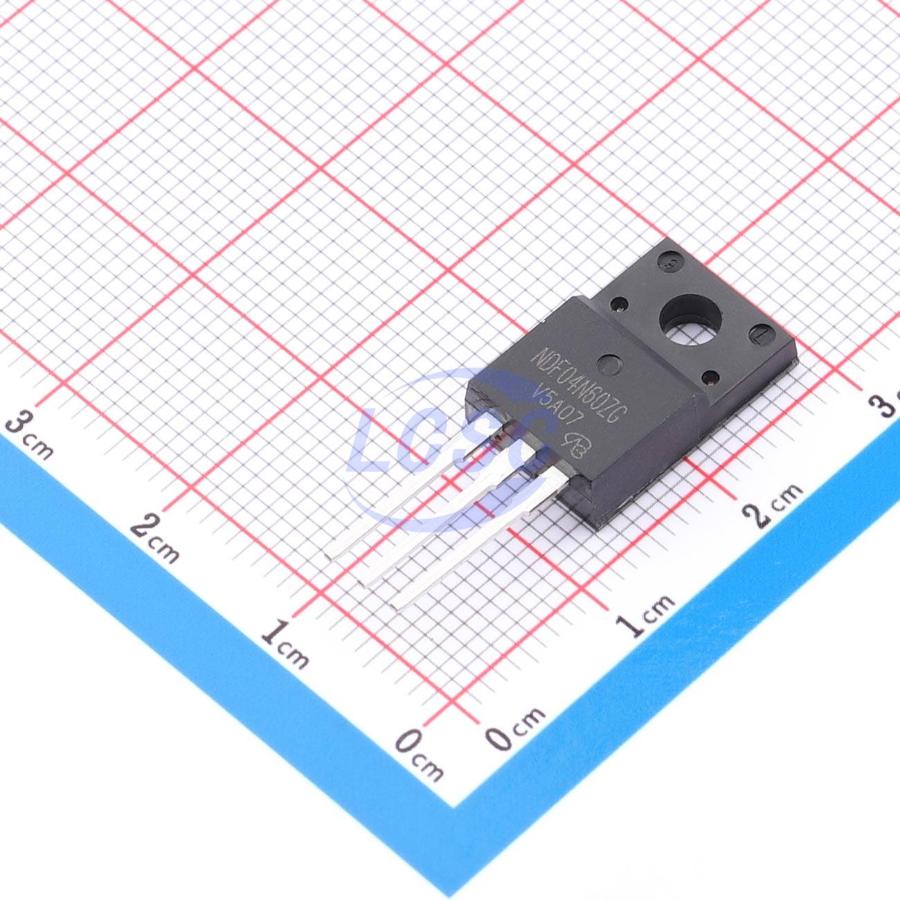

NDF04N60ZG-VB
N-Channel 650V 4A 30W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 4A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NDF04N60ZG-VB
- Store part #
- C5137386
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C5137386
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.04 | ₹89.04 |
| 10+ | ₹74.23 | ₹742.30 |
| 50+ | ₹56.39 | ₹2,819.50 |
| 100+ | ₹49.20 | ₹4,920.00 |
| 500+ | ₹44.85 | ₹22,425.00 |
| 1,000+ | ₹42.46 | ₹42,460.00 |
1 × ₹89.04
₹89.04
excl. GST
₹105.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
NDF04N60ZG-VB
₹89.04 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 177pF
- Current - Continuous Drain(Id)
- 4A
- Ciss-Input Capacitance
- 1.08nF
- Pd - Power Dissipation
- 30W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 2.5Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 48nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.565 g
Overview
MP180N06 utilizes advanced trench technology to deliver excellent drain-to-source on-resistance (RDS(ON)) and low gate charge, suitable for a wide range of applications.
Applications
- Power switching applications
- Hard switching and high-frequency circuits
- Uninterruptible power supplies
Key features
- Low Gate Charge Q₉ Results in Simple Drive Requirement
- Improved Gate, Avalanche and Dynamic dV/dt Ruggedness
- Fully Characterized Capacitance and Avalanche Voltage and Current
- Compliant to RoHS directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CEF04N65-VB#C19711235VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹72.90 · 5 in stock | View |
 | CEF04N6-VB#C20417654VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹75.62 · 20 in stock | View |
 | STK0465F-VB#C20755600VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
 | JCS4N60FC-O-F-N-B-VB#C20755674VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 15 | ₹75.62 · 15 in stock | View |
 | 5N60L-TF1-T-VB#C22389701VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹72.90 · 10 in stock | View |
