VBsemi ElecDatasheet (PDF)

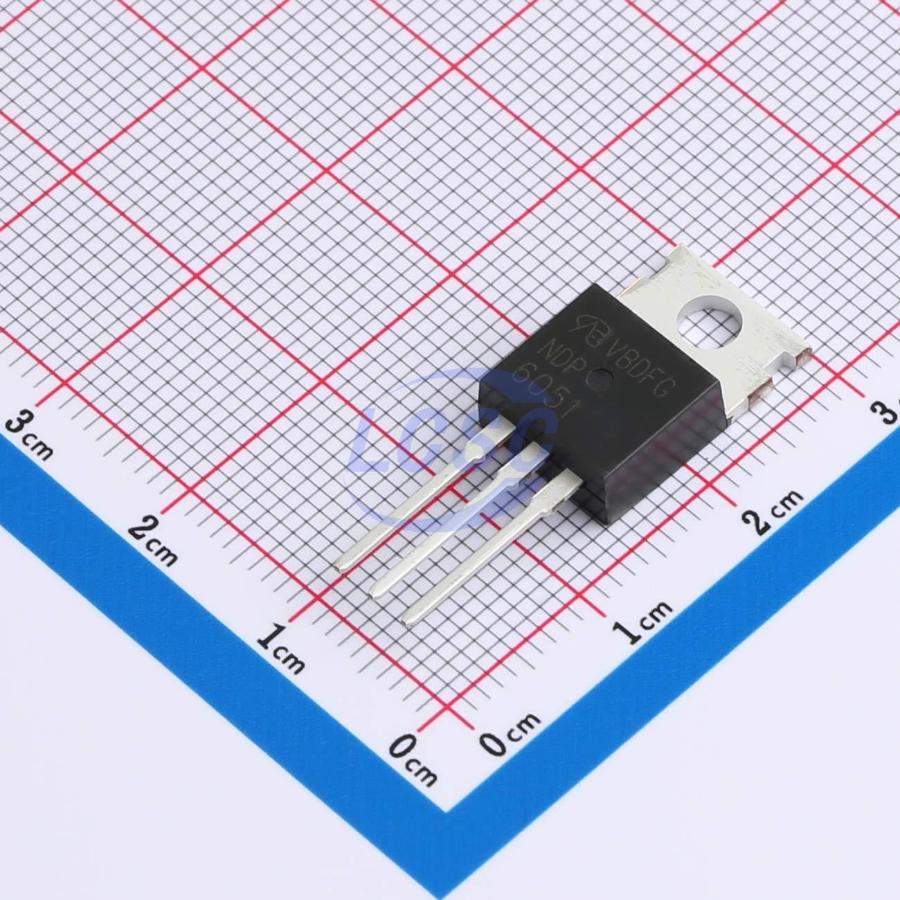

NDP6051-VB
N-Channel 60V 60A 136W Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 60V 60A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- NDP6051-VB
- Store part #
- C22389201
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389201
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹107.14 | ₹107.14 |
| 10+ | ₹87.17 | ₹871.70 |
| 50+ | ₹77.09 | ₹3,854.50 |
| 100+ | ₹67.22 | ₹6,722.00 |
| 500+ | ₹61.14 | ₹30,570.00 |
| 1,000+ | ₹58.19 | ₹58,190.00 |
1 × ₹107.14
₹107.14
excl. GST
₹126.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
NDP6051-VB
₹107.14 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 60A
- Output Capacitance(Coss)
- 570pF
- Ciss-Input Capacitance
- 4.2nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V;13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.57 g
Overview
Key features
- Junction temperature 175 °C
- Trench power MOSFET
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STP60NF06L-VB#C19188125VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 23 | ₹137.59 · 23 in stock | View |
 | PHP54N06T-VB#C19626853VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 50 | ₹107.14 · 50 in stock | View |
 | AP9972GP-HF-VB#C19632088VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 3 | ₹107.14 · 3 in stock | View |
 | 120N06N-VB TO220#C20755014VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 12 | ₹102.93 · 12 in stock | View |
 | IPP77N06S2-12-VB#C20755665VBsemi Elec · TO-220AB | VBsemi Elec | TO-220AB | 20 | ₹107.14 · 20 in stock | View |
