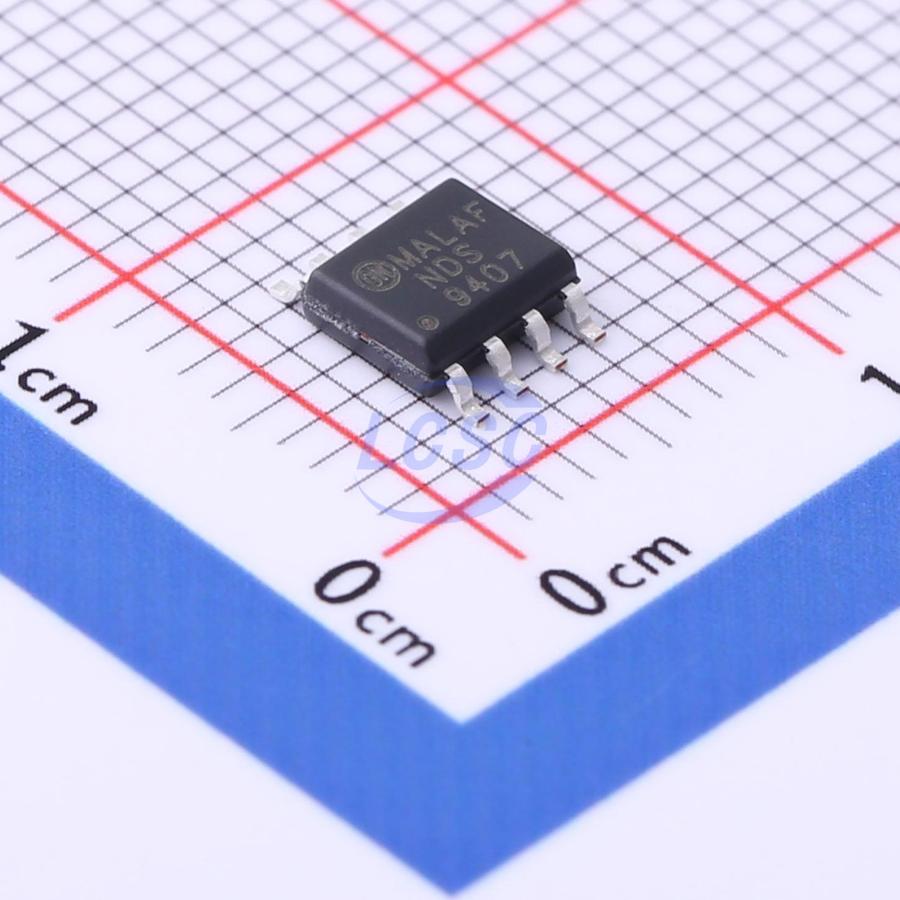

NDS9407
12W 60V 3A 240mΩ@4.5V 1 P-Channel P-Channel SO-8 Single FETs, MOSFETs RoHS
SO-8ROHS3 CompliantActive
60V, 3A, P-Channel MOSFET
- Manufacturer
- onsemi
- Manufacturer part #
- NDS9407
- Store part #
- C236919
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,191 in stock
#C236919
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.31 | ₹88.31 |
| 10+ | ₹73.12 | ₹731.20 |
| 30+ | ₹66.61 | ₹1,998.30 |
| 100+ | ₹58.37 | ₹5,837.00 |
| 500+ | ₹54.68 | ₹27,340.00 |
| 1,000+ | ₹52.51 | ₹52,510.00 |
1 × ₹88.31
₹88.31
excl. GST
₹104.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
NDS9407
₹88.31 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 86pF
- Ciss-Input Capacitance
- 732pF
- Pd - Power Dissipation
- 12W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 240mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.22 g
Overview
This P-channel MOSFET is fabricated using onsemi's advanced PowerTrench process, featuring a robust gate structure. It is optimized for power management applications requiring a wide range of gate drive voltage ratings (4.5V - 20V).
Applications
- Power Management - Load Switches - Battery Protection
Key features
- RDS(ON) = 240 mΩ (at VGS = -4.5 V)
- -3.0 A, -60 V, RDS(ON) = 150 mΩ (at VGS = -10 V)
- Low gate charge
- Fast switching speed
- High-performance trench technology for ultra-low RDS(ON)
- High power and current handling capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM4441PRL#C350657SPS · SOP-8 | SPS | SOP-8 | 20 | ₹29.82 · 20 in stock | View |
 | AO4441#C22199AOS · SOIC-8 | AOS | SOIC-8 | 56 | ₹51.50 · 56 in stock | View |
 | CMS5006B#C5203744Cmos · SOP-8 | Cmos | SOP-8 | 90 | ₹23.62 · 90 in stock | View |
 | SM4421PRL#C350656SPS · SOP-8 | SPS | SOP-8 | 10 | ₹42.32 · 10 in stock | View |
 | SI9407BDY-T1-GE3#C141567VISHAY · SO-8 | VISHAY | SO-8 | 47,360 | ₹48.81 · 47,360 in stock | View |
