HXY MOSFETDatasheet (PDF)

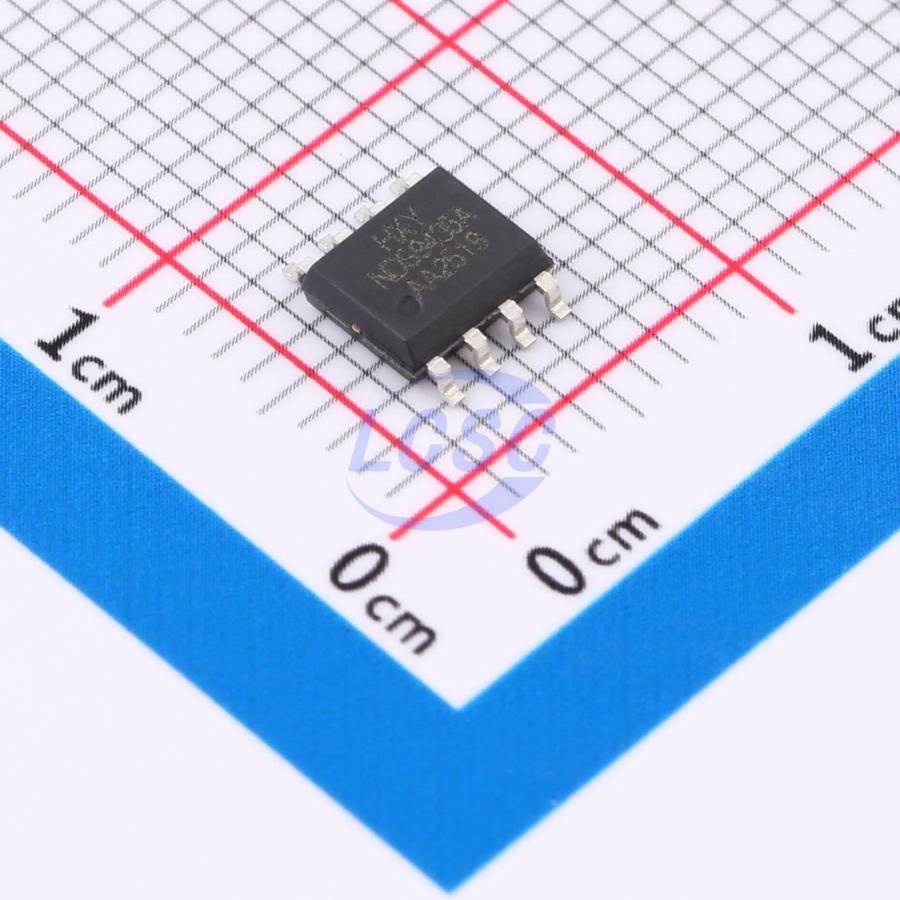

NDS9435A-HXY
P-Channel 30V 5.8A 2.5W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH 30V 5.8A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- NDS9435A-HXY
- Store part #
- C48996518
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C48996518
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.07 | ₹255.35 |
| 50+ | ₹40.21 | ₹2,010.50 |
| 150+ | ₹35.43 | ₹5,314.50 |
| 500+ | ₹29.56 | ₹14,780.00 |
| 3,000+ | ₹26.95 | ₹80,850.00 |
| 6,000+ | ₹25.43 | ₹1,52,580.00 |
5 × ₹51.07
₹255.35
excl. GST
₹301.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NDS9435A-HXY
₹255.35 for 5 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 5.8A
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 520pF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 70pF
- RDS(on)
- 43mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 11nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.134 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRF7205PBF-HXY#C20606276HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 20 | ₹27.69 · 20 in stock | View |
 | FDS9435A-HXY#C22367007HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 180 | ₹9.75 · 180 in stock | View |
 | ST9435A-HXY#C22367010HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 20 | ₹9.41 · 20 in stock | View |
 | FDFS2P753Z-HXY#C22367013HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 165 | ₹20.70 · 165 in stock | View |
 | AO4403-HXY#C22367014HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 5 | ₹13.60 · 5 in stock | View |
